Removal Procedure

  1. Front Floor Console Rear Trim Panel - Remove - Front Floor Console Rear Trim Panel Replacement
  2. Position both front seats to access the retainers.

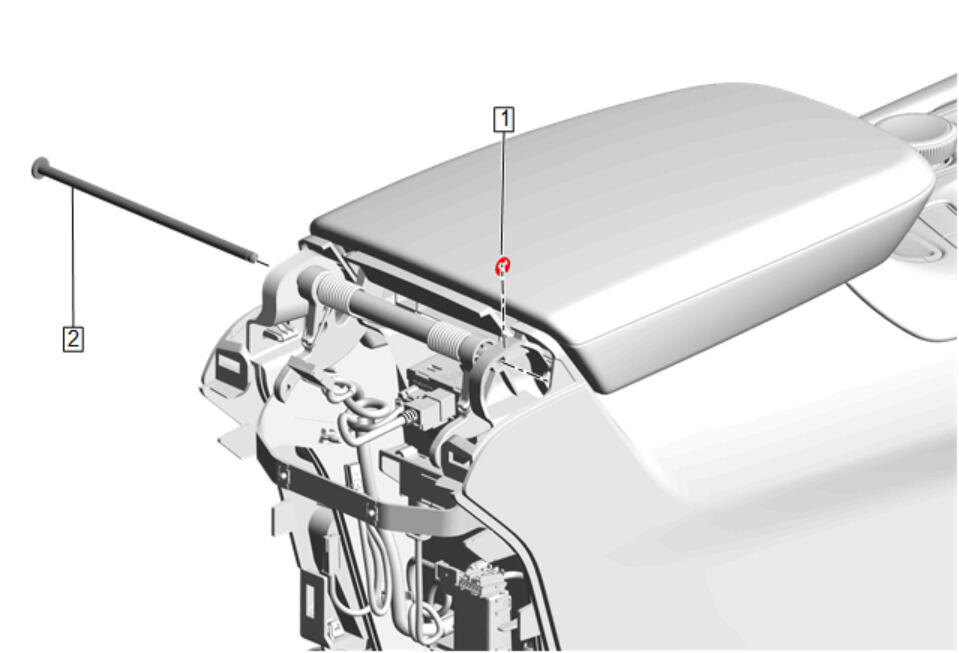

  3. GM5170119

    Use a suitable tool to release the front floor console compartment door hinge pin retainer (1) from the hinge pin (2).

  4. Remove the front floor console compartment door hinge pin (2) from the front floor console.

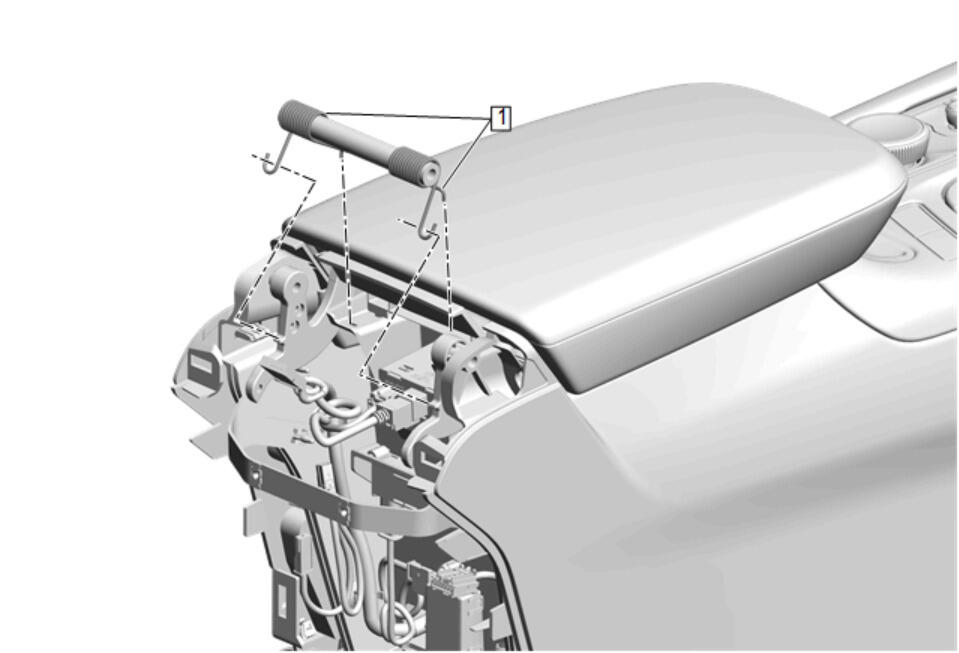

  5. GM5170121

    Use a suitable tool to release the ends of the front floor console armrest hinge spring (1) from the front floor console.

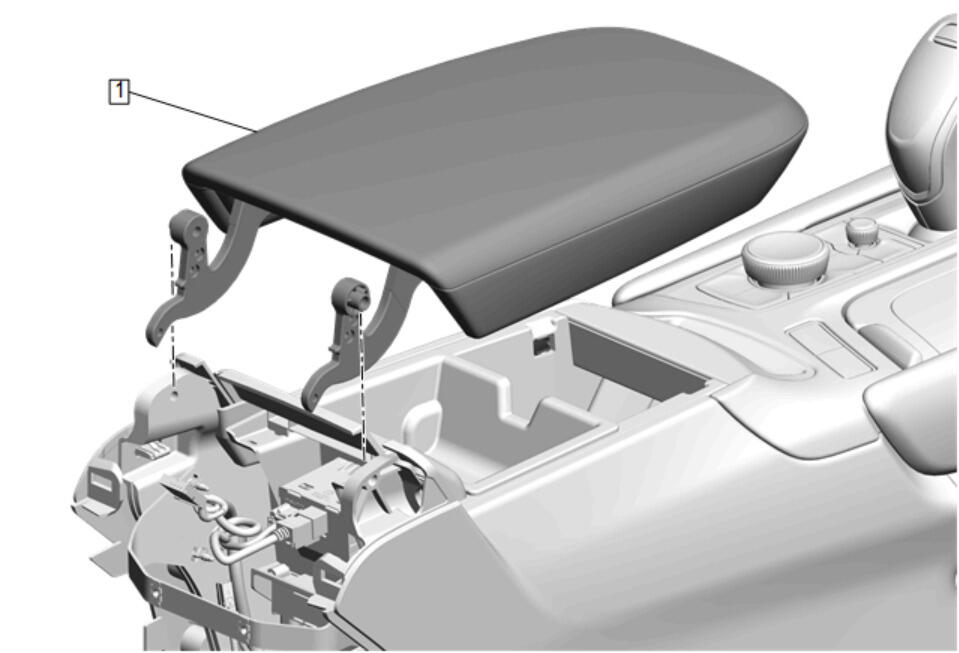

  6. GM5170122

    Remove the front floor console armrest (1) from the front floor console.
