Home >> Cadillac >> 2021 >> XT5 Sport >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Air Temperature, and Driver Information Center

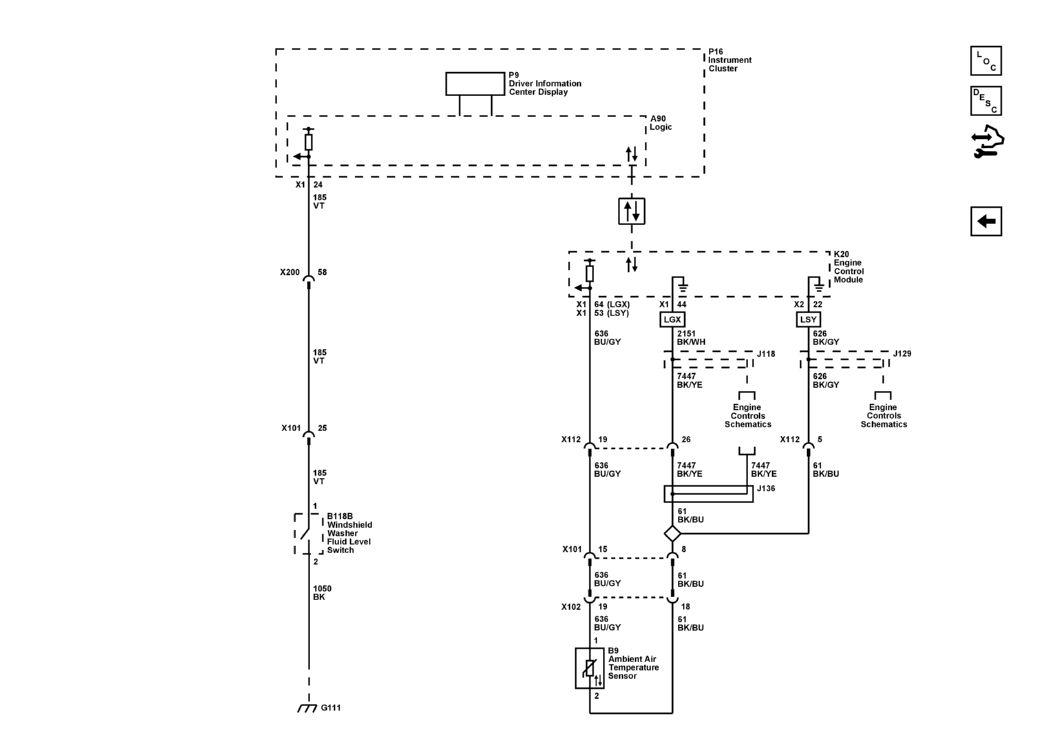

Air Temperature, and Driver Information Center

GM5462308
