Liftgate Trim Finish Panel Pull Cup Replacement

Courtesy of GENERAL MOTORS COMPANY

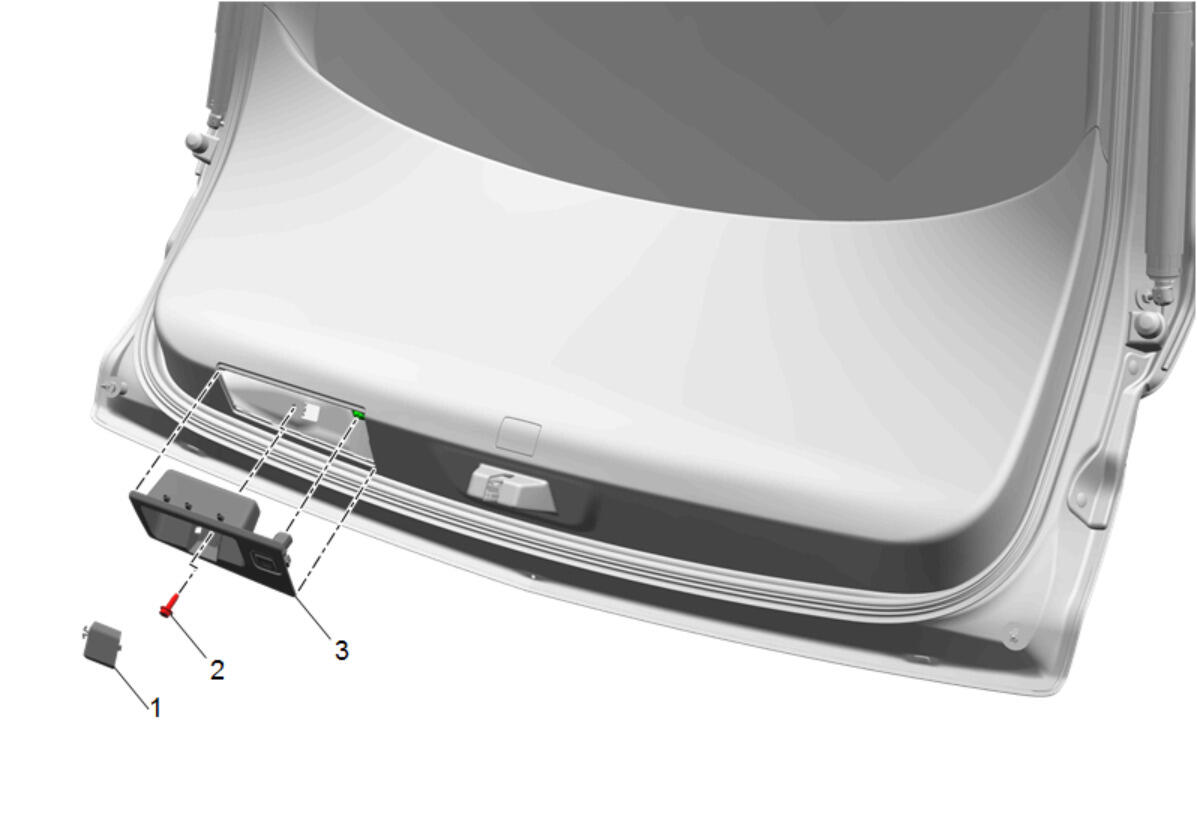

Callout	Component Name
1	Liftgate Pull Cup Cap
2	Liftgate Lower Trim Finish Panel Bolt CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
3	Liftgate Trim Finish Panel Pull Cup Procedure Use a flat-bladed plastic trim tool to aid in the removal of the liftgate trim finish panel pull cup. Disconnect the electrical connector.

Callout

Component Name

Liftgate Pull Cup Cap

Liftgate Lower Trim Finish Panel Bolt

CAUTION:

Tighten
4 N.m (35 lb in)

Liftgate Trim Finish Panel Pull Cup

Procedure

Use a flat-bladed plastic trim tool to aid in the removal of the liftgate trim finish panel pull cup.
Disconnect the electrical connector.
