Rear Side Door Weatherstrip Replacement - Body Side

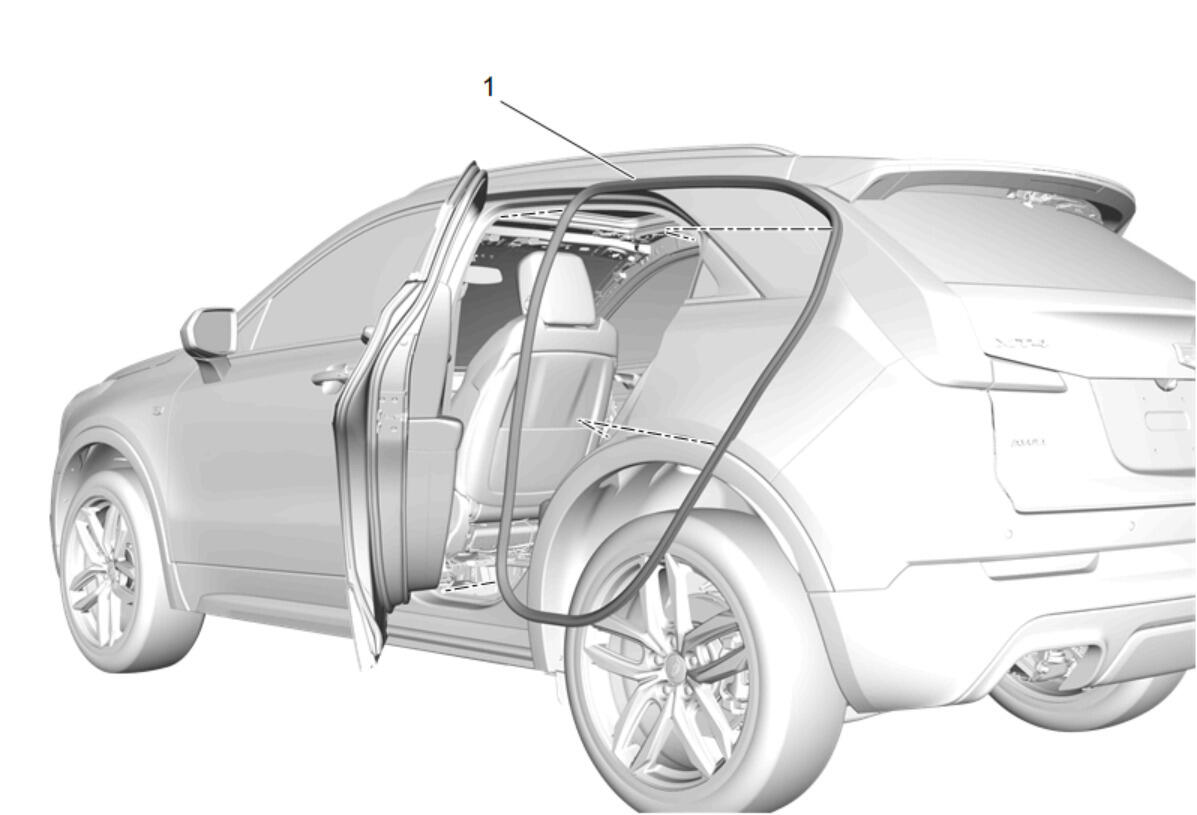

Rear Side Door Weatherstrip Replacement - Body Side
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Rear Side Door Weatherstrip - Body Side
Procedure
Start at the front upper corner of the door opening and pull the weatherstrip away from the door opening flange.
Ensure that the weatherstrip is seated on the entire door opening flange.
