Liftgate Wiring Harness Replacement: Notes

Removal Procedure

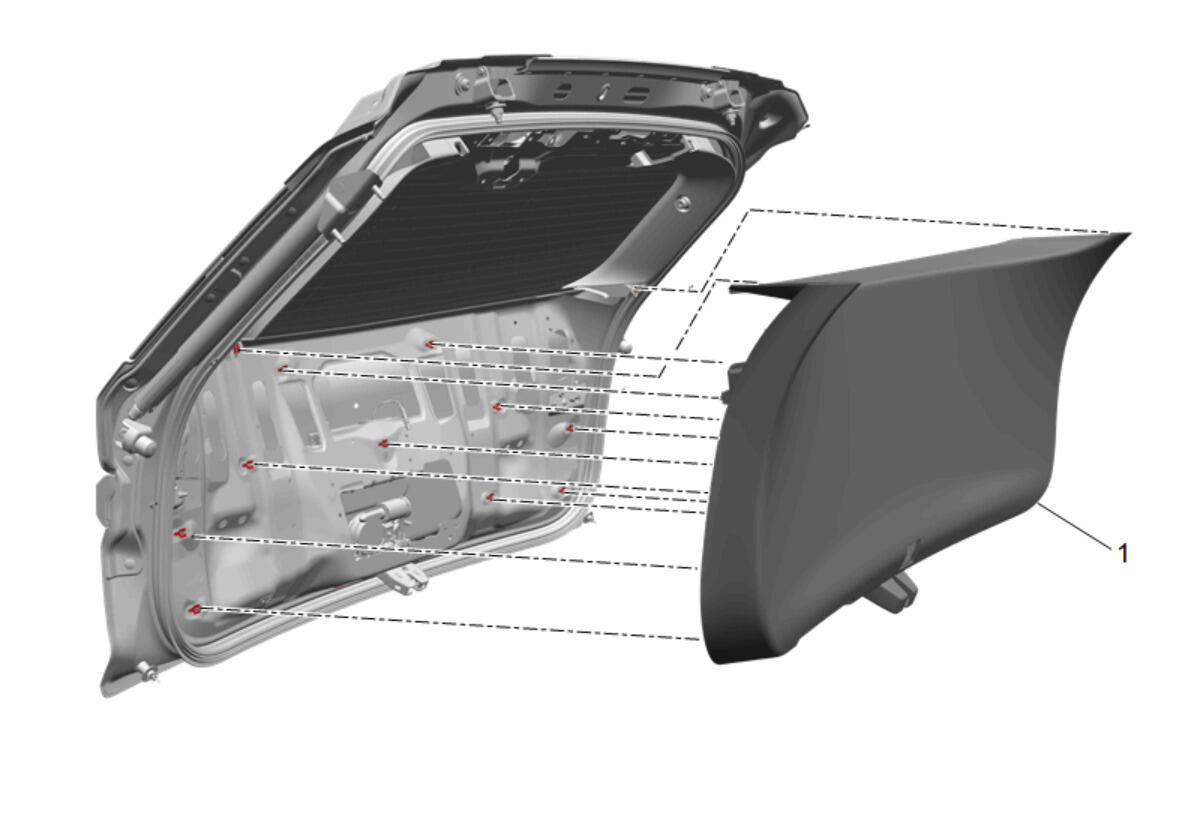

1. Courtesy of GENERAL MOTORS COMPANY

   Liftgate Lower Trim Finish Panel (1) - Remove - Liftgate Lower Trim Finish Panel Replacement

2. Courtesy of GENERAL MOTORS COMPANY

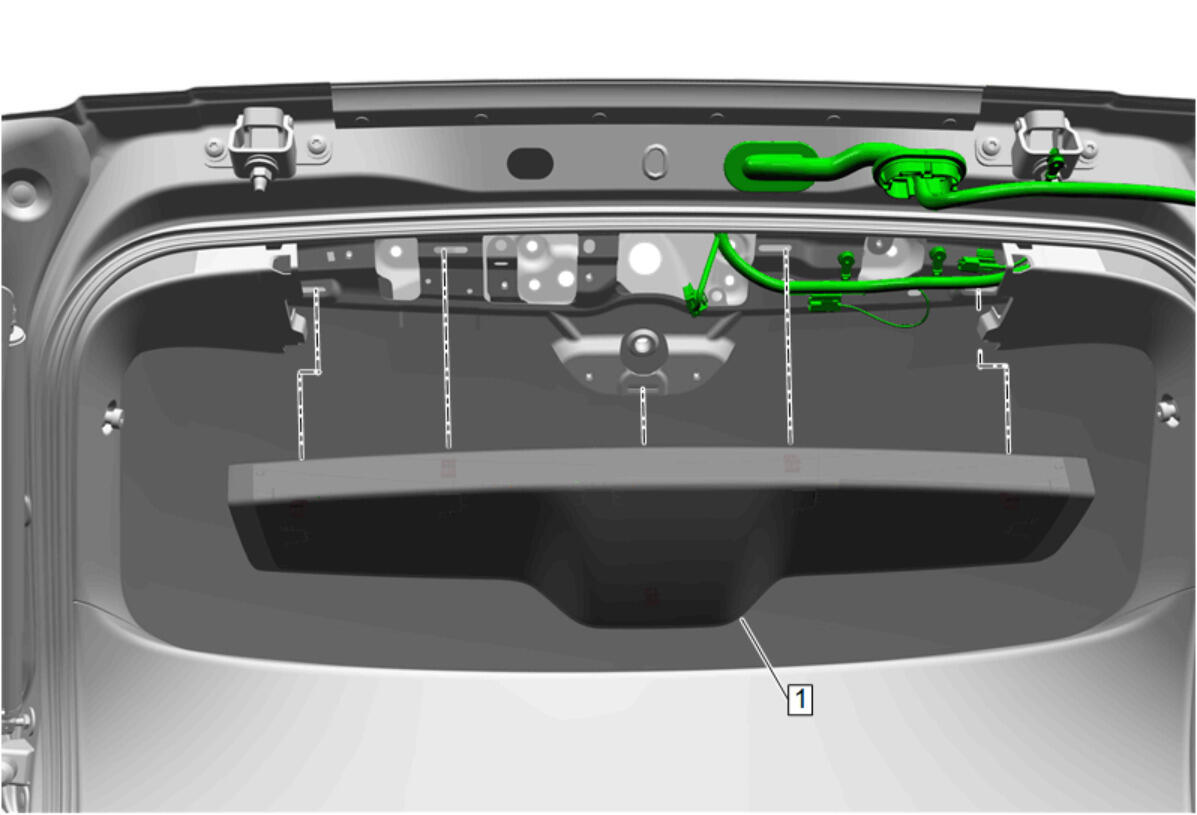

   Liftgate Upper Center Trim Finish Panel (1) - Remove - Liftgate Upper Center Trim Finish Panel Replacement

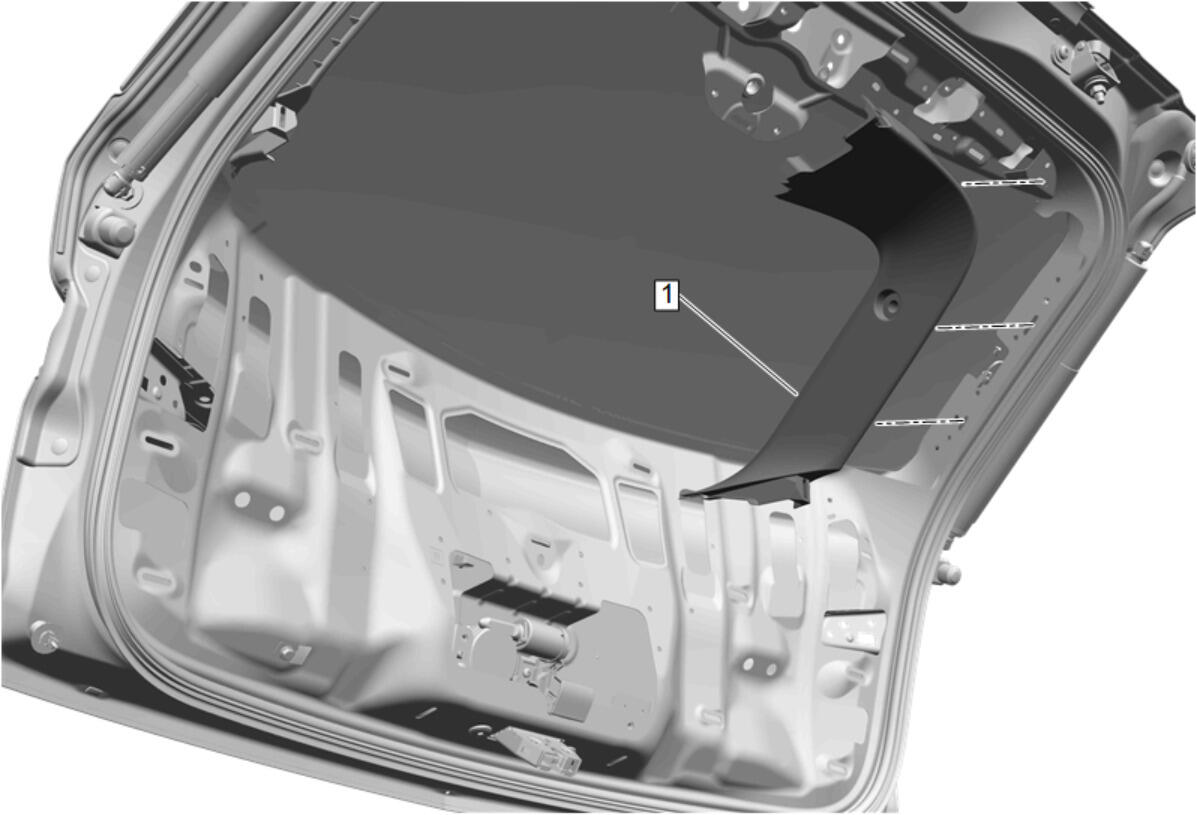

3. Courtesy of GENERAL MOTORS COMPANY

   Liftgate Upper Side Trim Finish Panel (1) - Remove - Liftgate Upper Side Trim Finish Panel Replacement

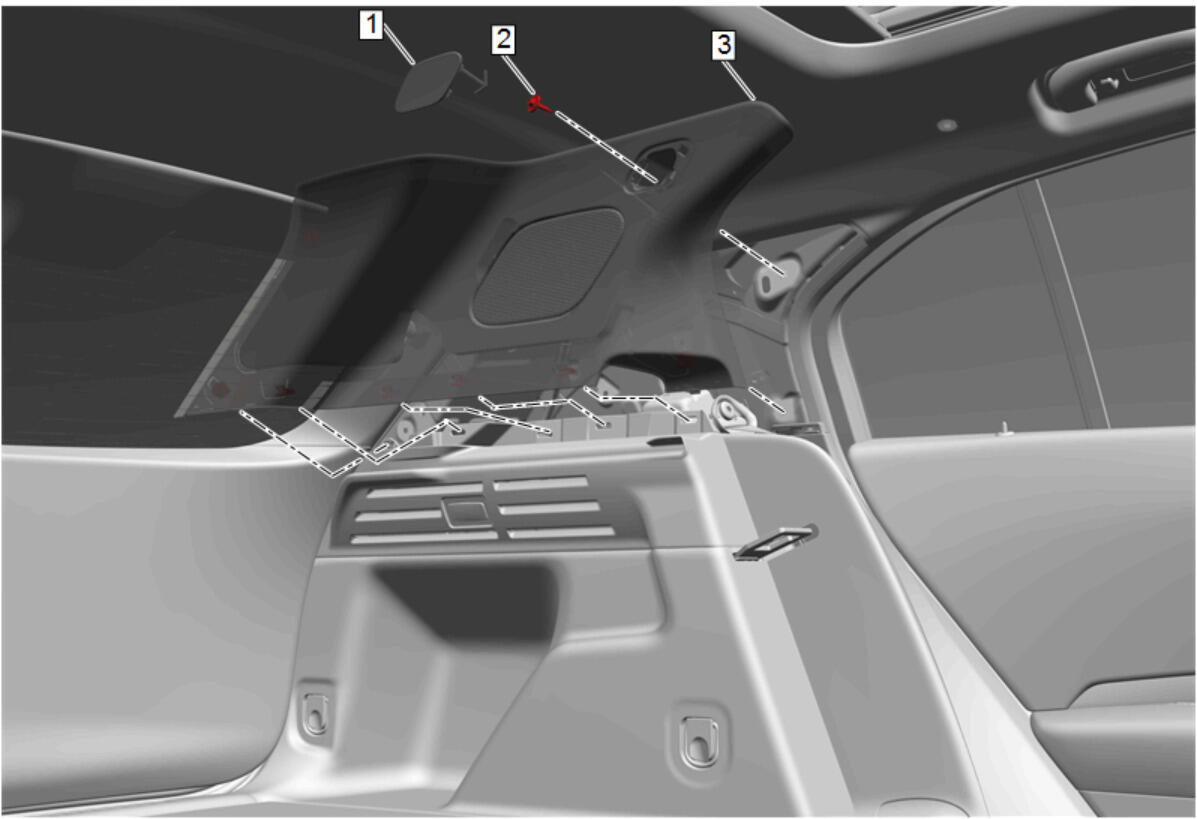

4. Courtesy of GENERAL MOTORS COMPANY

   Quarter Upper Trim Panel (3) - Remove - Quarter Upper Trim Panel Replacement

5. Quarter Lower Rear Trim Finish Panel - Remove - Quarter Lower Rear Trim Panel Replacement
6. Lower the rear of the headliner to access the grommet. Headlining Trim Panel Replacement (With C3U) , or Headlining Trim Panel Replacement (Without C3U)

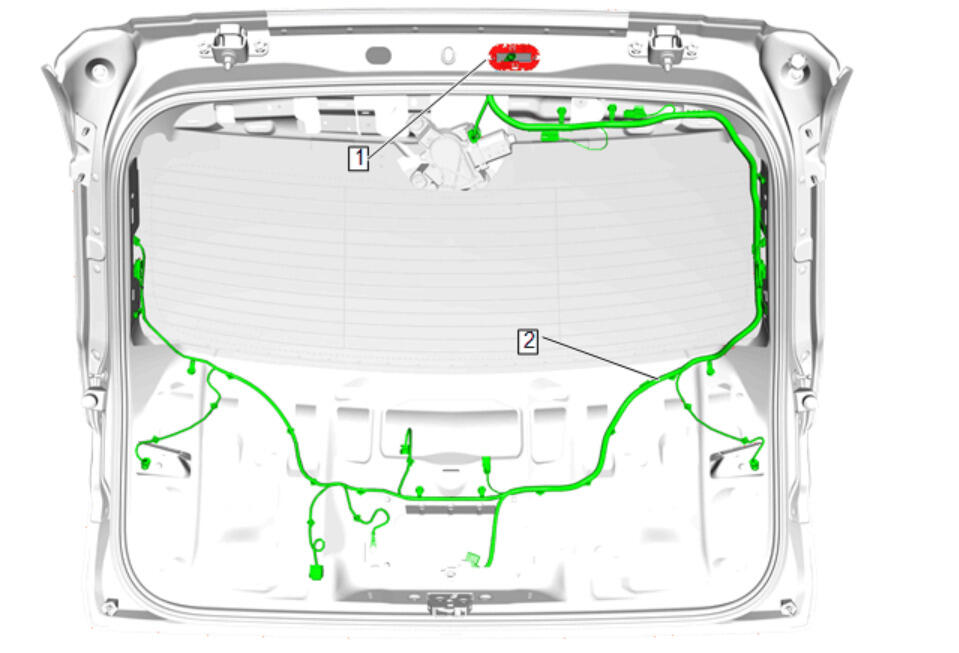

7. Courtesy of GENERAL MOTORS COMPANY

   Release the liftgate wiring harness grommet (1) from the liftgate.

8. Disconnect all the connectors of the liftgate wiring harness (2).

9. Courtesy of GENERAL MOTORS COMPANY

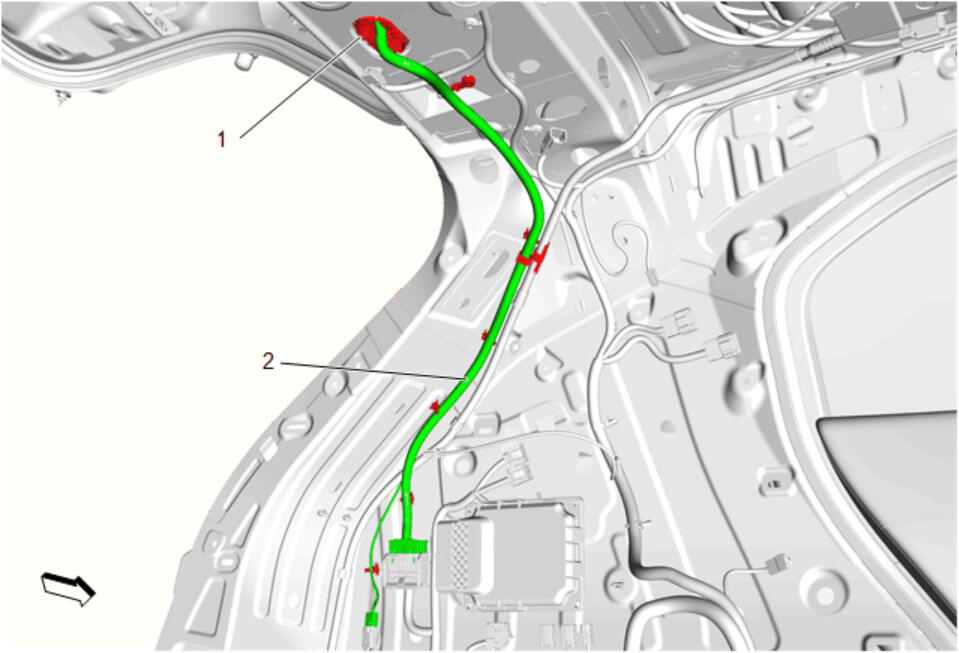

   Release the liftgate wiring harness grommet (1) from the roof panel.

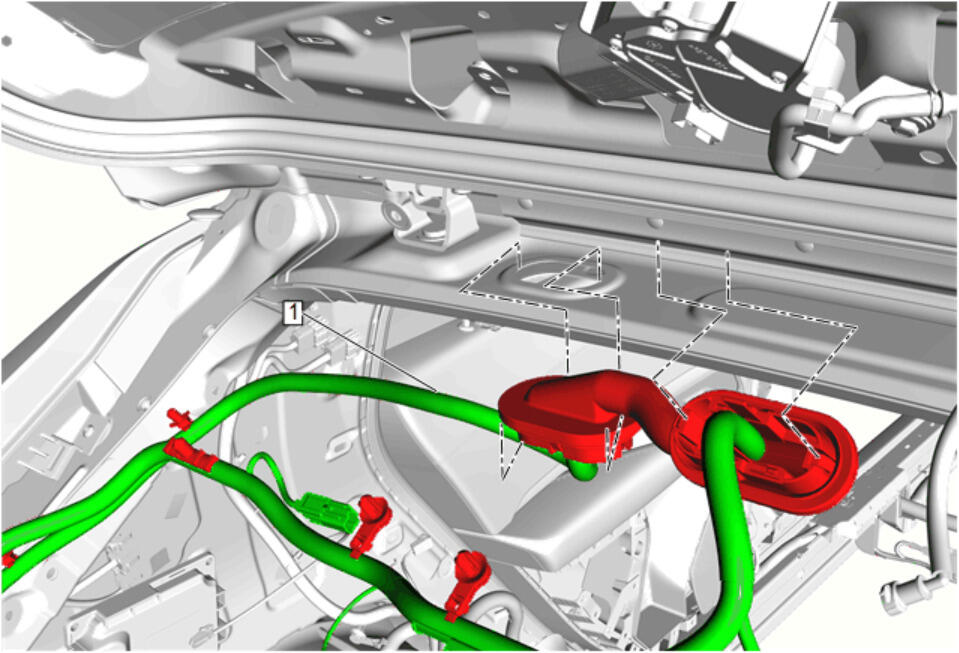

10. Courtesy of GENERAL MOTORS COMPANY

    Pull the liftgate wiring harness (1) out of the liftgate grommet opening and the roof panel grommet opening.
