Hood Primary Latch Release Cable Replacement: Notes

Removal Procedure

1. Courtesy of GENERAL MOTORS COMPANY

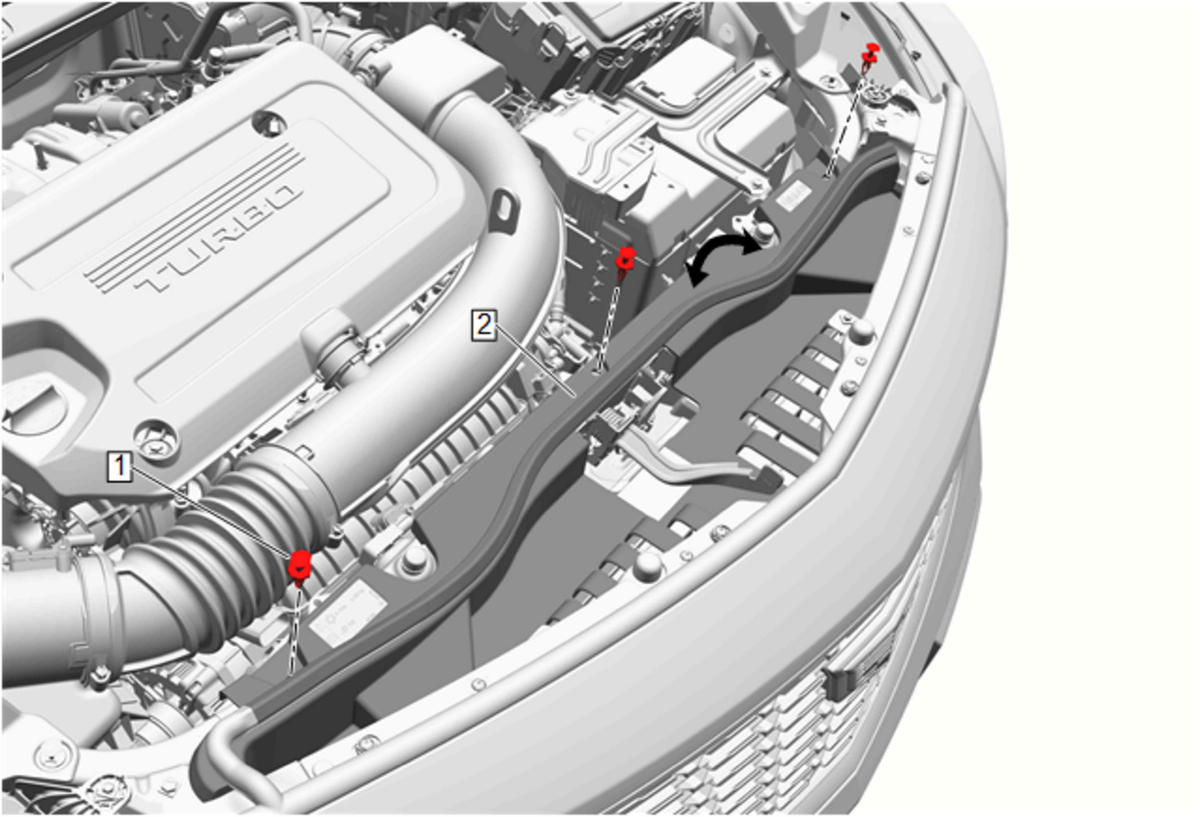

   Release the 3 top retainers (1), pull up on the intake air splash shield (2) to access the hood primary latch release cable.

2. Courtesy of GENERAL MOTORS COMPANY

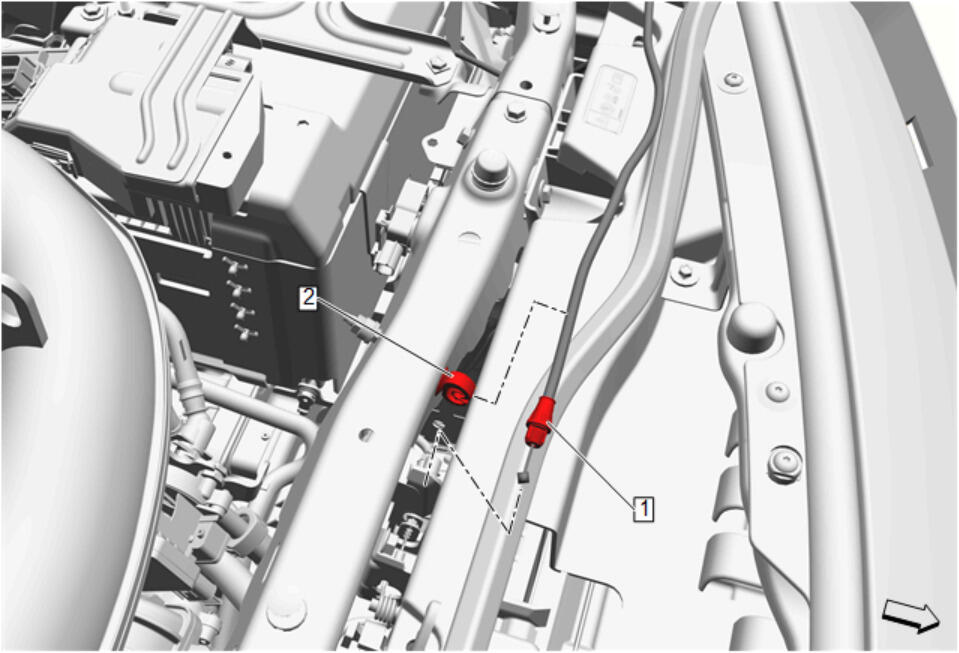

   Disconnect the cable end retainer (1) from the latch.

3. Release the hood primary latch release cable from the retainer (2).

4. Courtesy of GENERAL MOTORS COMPANY

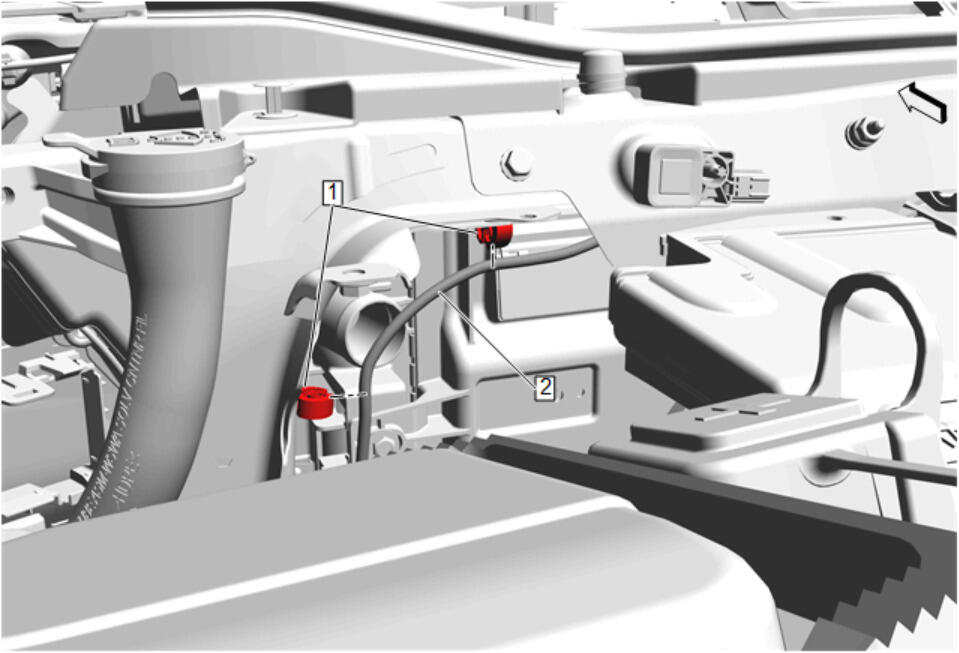

   Disconnect the cable (2) from the 2 retainers (1) from under the upper tie bar.

5. Courtesy of GENERAL MOTORS COMPANY

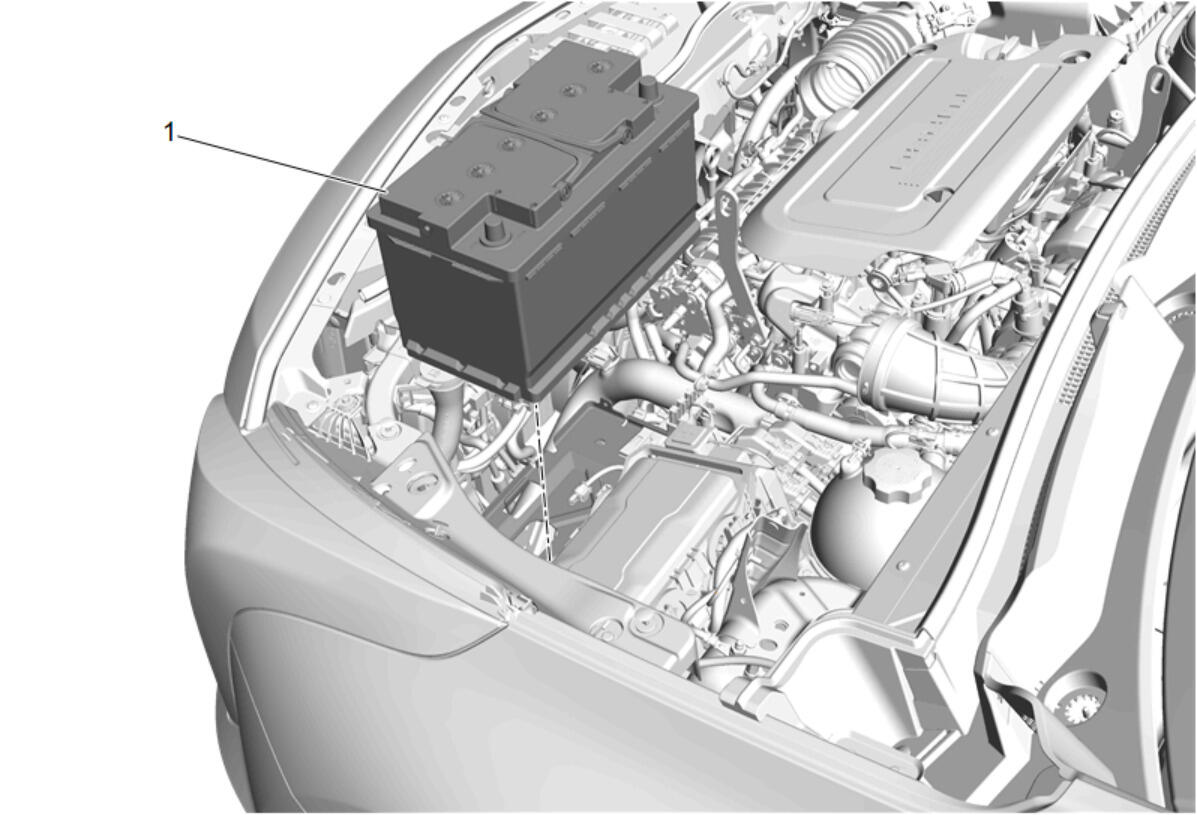

   Remove the battery (1) to gain access to the hood primary latch release cable retainer. Battery Replacement

6. Courtesy of GENERAL MOTORS COMPANY

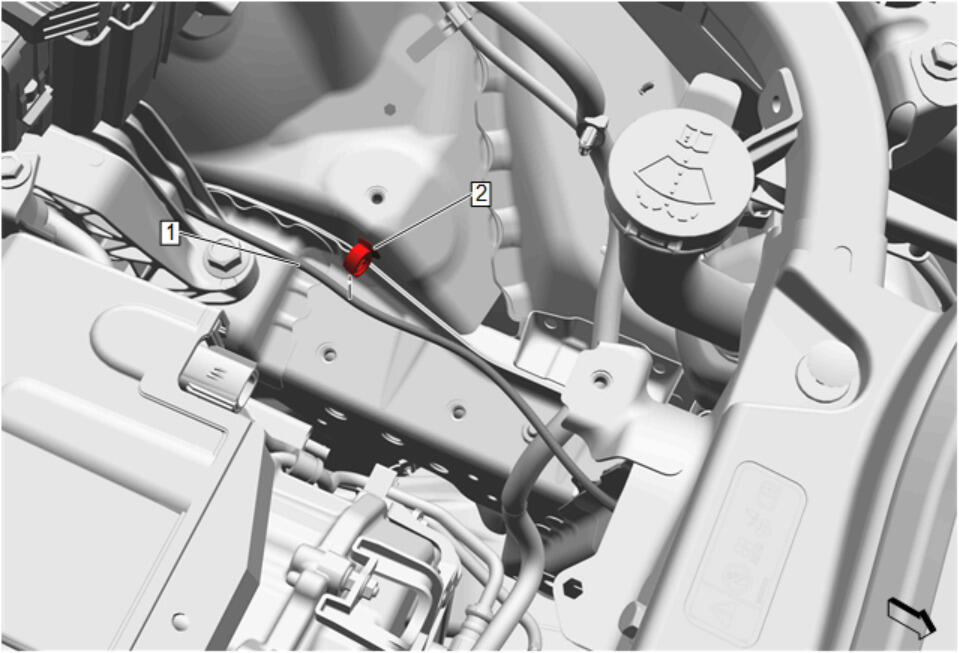

   Disconnect the hood primary latch release cable (1) from the retainer (2) under the battery.

7. Courtesy of GENERAL MOTORS COMPANY

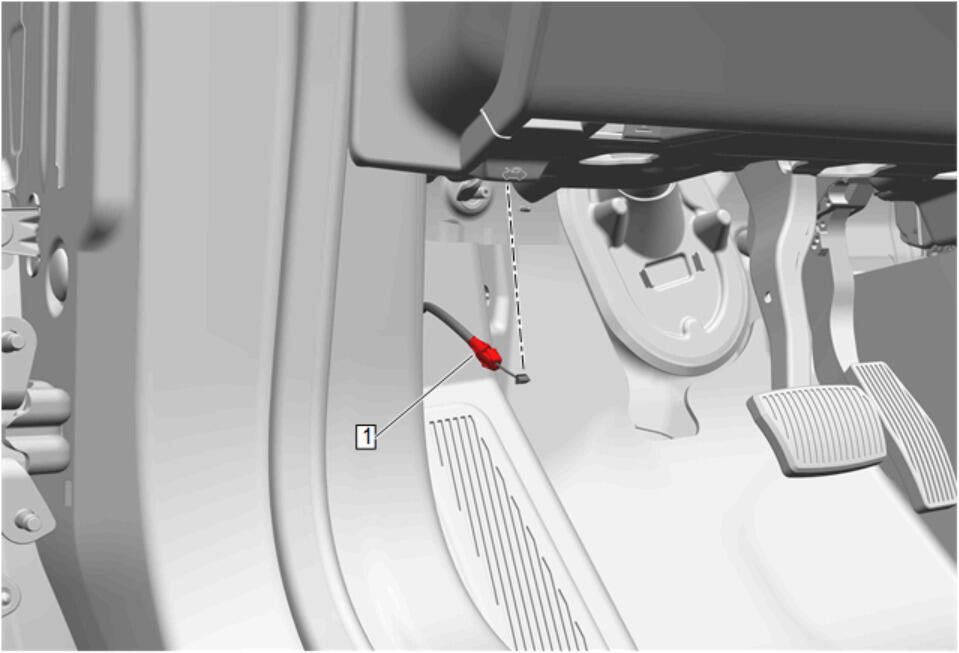

   Disconnect the hood primary latch release cable end retainer (1) from the inside handle.

8. Courtesy of GENERAL MOTORS COMPANY

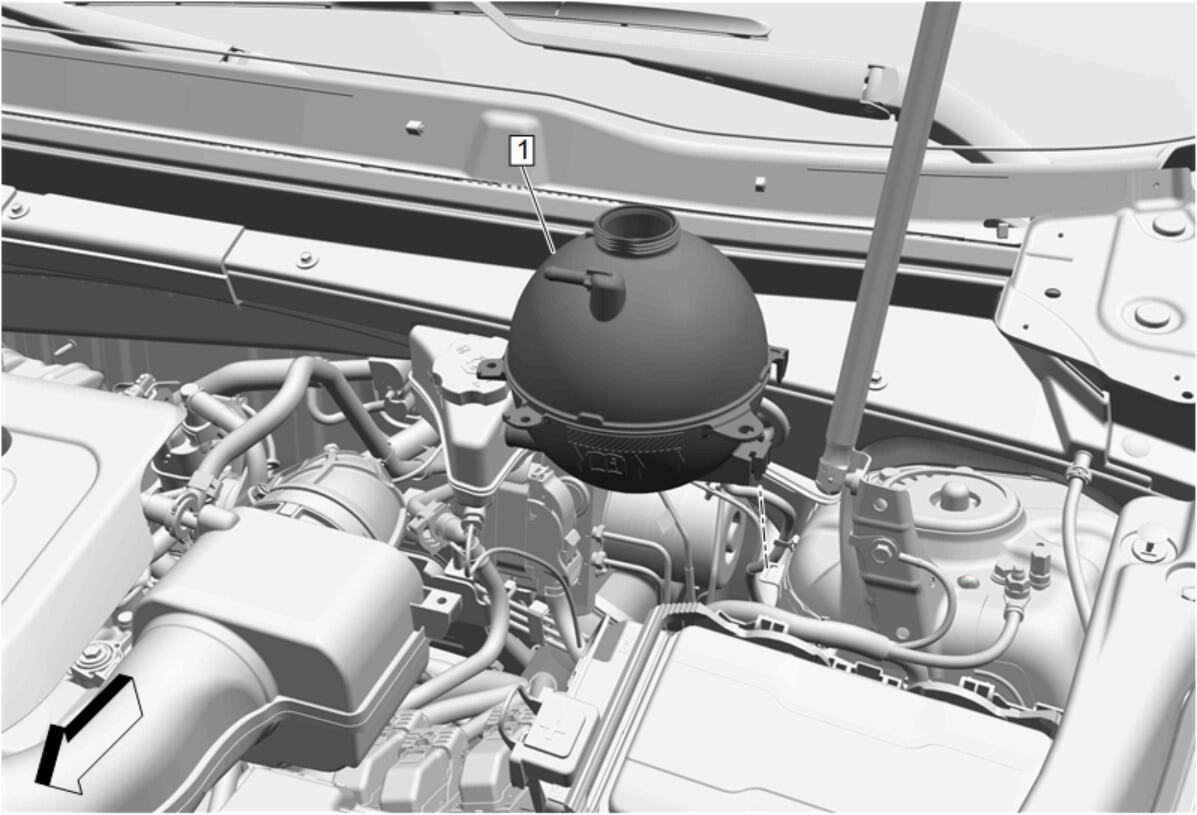

   Remove the radiator surge tank (1) to gain access the hood primary latch release cable grommet. Radiator Surge Tank Replacement

9. Courtesy of GENERAL MOTORS COMPANY

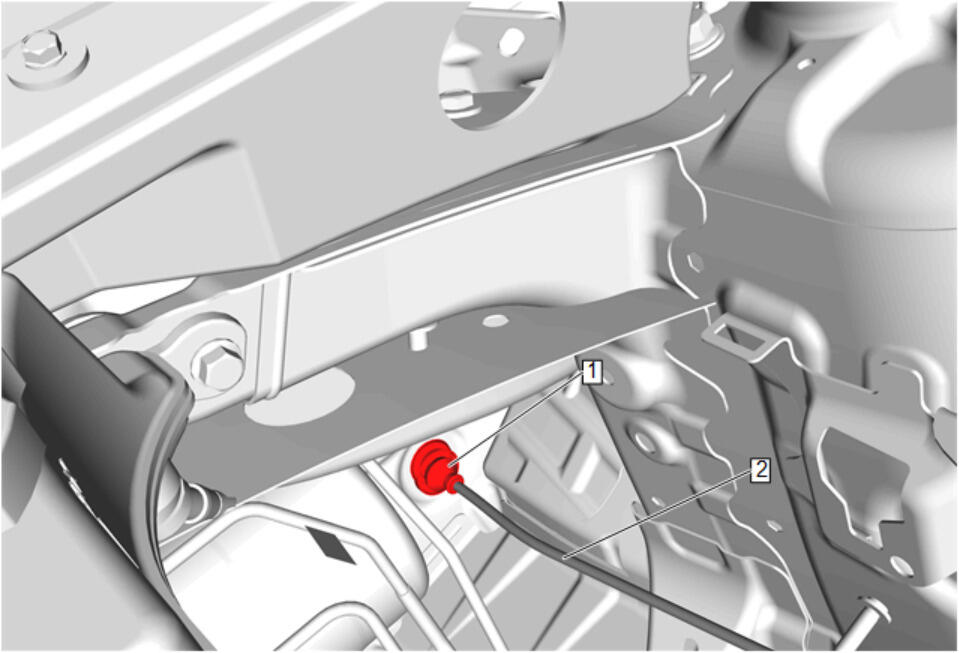

   Disconnect the hood primary latch release cable grommet (1) from the dash panel.

10. Attach mechanics wire to the hood primary latch release cable (2) and pull the cable out.
