Airbag Front End Discriminating Sensor Protector Replacement

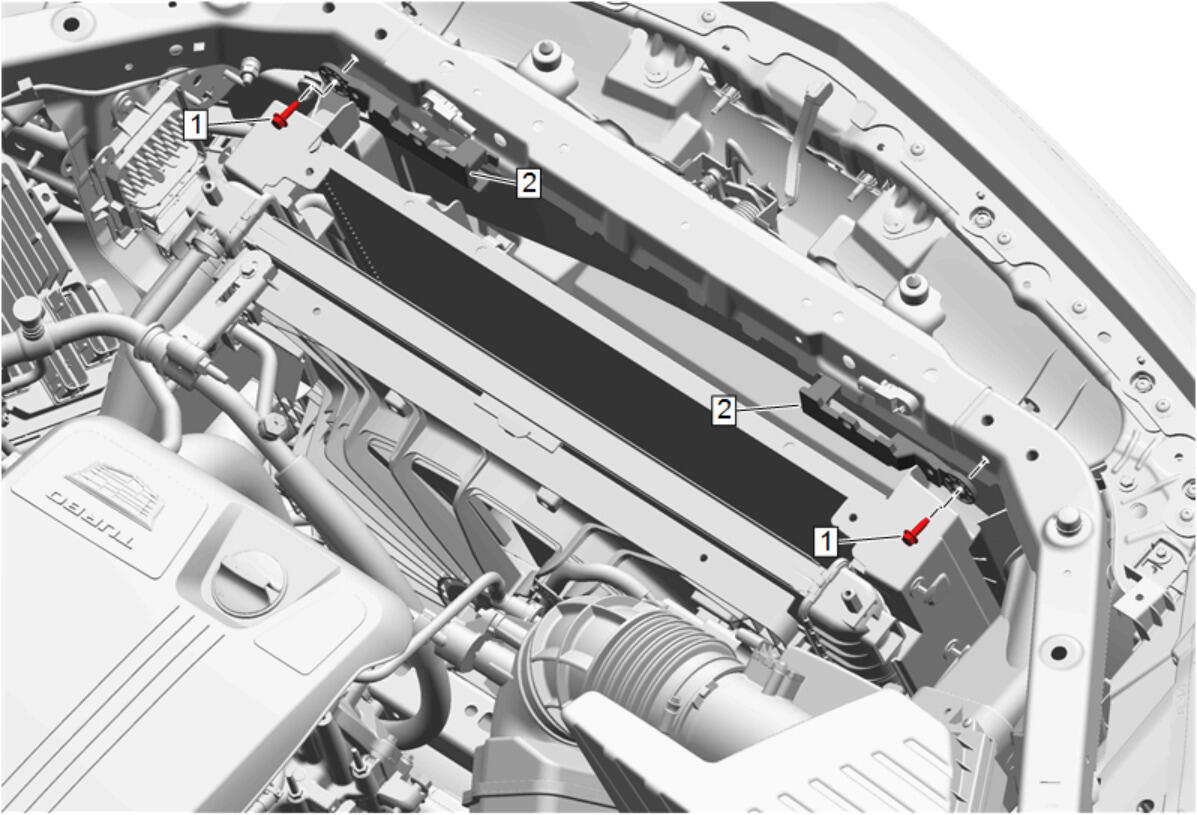

Airbag Front End Discriminating Sensor Protector Replacement
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Radiator Air Upper Baffle Replacement (LSY)
, or
Radiator Air Upper Baffle Replacement (LGY)
Radiator Upper Bracket Replacement - Left Side
Radiator Upper Bracket Replacement - Right Side
1
Airbag Front End Discriminating Sensor Bolt [ 2x ]
CAUTION:
Fastener Caution
Tighten
9 N.m (80 lb/in)
2
Airbag Front End Discriminating Sensor Protector [ 2x ]
