Instrument Panel Trim Plate Applique Replacement

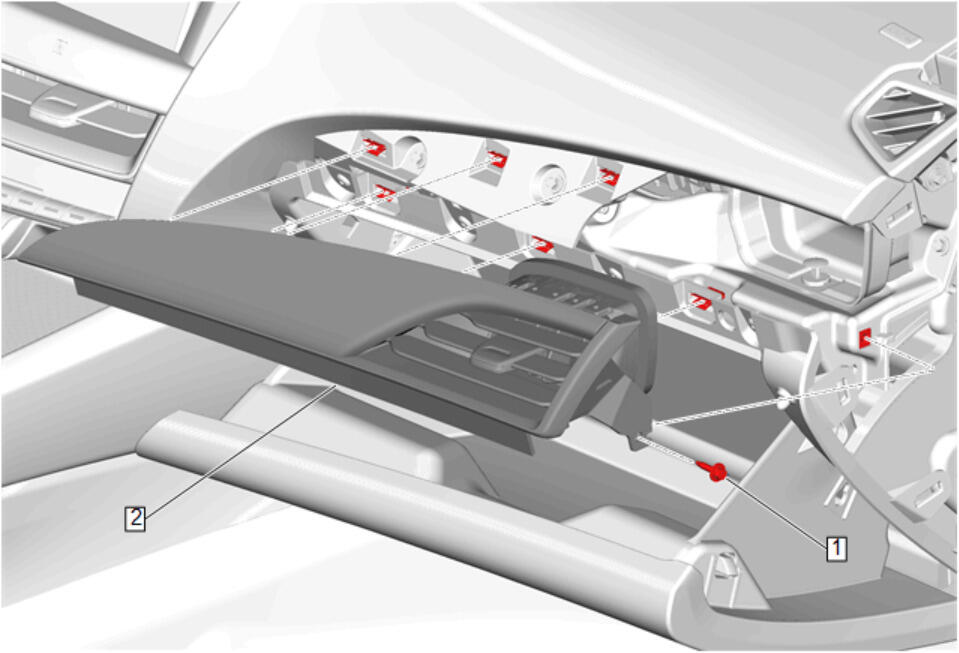

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the right instrument panel outer trim cover. Instrument Panel Outer Trim Cover Replacement |
|
| 1 | Instrument Panel Accessory Bezel Bolt
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Instrument Panel Trim Plate Applique Procedure Using a flat-bladed plastic trim tool, release the retaining clips. |
