Installation Procedure

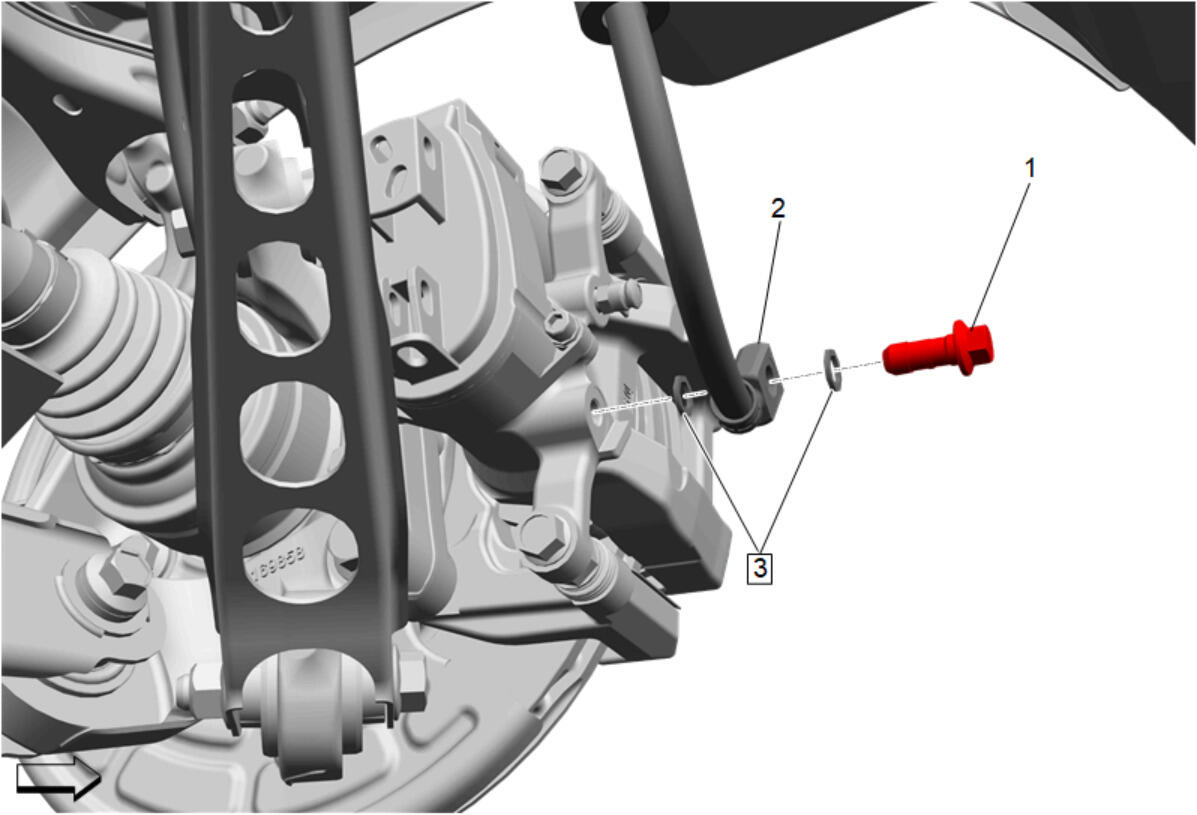

Rear Brake Hose Fitting Gasket (3) - Install NEW [ 2x ]
- Remove the plug from the caliper inlet.
- Rear Brake Hose (2) - Install
- Brake Hose Fitting Bolt (1) - Install and tighten 40 N.m (30 lb ft)
Brake Hose Retainer (2) - Install
- Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Bleed the brake system. Hydraulic Brake System Bleeding (JL9) , or Hydraulic Brake System Bleeding (J56)
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
CAUTION:
