Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Without separating the engine from the transmission, remove the powertrain.
- For LSY engine, refer to Engine Replacement .
- For LGY engine, refer to Engine Replacement (AWD) , or Engine Replacement (RWD) .

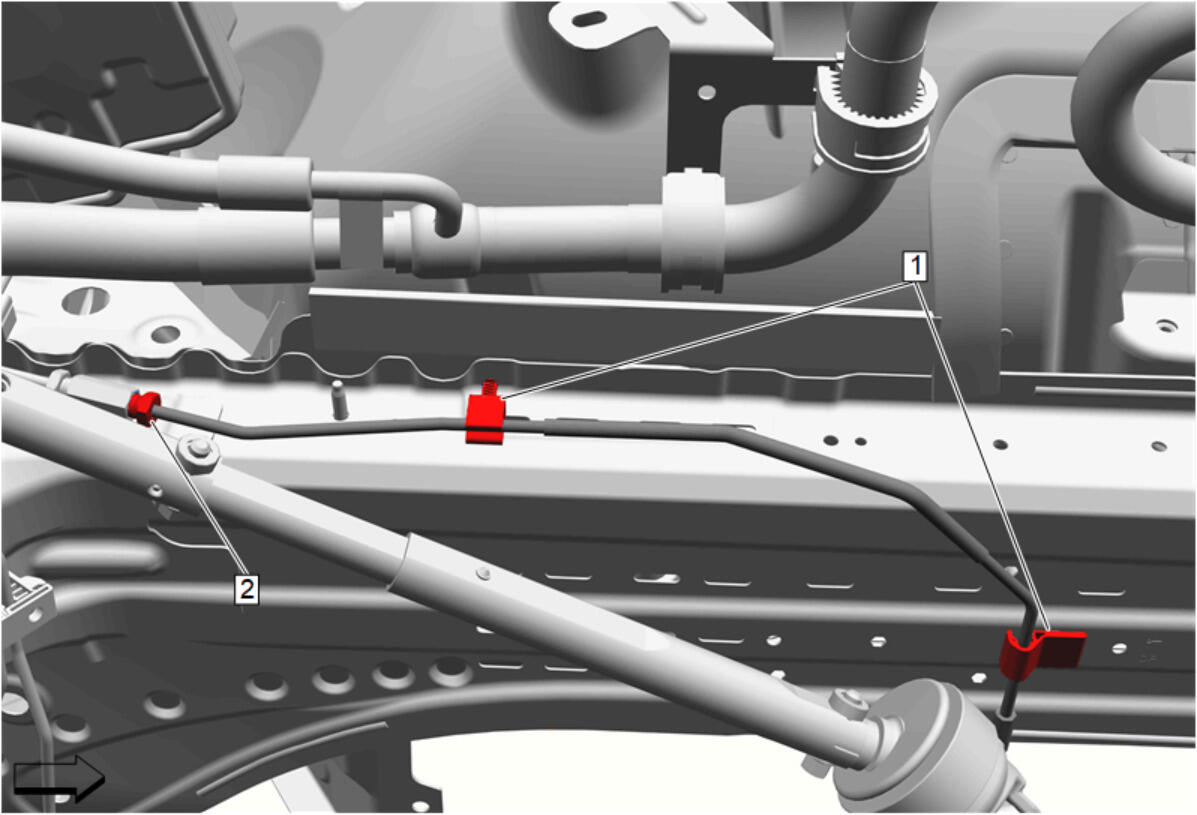

Brake Pipe Retainer (1) - Release [ 2x ]
- Brake Pipe Fitting (2) - Disconnect
- Plug the brake pressure modulator valve pipe to prevent brake fluid loss and contamination.

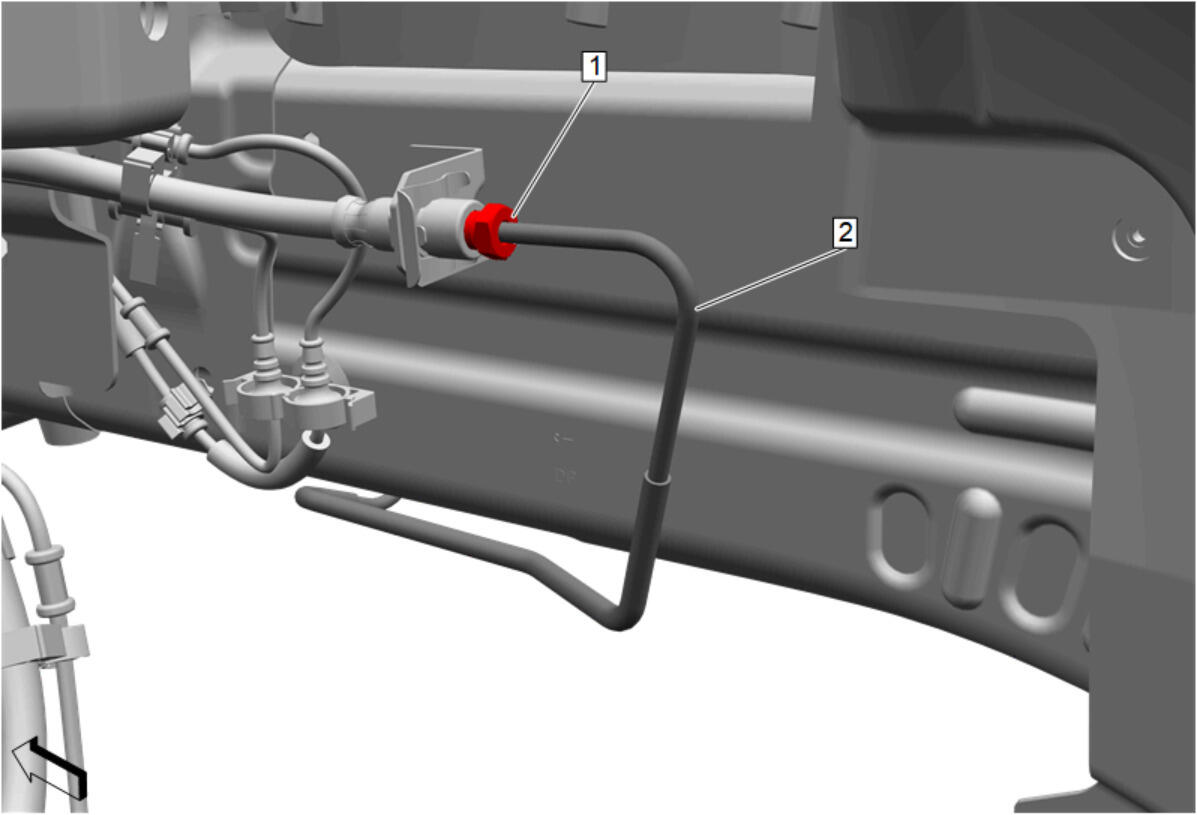

Brake Pipe Fitting (1) - Disconnect
- Cap the brake hose inlet fitting to prevent brake fluid loss and contamination.
- Brake Pipe (2) - Remove
