Installation Procedure

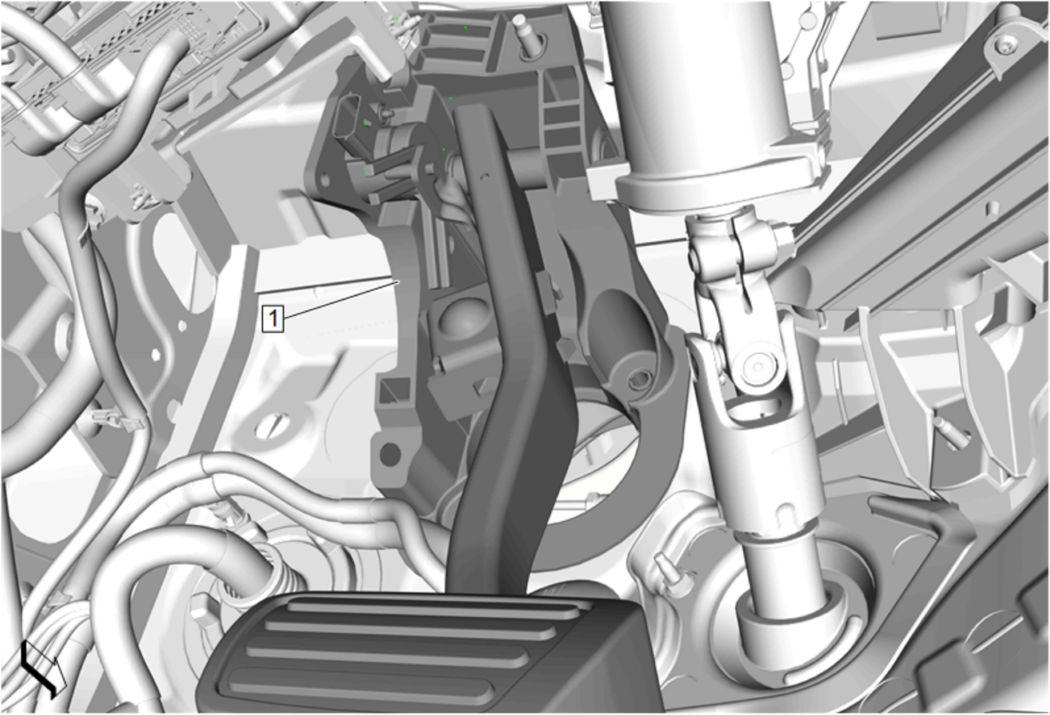

Brake Pedal Assembly (1) - Install
- CAUTION:

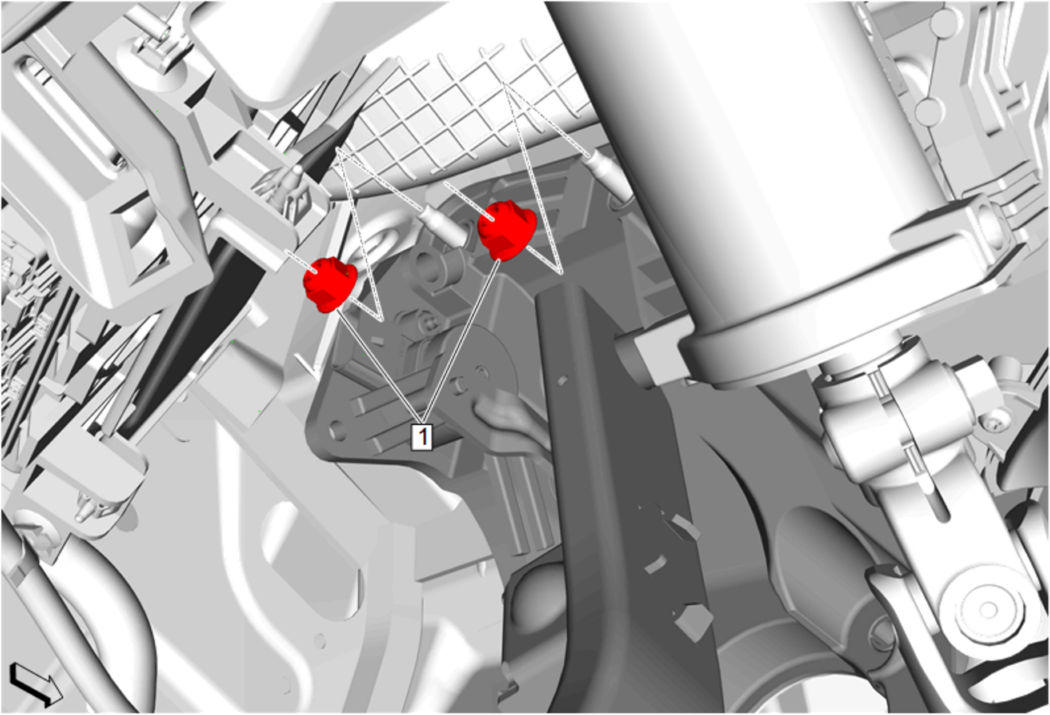

Brake Pedal Nut (1) - Install and tighten [ 2x ] 25 N.m (18 lb ft)

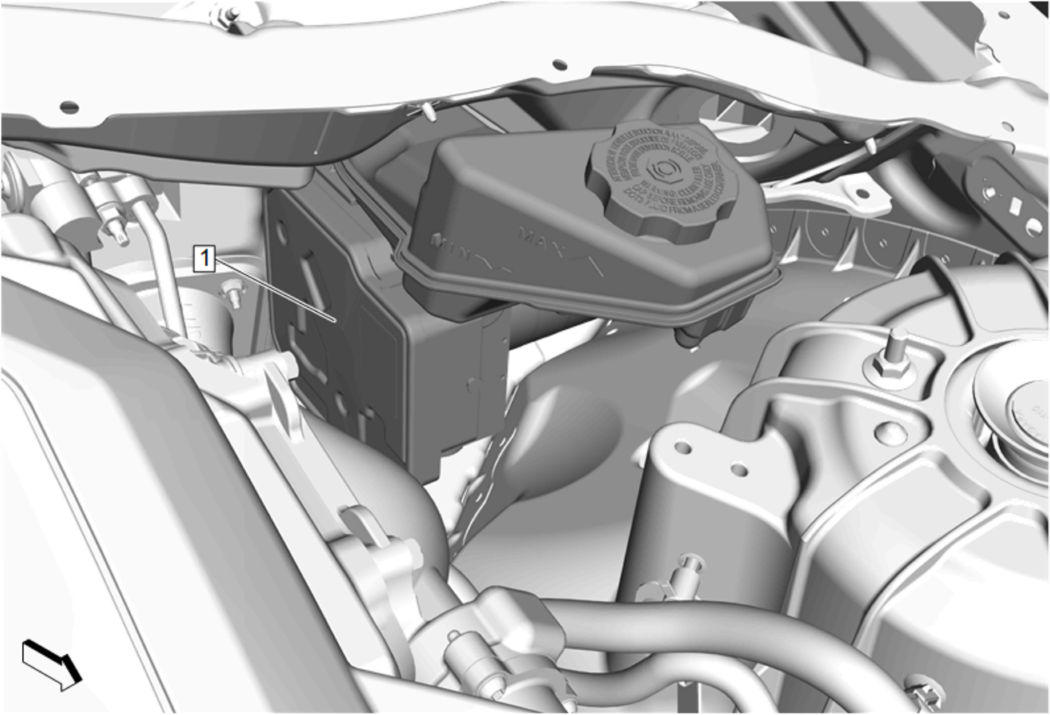

Brake Master Cylinder (1) - Install - Brake Master Cylinder Replacement - With Power Brake Booster and Electronic Brake Control Module

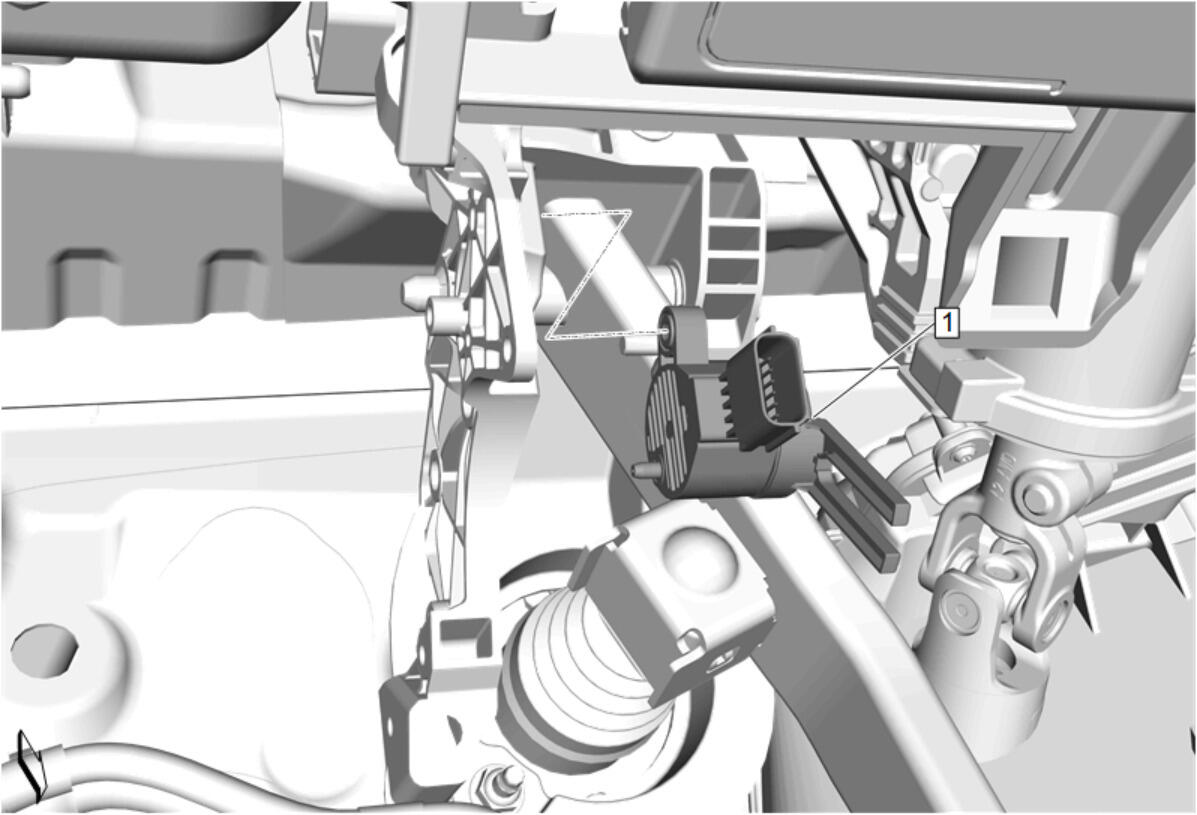

Brake Pedal Position Sensor (1) - Install - Brake Pedal Position Sensor Replacement

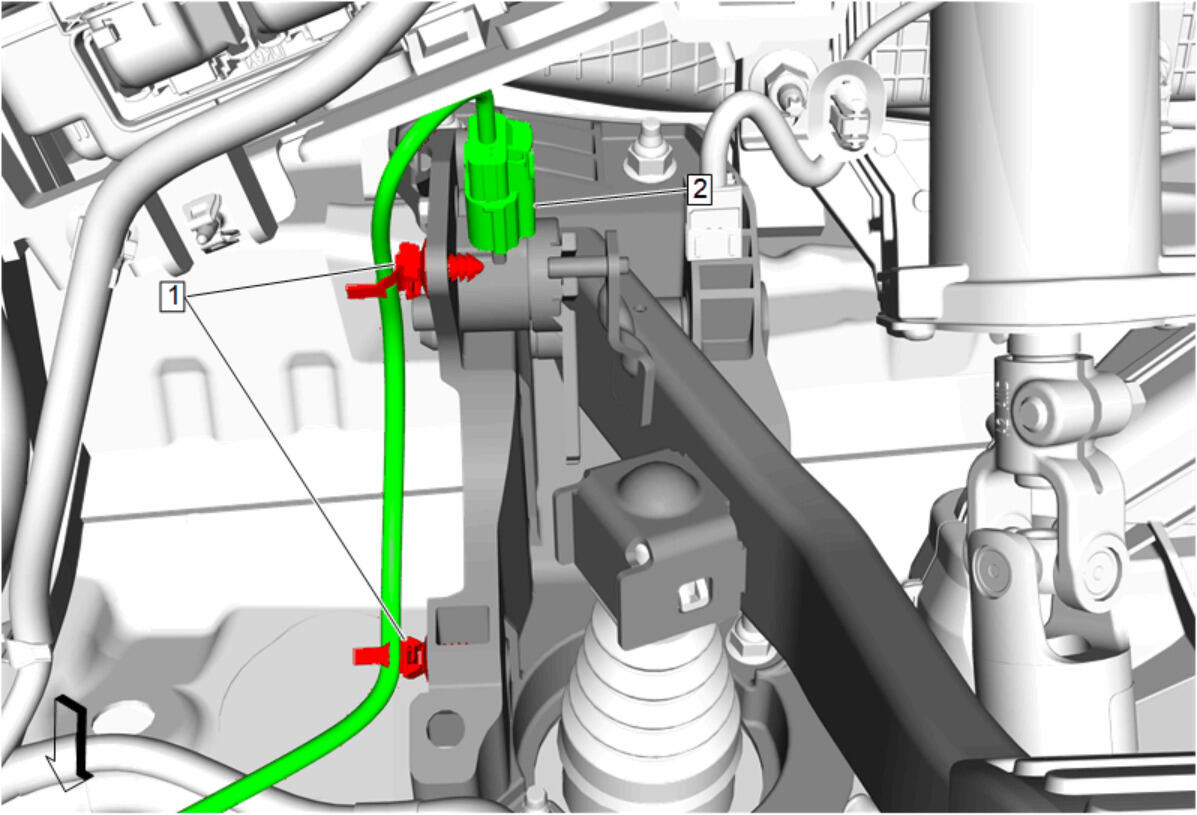

Electrical Connector (2) - Connect
- Fastener (1) - Secure [ 2x ]
- Instrument Panel Lower Trim Panel Insulator - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Bleed the brake system. Hydraulic Brake System Bleeding (JL9) , or Hydraulic Brake System Bleeding (J56)
- Check for brake system leaks.
