Rear Compartment Lid Inner Panel Trim Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Compartment Lid Latch Cover Replacement Rear Compartment Lid Inside Handle Replacement

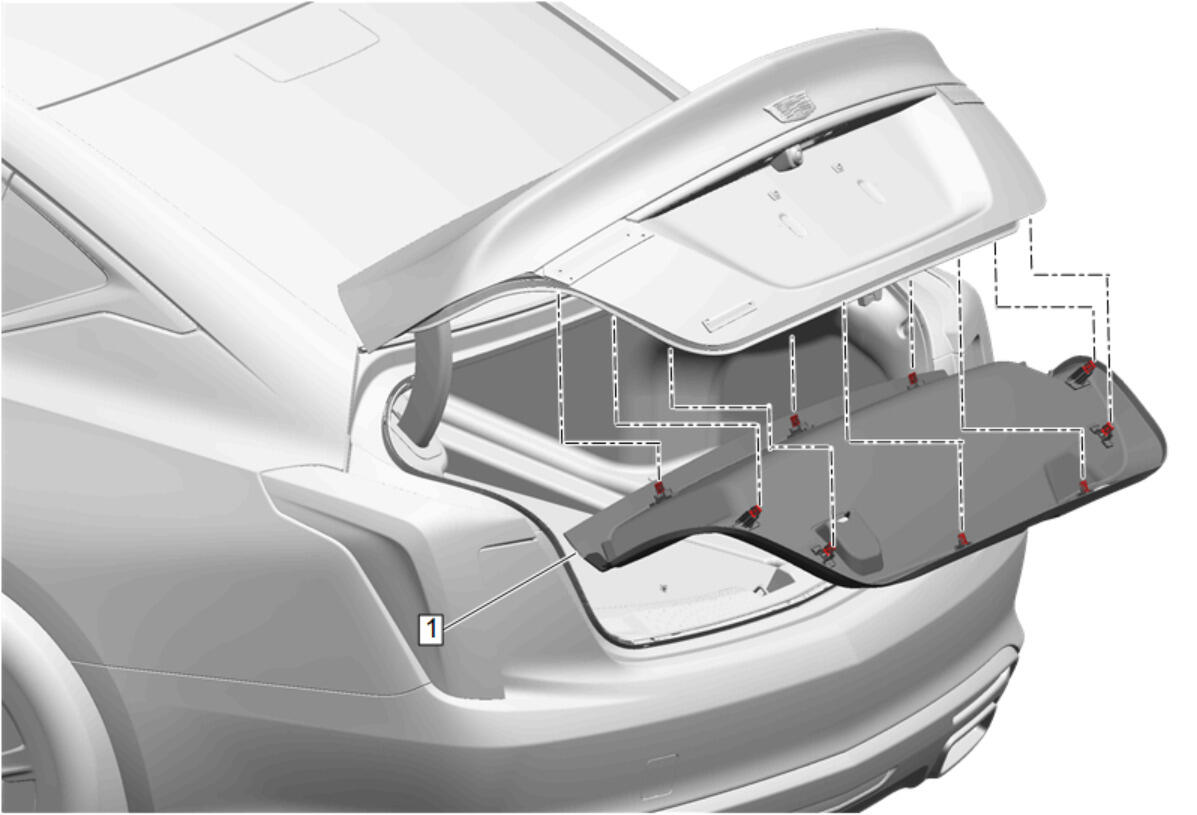

1	Rear Compartment Lid Inner Panel Trim NOTE: Ensure the auxiliary rear compartment latch release handle is routed through the rear compartment lid inner panel trim. Procedure Use a flat-bladed plastic tool to disengage the push-in retainers from the sheet metal.

Callout

Component Name

Preliminary Procedures

Rear Compartment Lid Inner Panel Trim

NOTE:

Ensure the auxiliary rear compartment latch release handle is routed through the rear compartment lid inner panel trim.

Procedure
Use a flat-bladed plastic tool to disengage the push-in retainers from the sheet metal.
