Rear Side Door Weatherstrip Replacement - Door Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door check link bolt. Rear Side Door Check Link Replacement

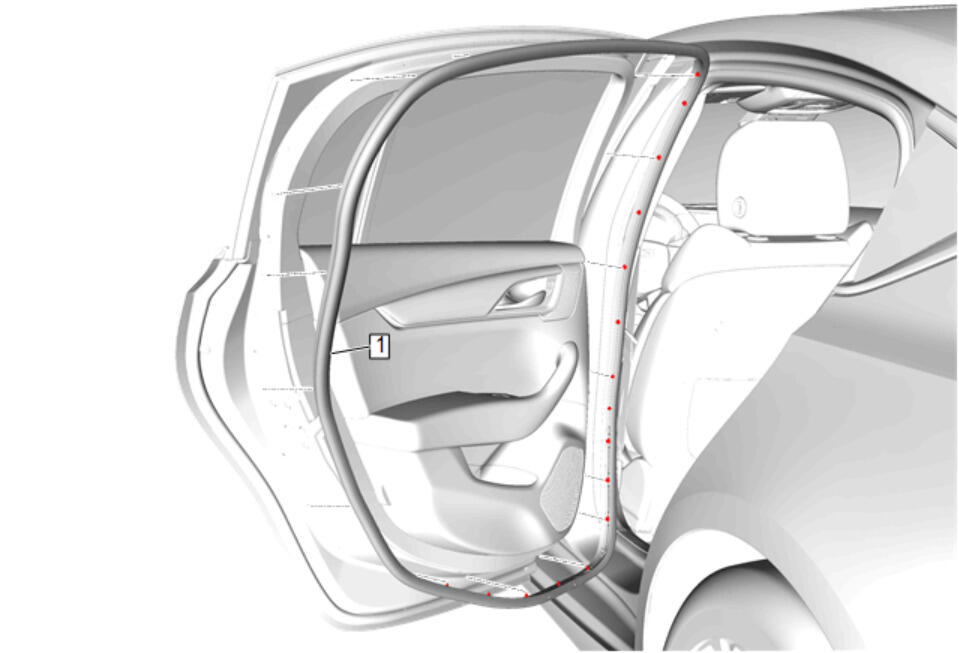

1	Rear Side Door Weatherstrip - Door Side Procedure Using the appropriate tool, remove the weatherstrip retainers from around the rear side door. Working from top to bottom, install the rear side door weatherstrip retainers ensuring they are fully seated.

Callout

Component Name

Preliminary Procedure
Remove the rear side door check link bolt. Rear Side Door Check Link Replacement

Rear Side Door Weatherstrip - Door Side

Procedure

Using the appropriate tool, remove the weatherstrip retainers from around the rear side door.
Working from top to bottom, install the rear side door weatherstrip retainers ensuring they are fully seated.
