Rear Side Door Lower Auxiliary Weatherstrip Replacement

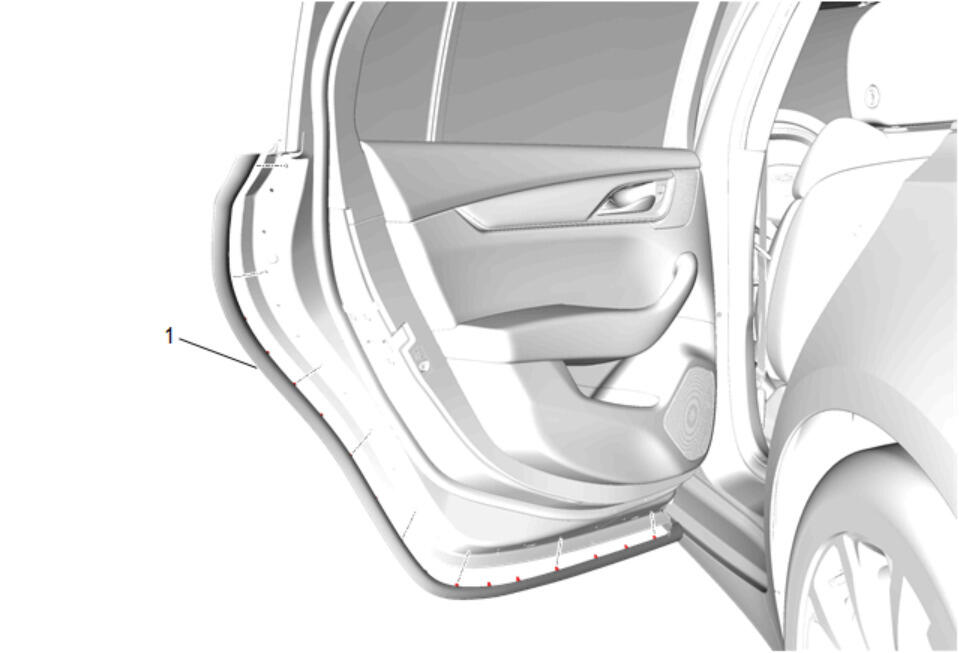

GM5319510Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Side Door Lower Auxiliary Weatherstrip

Procedure

  1. Using the appropriate tool, remove the rear side door lower auxiliary weatherstrip retainers from the rear side door.
  2. Install the rear side door lower auxiliary weatherstrip ensuring the retainers are fully seated.
