Rear Side Door Check Link Cover Replacement

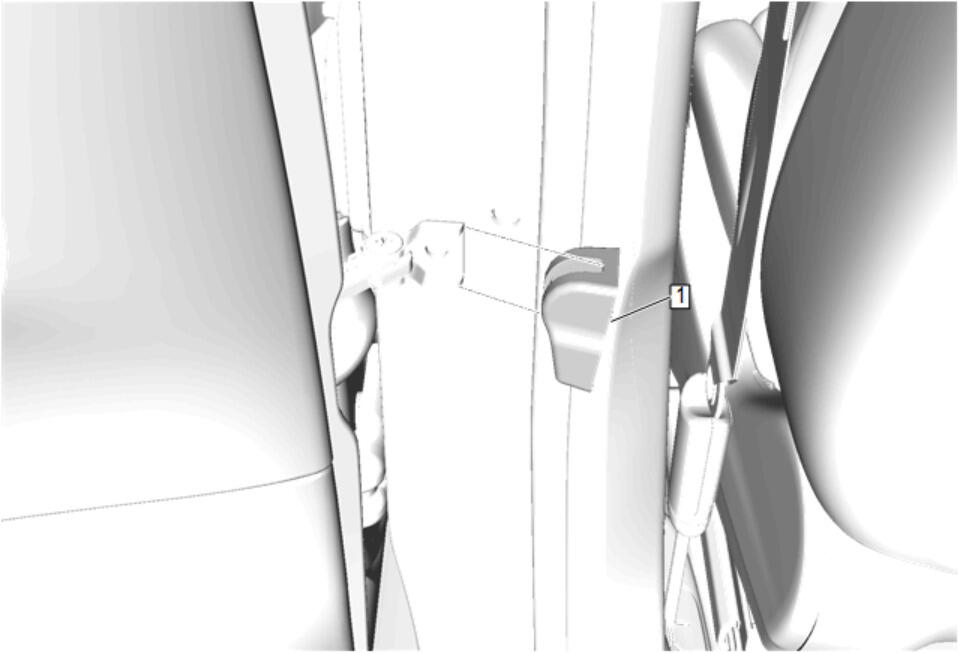

GM5326747Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear side door check link bolt. Rear Side Door Check Link Replacement
1 Rear Side Door Check Link Cover
Procedure
Turn the rear side door check link cover on the check link and slide off over the bolt mounting area.
