Rear Compartment Lid Weatherstrip Replacement

Courtesy of GENERAL MOTORS COMPANY

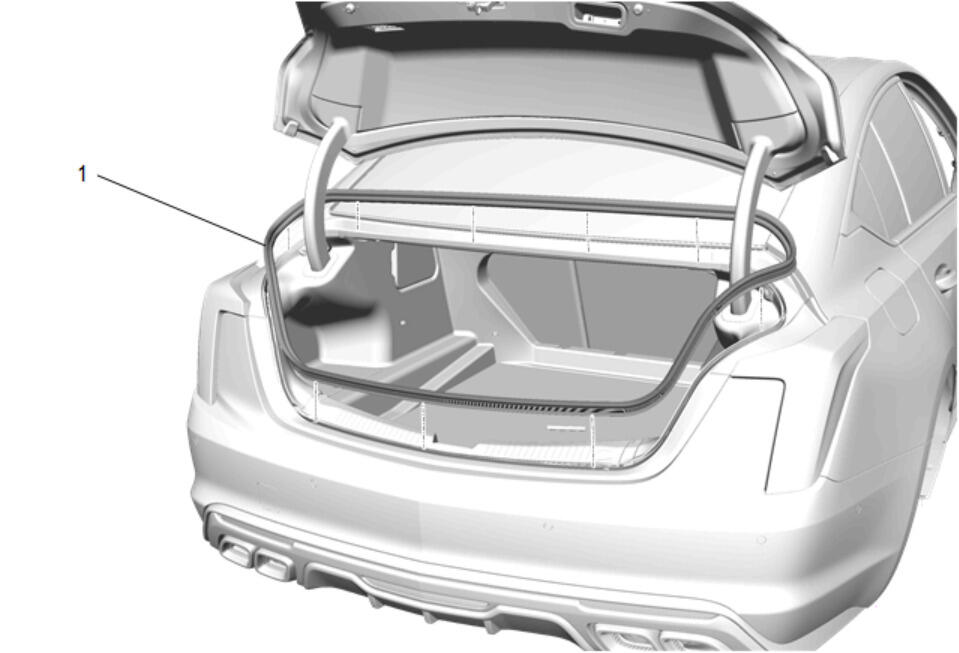

Callout	Component Name
1	Rear Compartment Lid Weatherstrip Procedure Start at the upper corner of the rear compartment opening and pull the weatherstrip away from the rear compartment opening flange. Clean the area where the weatherstrip will be mounted. Use a suitable solvent with a mixture of 50 percent isopropyl alcohol and 50 percent water by volume, or high-flash naphtha. Position the weatherstrip, working downward along the edge, install the weatherstrip on the rear compartment opening flange. Ensure that the weatherstrip is seated on the entire rear compartment opening flange.

Callout

Component Name

Rear Compartment Lid Weatherstrip

Procedure

Start at the upper corner of the rear compartment opening and pull the weatherstrip away from the rear compartment opening flange.
Clean the area where the weatherstrip will be mounted. Use a suitable solvent with a mixture of 50 percent isopropyl alcohol and 50 percent water by volume, or high-flash naphtha.
Position the weatherstrip, working downward along the edge, install the weatherstrip on the rear compartment opening flange.
Ensure that the weatherstrip is seated on the entire rear compartment opening flange.
