Rear Compartment Lid Hinge Spring Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Eye Protection Warning . Preliminary Procedure Remove the appropriate rear compartment side trim: Rear Compartment Side Trim Replacement - Left Side Rear Compartment Side Trim Replacement - Right Side

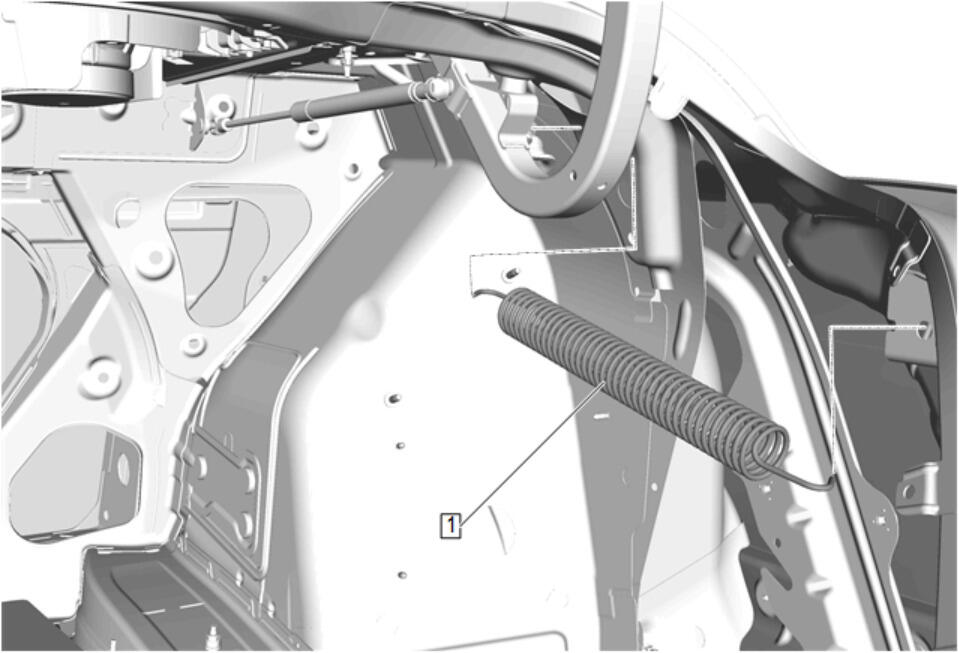

1	Rear Compartment Lid Hinge Spring Procedure  Pull the rear compartment lid spring backwards and unhook the rear compartment lid spring from the rear compartment lid hinge spring bracket.
