Installation Procedure

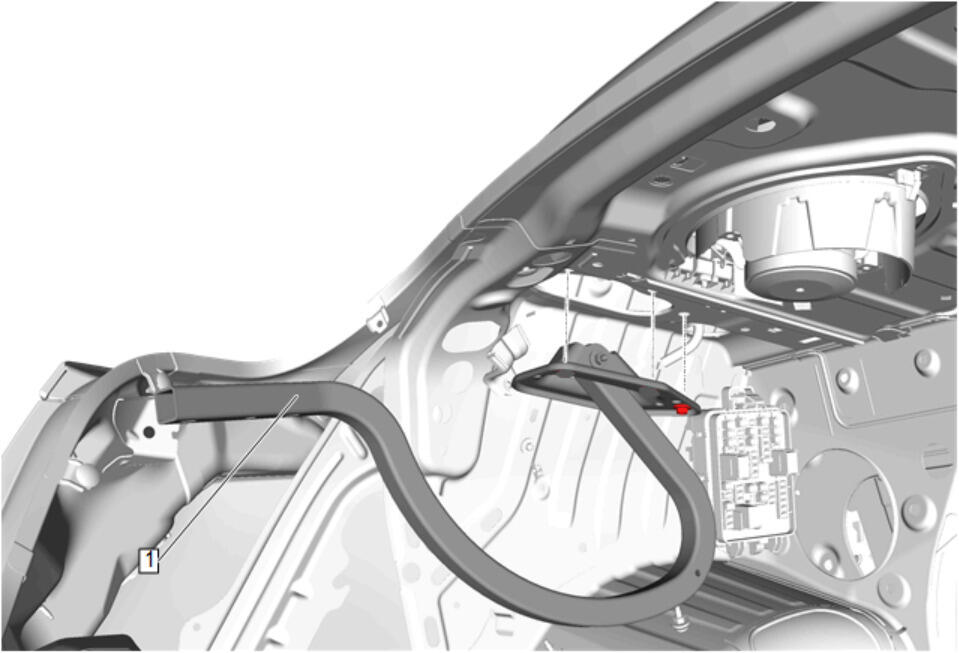

GM5310971Courtesy of GENERAL MOTORS COMPANY
  1. With the aide of an assistant install the rear compartment lid hinge (1).

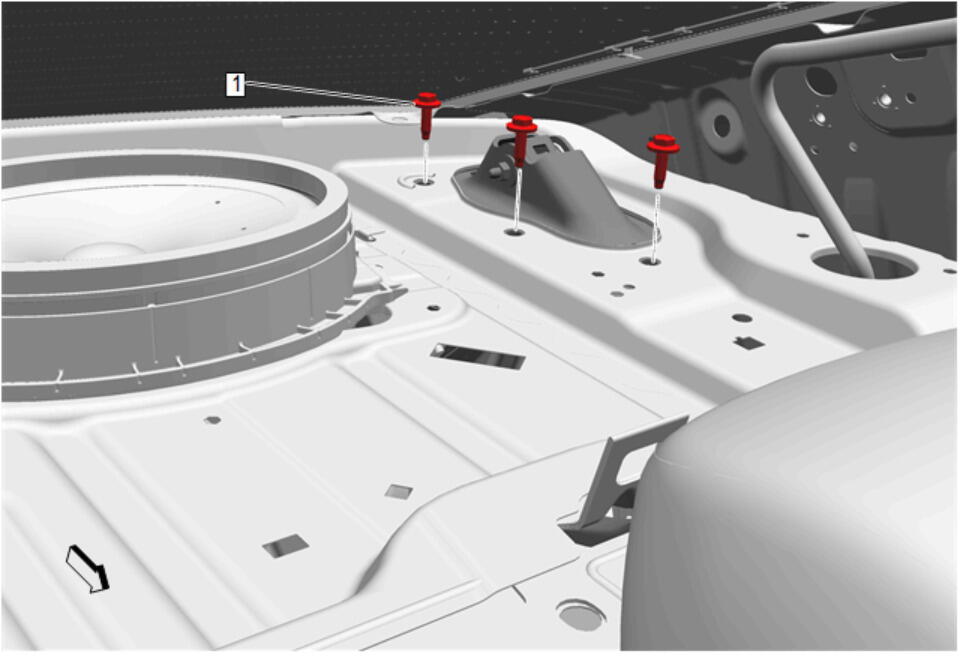

  2. GM5310968Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Rear Compartment Lid Hinge Bolt (1) - Install and tighten [ 3x ] 9 N.m (80 lb in)

  3. Rear Window Panel Trim - Install - Rear Window Panel Trim Replacement
  4. GM5310889Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Lid Hinge Spring (1) - Install - Rear Compartment Lid Hinge Spring Replacement

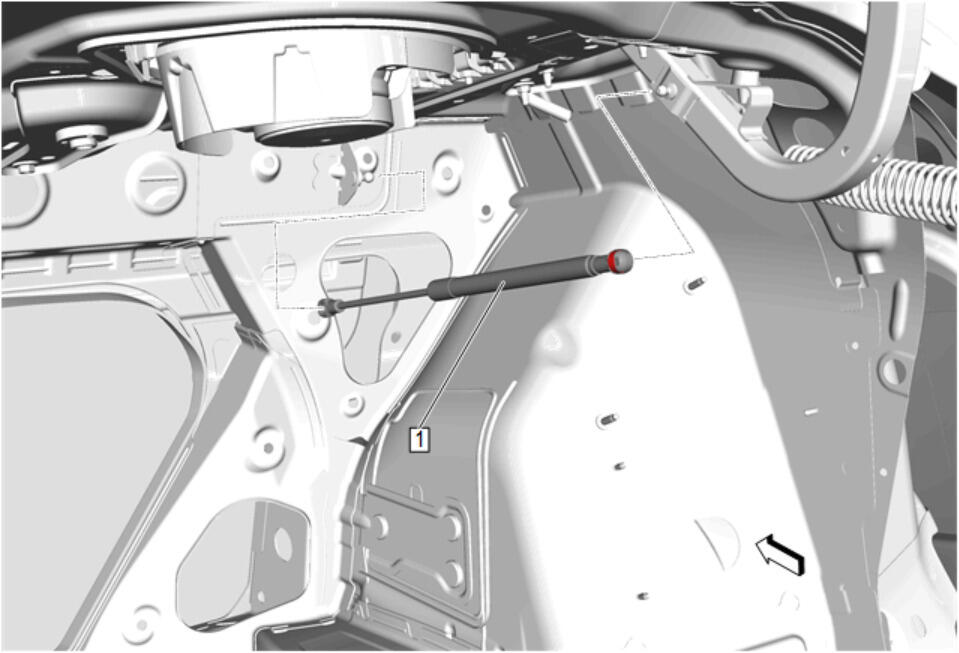

  5. GM5311150Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Lid Strut (1) - Install - Rear Compartment Lid Strut Replacement

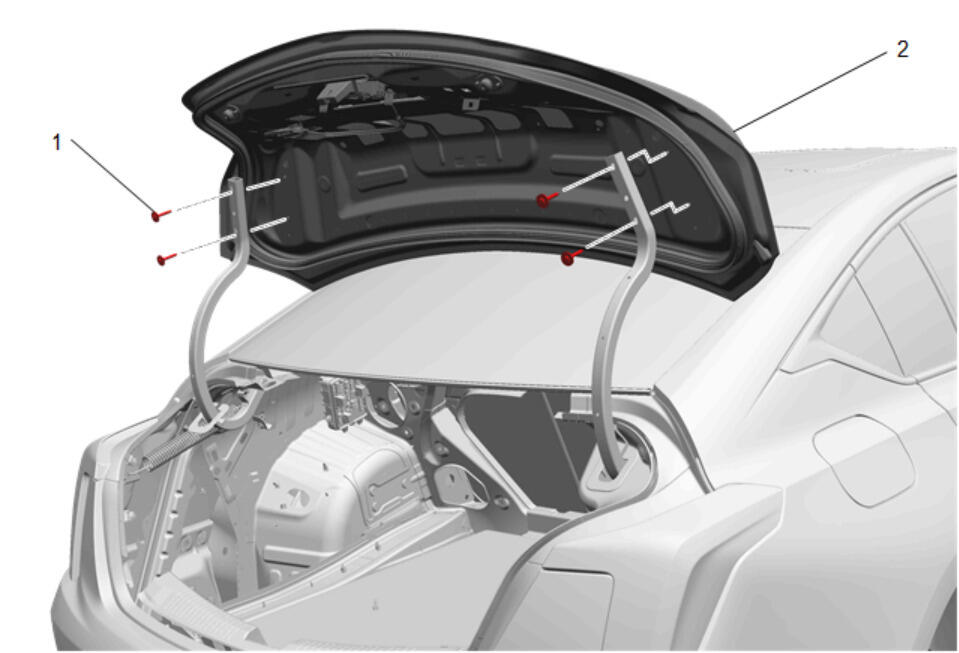

  6. GM5310757Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Lid (2) - Install - Rear Compartment Lid Replacement

  7. Install the left rear compartment side trim. Rear Compartment Side Trim Replacement - Left Side
  8. Install the right rear compartment side trim. Rear Compartment Side Trim Replacement - Right Side
