Rear Compartment Lid Procedure
- Loosen the 4 rear compartment lid bolts to adjust the rear compartment lid.
- Adjust the rear compartment lid in order to obtain an even gap between the lid and the quarter outer panel, the tail lamp and rear bumper fascia and so that the lid is flush with the quarter outer panel, the tail lamp and rear bumper fascia.
- Tighten the 4 rear compartment lid bolts. Rear Compartment Lid Replacement
Adjustment:

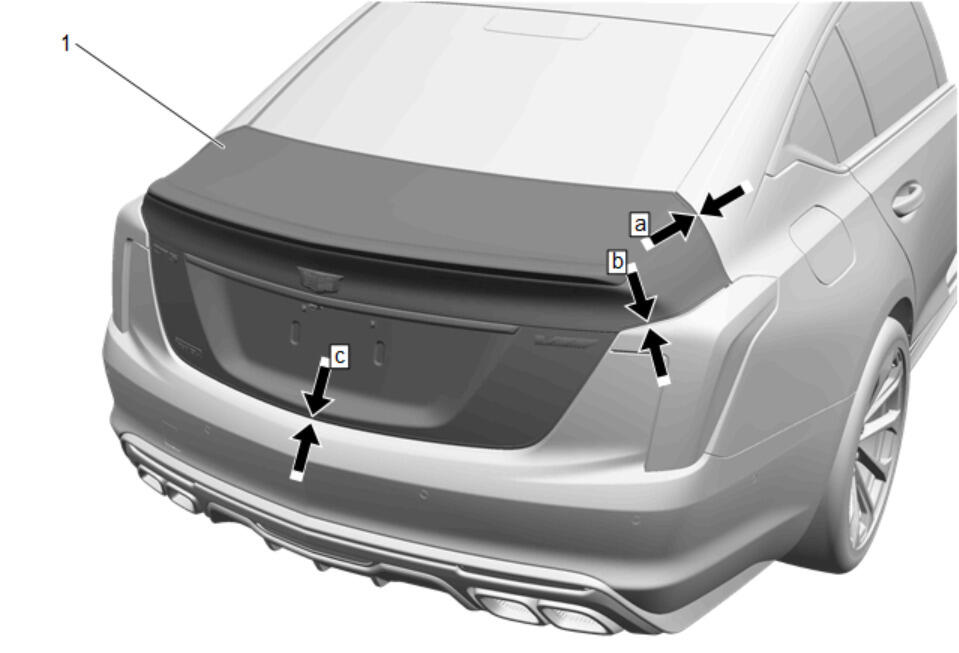

- Rear compartment lid to quarter outer panel (a) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in)
- Rear compartment lid to rear body structure stop lamp (b) 3.5 mm ± 1.0 mm (0.14 in ± 0.04 in)
- Rear compartment lid to rear bumper fascia (c) 6.0 mm ± 1.5 mm (0.24 in ± 0.05 in)
|
