Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

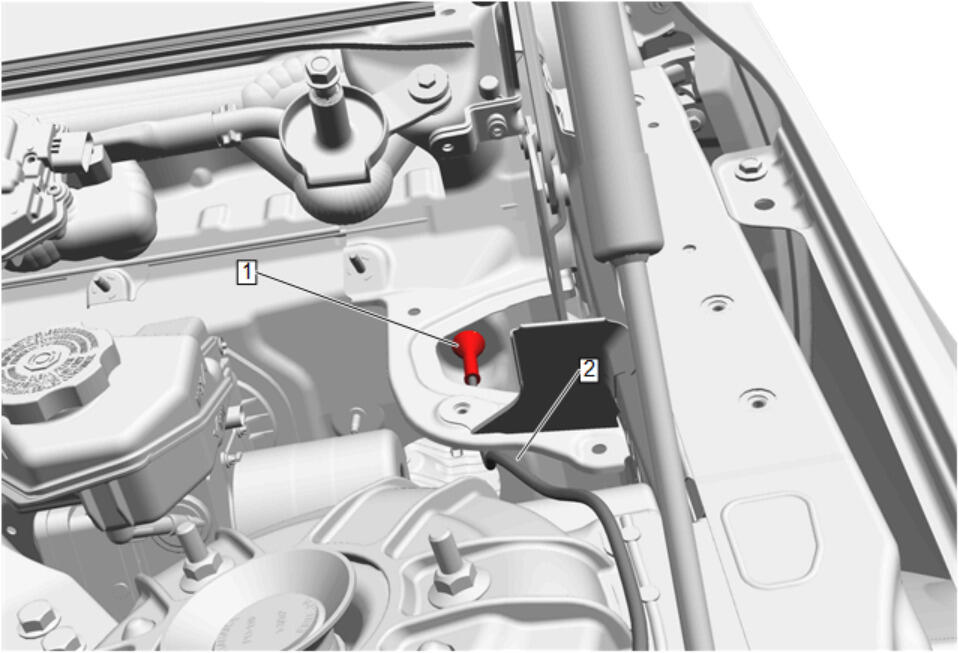

Attach the mechanics wire to the new hood primary latch release cable (2) and guide the cable in.
Install the hood primary latch release cable grommet (1) to the dash panel.
Courtesy of GENERAL MOTORS COMPANY

Attach the hood primary latch release cable end retainer to the inside handle (1).
Courtesy of GENERAL MOTORS COMPANY

Attach the hood primary latch release cable end retainer (1) to the latch.
Install the hood primary latch release cable to the 2 retainer (2).
Plenum Drain Valve - Install - Plenum Drain Valve Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Front Sight Shield (2) - Install - Front Compartment Front Sight Shield Replacement
