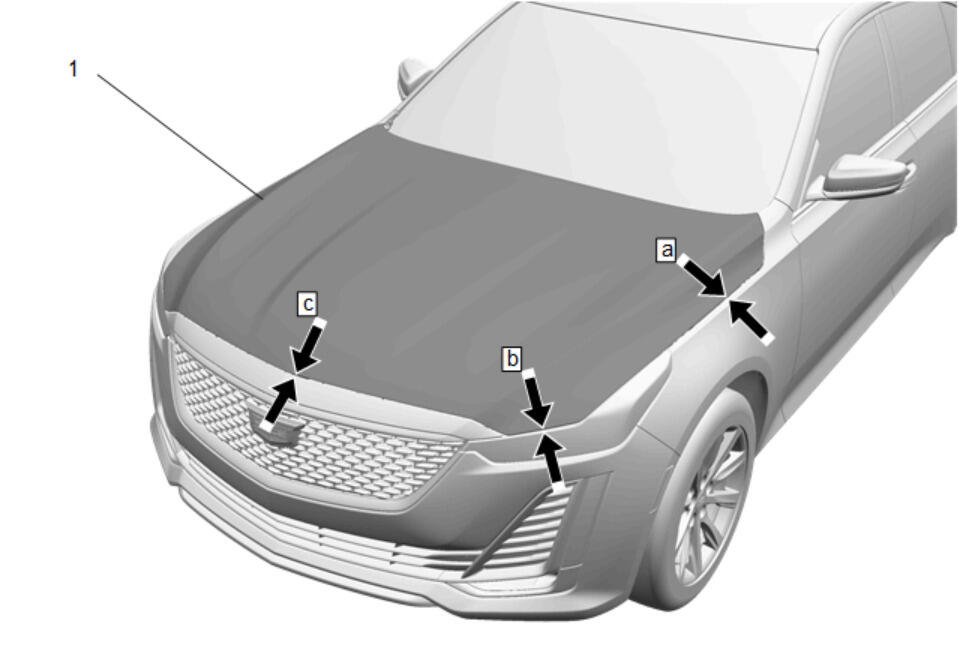

| 1 |
Hood Procedure
- Loosen the 4 hood hinge nuts.
- Adjust the hood in order to obtain an even gap on both sides between the hood and the fenders, headlamps and the front bumper fascia.
- Tighten the 4 hood hinge nuts. Hood Replacement
- Loosen and adjust the hood primary and secondary latch and the hood bumpers as necessary to obtain the adjustment.
Adjustment Procedure
- Hood to front fender (a) 3.0 mm ±.75 mm (0.12 in ± 0.03 in)
- Hood to headlamp (b) 3.0 mm ± 1 mm (0.12 in ± 0.04 in)
- Hood to front bumper fascia (c) 3.0 mm ±.1.5 mm (0.12 in ± 0.06 in)
|
