Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Remove the appropriate front fender. Front Fender Replacement

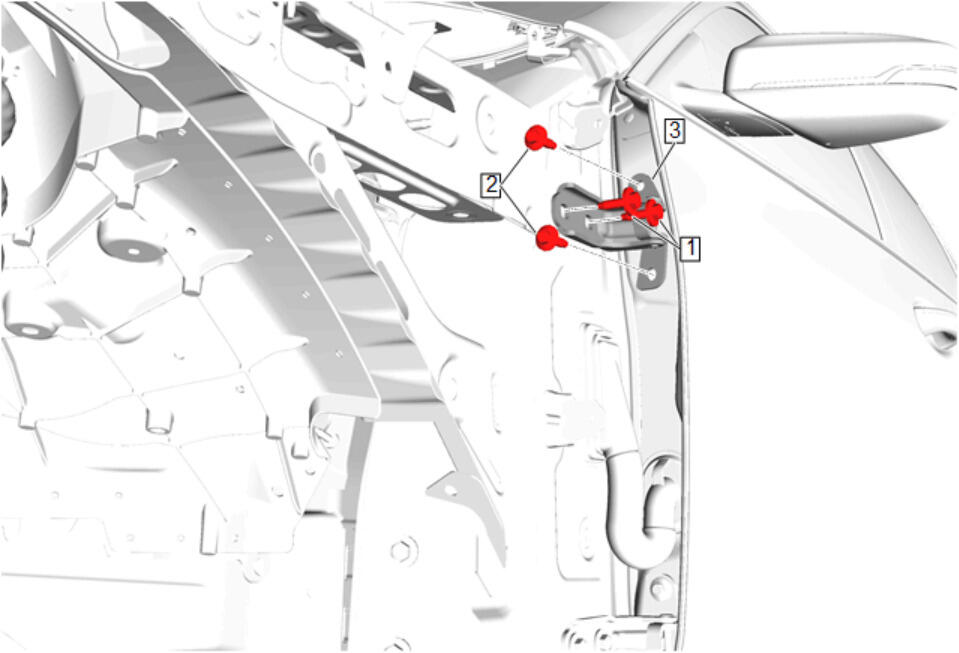

Mark the location of the upper hinge before removing the bolts with a grease pencil.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Keep the door in the closed position and replace only one hinge at a time.

Front Side Door Hinge Bolt - Body Side (1) - Remove [ 2x ]
Front Side Door Hinge Bolt - Door Side (2) - Remove [ 2x ]
Front Side Door Upper Hinge (3) - Remove

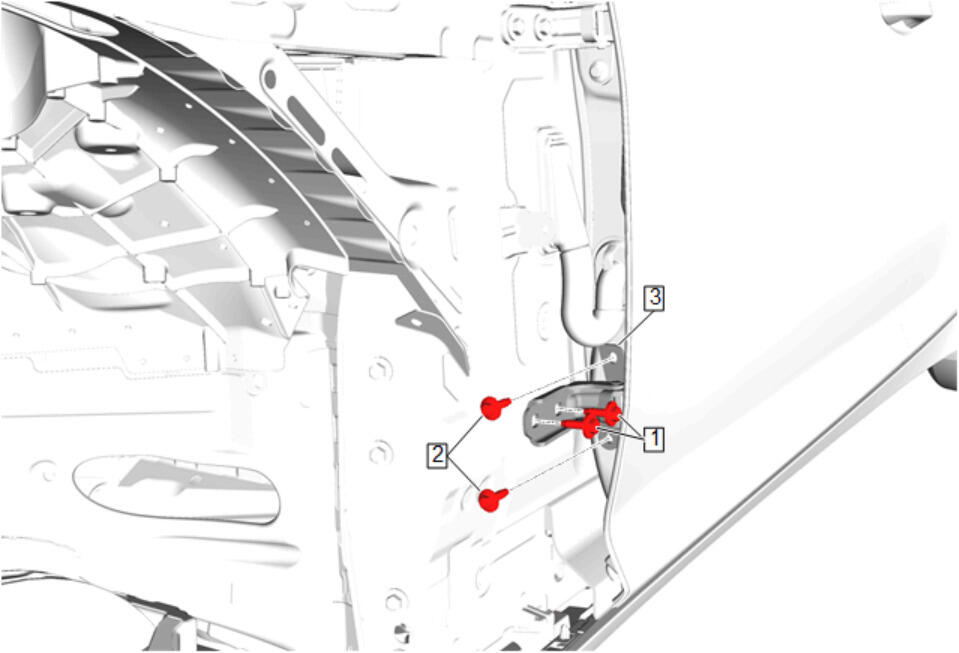

Mark the location of the lower hinge before removing the bolts with a grease pencil.
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Hinge Bolt - Body Side (1) - Remove [ 2x ]
Front Side Door Hinge Bolt - Door Side (2) - Remove [ 2x ]
Front Side Door Lower Hinge (3) - Remove
