Front Side Door Lower Auxiliary Weatherstrip Replacement

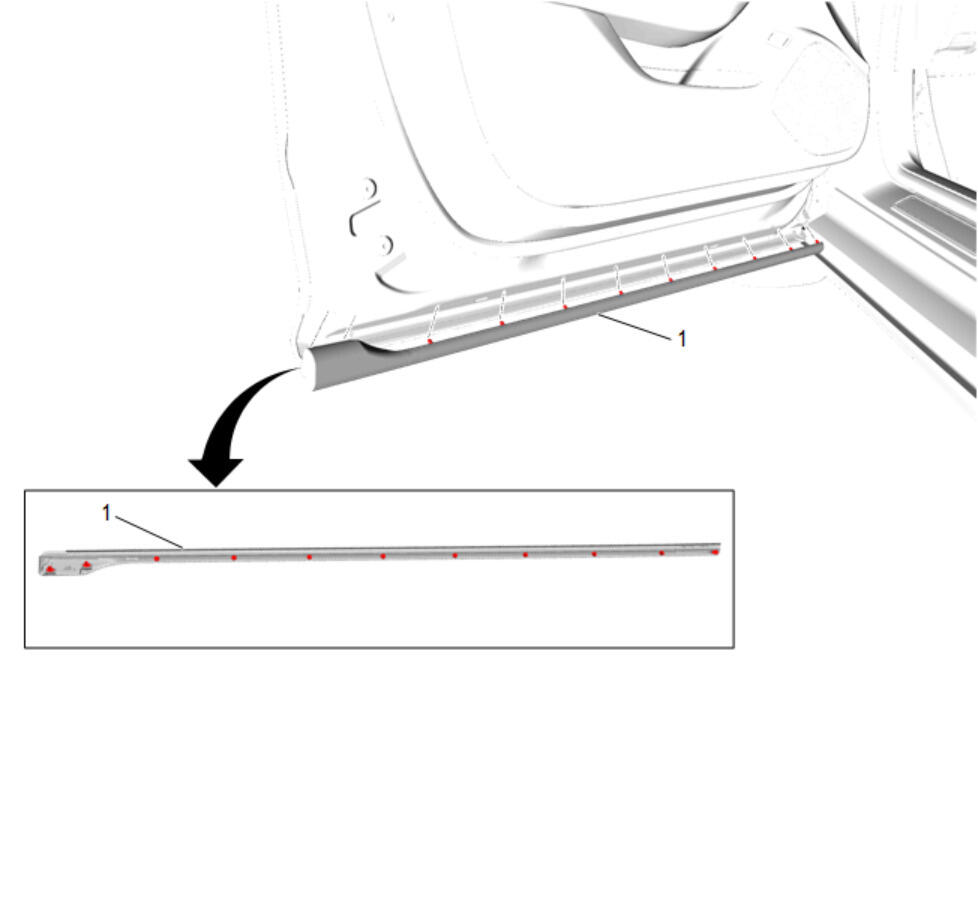

GM5311283Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Lower Auxiliary Weatherstrip

Procedure

  1. Using the appropriate tool, remove the front side door lower auxiliary weatherstrip retainers from the front side door.
  2. Install the front side door lower auxiliary weatherstrip ensuring the retainers are fully seated.
