Front Side Door Front Auxiliary Weatherstrip Replacement

Courtesy of GENERAL MOTORS COMPANY

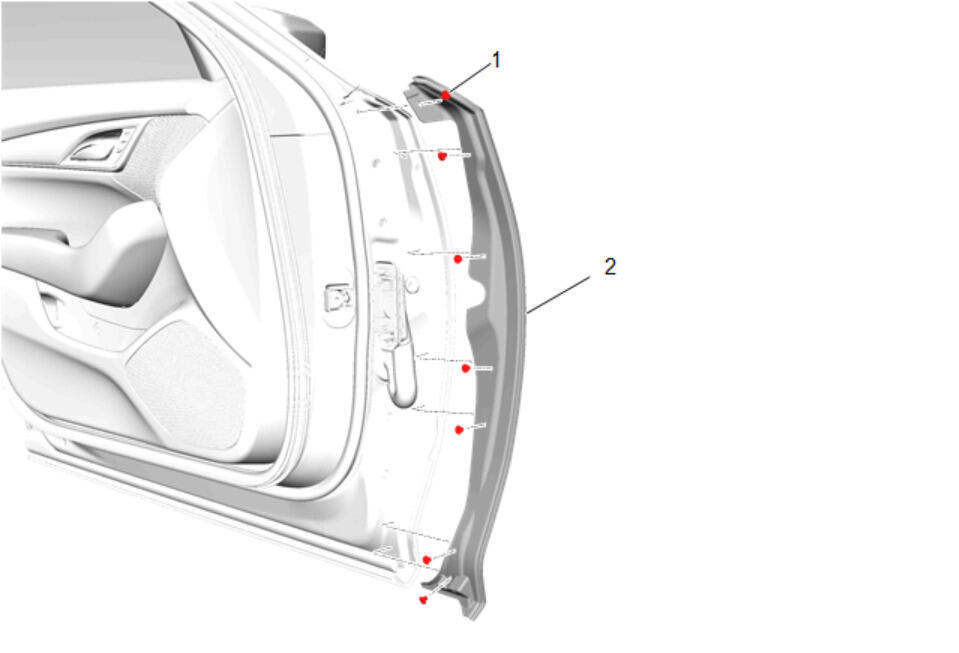

Callout	Component Name
Preliminary Procedure  Remove the appropriate front side door. Front Side Door Replacement
1	Front Side Door Front Auxiliary Weatherstrip Retainer [ 7x ] Procedure  Using the appropriate tool, remove the front side door front auxiliary weatherstrip retainers.
2	Front Side Door Front Auxiliary Weatherstrip
