Removal Procedure

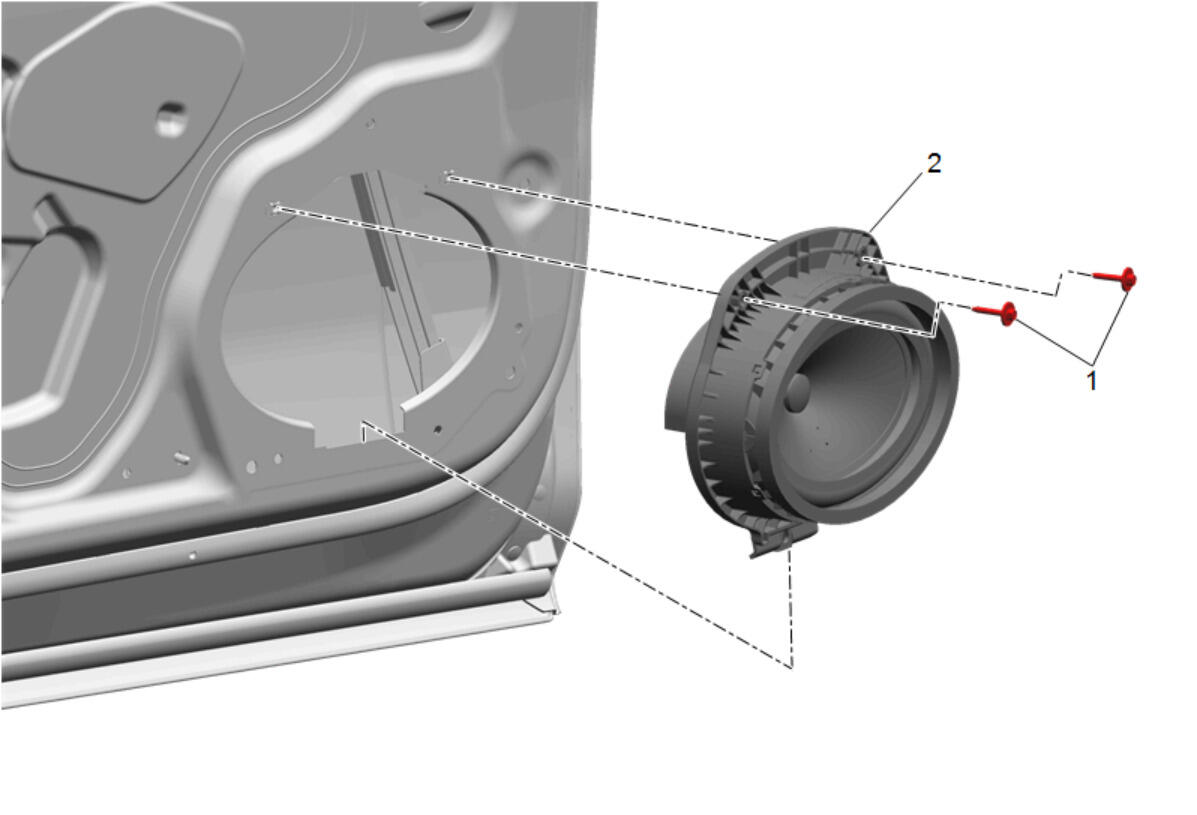

  1. GM5295240Courtesy of GENERAL MOTORS COMPANY

    Radio Front Side Door Speaker (2) - Remove - Radio Front Side Door Speaker Replacement

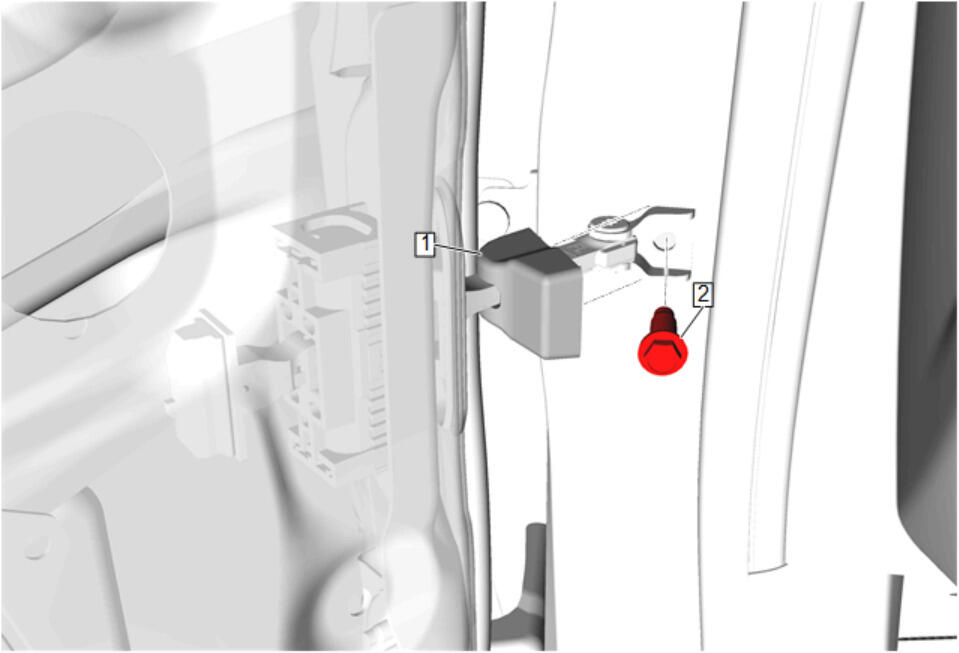

  2. GM5310417Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Check Link Cover (1) - Reposition away

  3. Front Side Door Check Link Bolt (2) - Remove

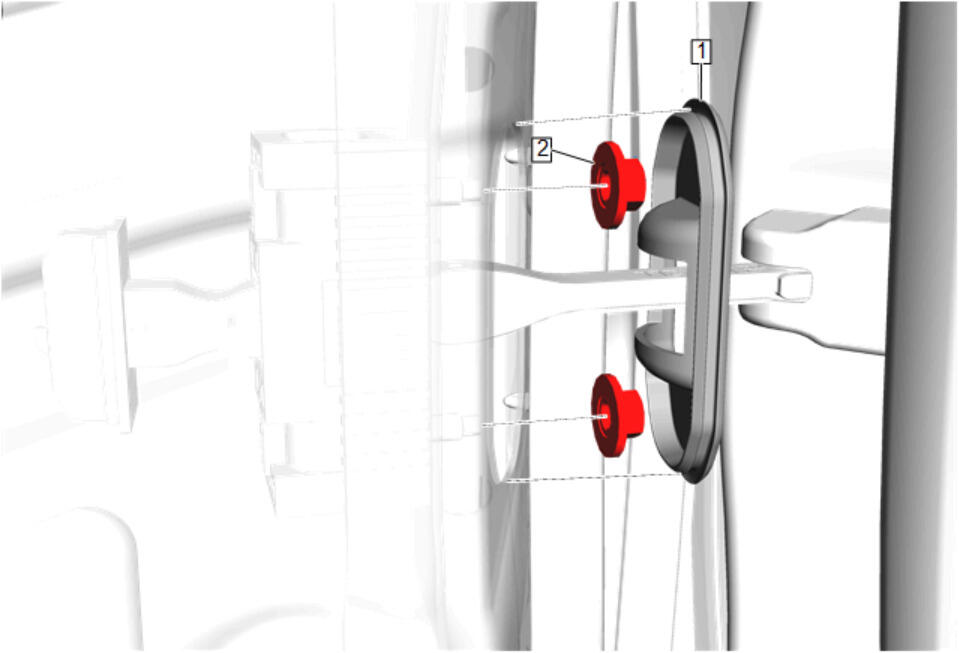

  4. GM5310974Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Check Link Grommet (1) - Remove

  5. Front Side Door Check Link Nut (2) - Remove [ 2x ]

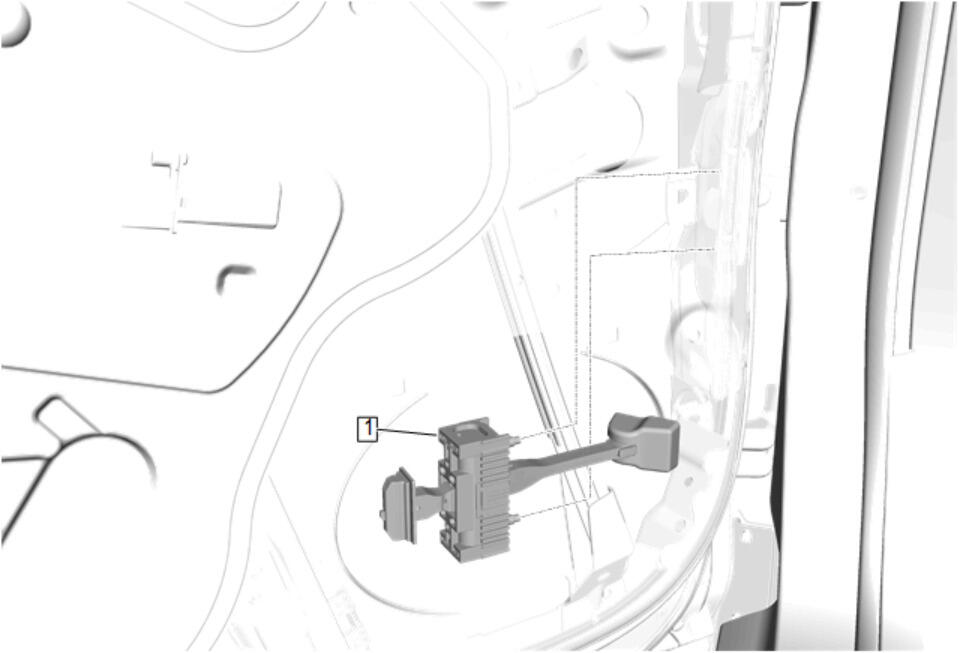

  6. GM5311046Courtesy of GENERAL MOTORS COMPANY

    Remove the front side door check link (1) through the radio front side door speaker hole.

  7. Transfer components as necessary.
