Front Side Door Check Link Cover Replacement

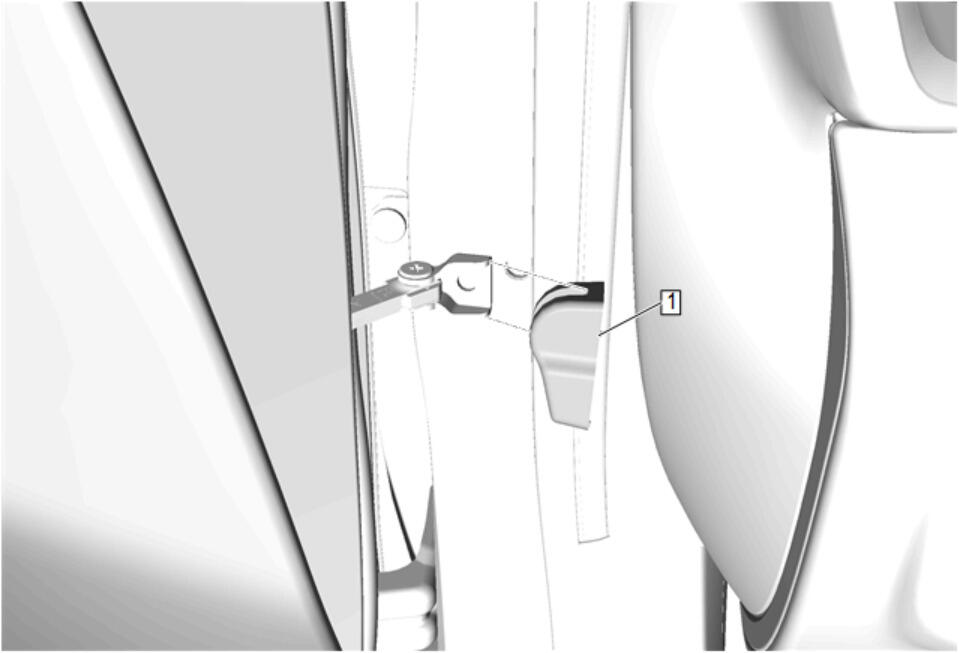

GM5326695Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front side door check link bolt. Front Side Door Check Link Replacement
1 Front Side Door Check Link Cover
Procedure
Turn the front side door check link cover on the check link and slide off over the bolt mounting area.
