Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Compartment Side Sight Shield (2) - Remove - Front Compartment Side Sight Shield Replacement
Air Inlet Grille Panel Extension - Left Side - Remove - Air Inlet Grille Panel Extension Replacement - Left Side
Air Inlet Grille Panel Extension - Right Side - Remove - Air Inlet Grille Panel Extension Replacement - Right Side
Front Wheelhouse Liner - Remove - Front Wheelhouse Liner Replacement
Remove the appropriate front fender insulator:
- For left side, refer to Front Fender Insulator Replacement - Left Side .
- For right side, refer to Front Fender Insulator Replacement - Right Side .
Courtesy of GENERAL MOTORS COMPANY

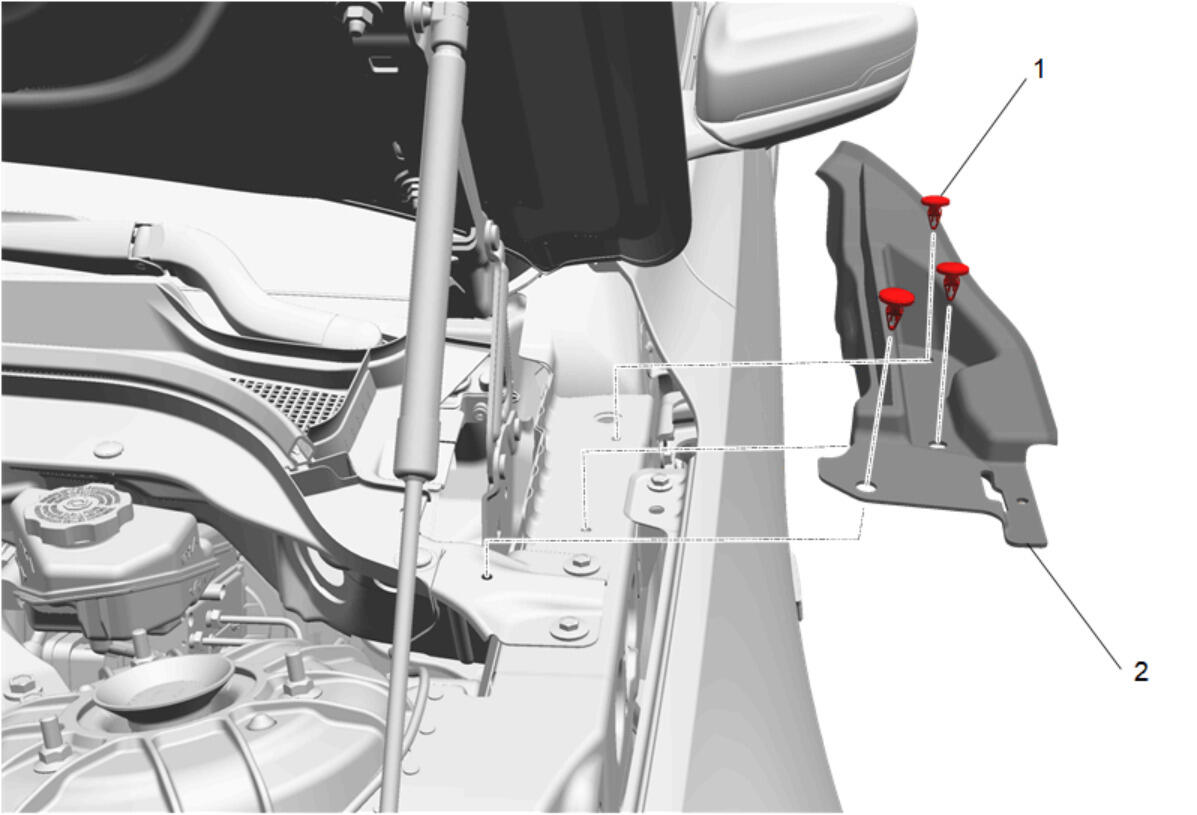

Using the appropriate tool, release the foam insulation on the front compartment side rail baffle (1) from the fender.
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Remove - Front Bumper Fascia Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Guide (3) - Remove - Front Bumper Fascia Guide Replacement
Courtesy of GENERAL MOTORS COMPANY

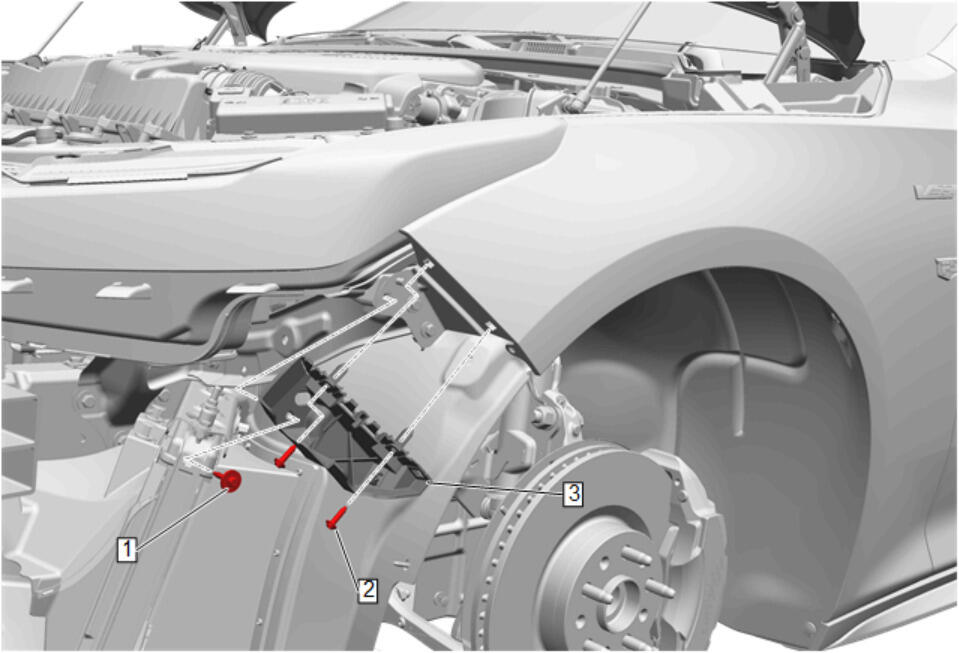

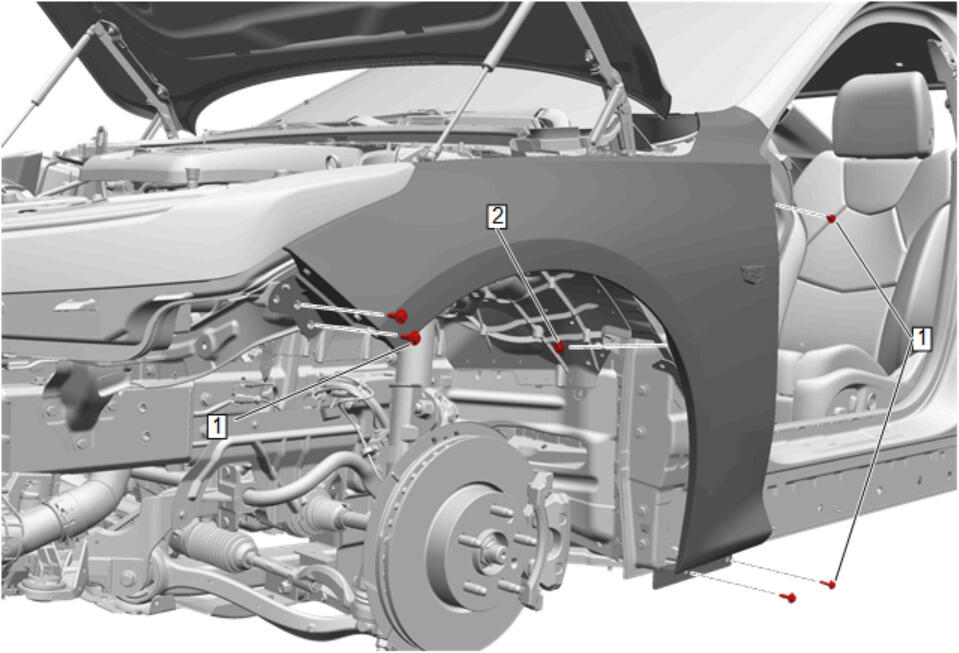

Front Fender Bolt (1) - Remove [ 5x ]
Front Fender Nut (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Place protective covering over windshield at top rear bolt to prevent windshield breakage.

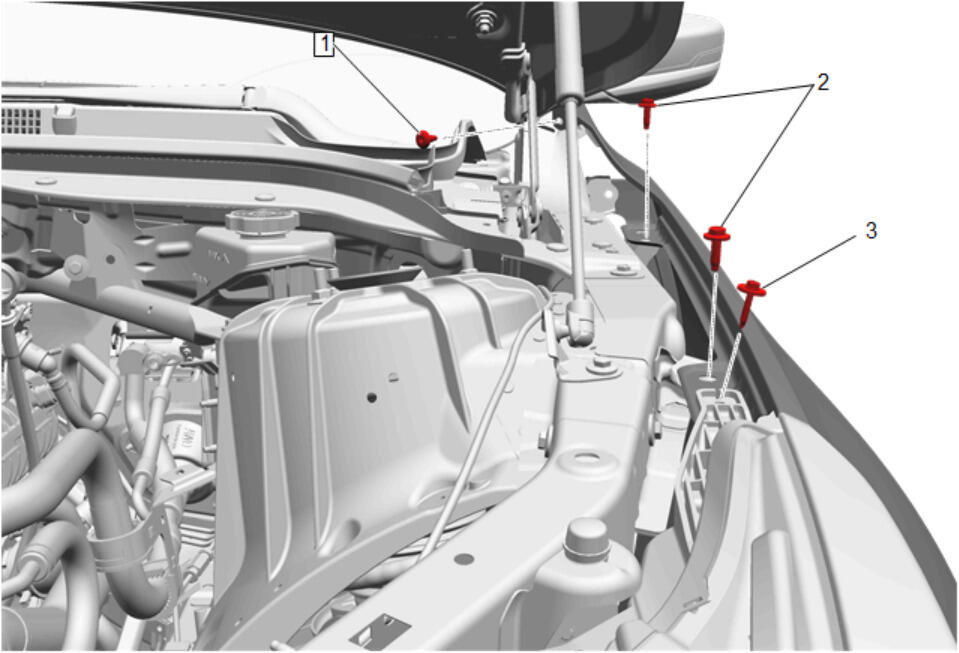

Front Fender Bolt (1) - Loosen
Front Fender Bolt (2) - Remove [ 2x ]
Headlamp Bolt (3) - Remove - Front Headlamp Replacement (With T87) , or Front Headlamp Replacement (Without T87)
Courtesy of GENERAL MOTORS COMPANY

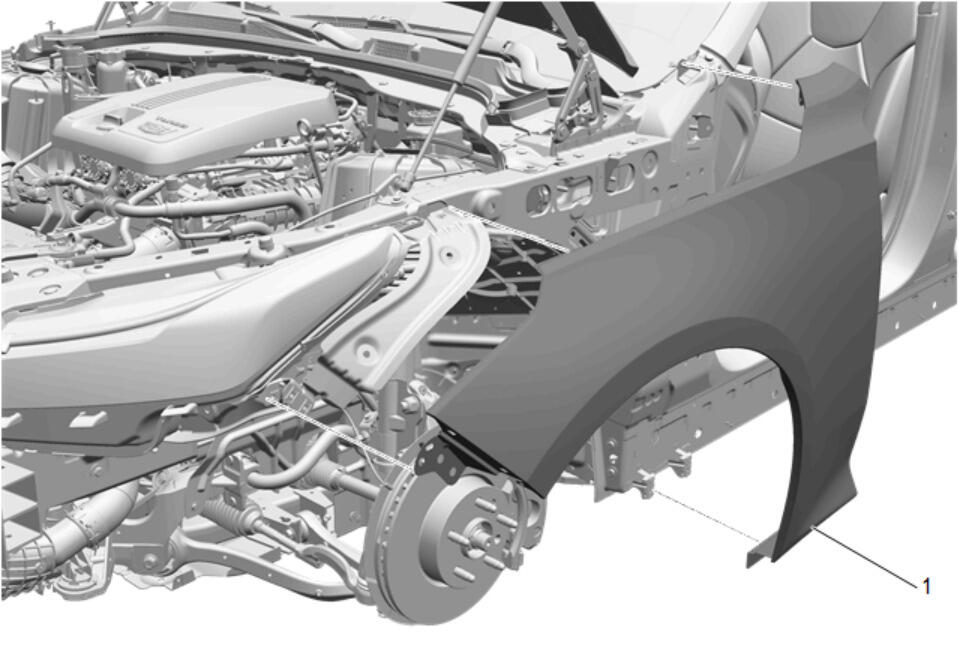

Front Fender (1) - Remove
Transfer components as necessary.
