Removal Procedure
Hood (2) - Remove - Hood Replacement

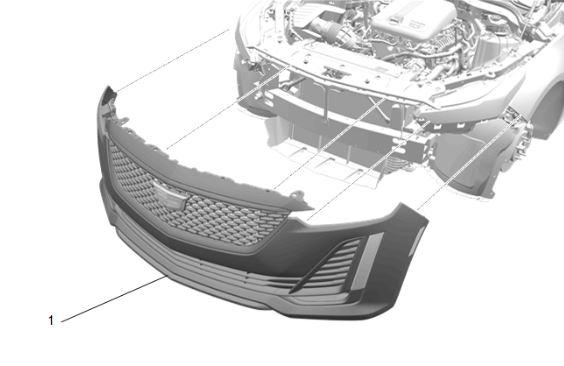

Front Bumper Fascia (1) - Remove - Front Bumper Fascia Replacement
Remove the left and right side front wheelhouse panels (3). Front Wheelhouse Liner Replacement
Front Bumper Fascia Support Brace Bolt (1) - Remove [ 3x ]
- Front Bumper Fascia Support Brace (2) - Remove
- {If equipped} Disconnect the electrical connector.
Front Bumper Fascia Center Support (3) - Remove - Front Bumper Fascia Center Support Replacement
Front Bumper Impact Bar (3) - Remove - Front Bumper Impact Bar Replacement (LSY)
Remove the left and right side front end sheet metal cross brace at the impact bar. Front End Sheet Metal Cross Brace Replacement (Impact Bar Bracket) , or Front End Sheet Metal Cross Brace Replacement (Plenum)
- Remove both front headlamps. Front Headlamp Replacement (With T87) , or Front Headlamp Replacement (Without T87)
Front Fender Front Brace (3) - Remove - Front Fender Front Brace Replacement

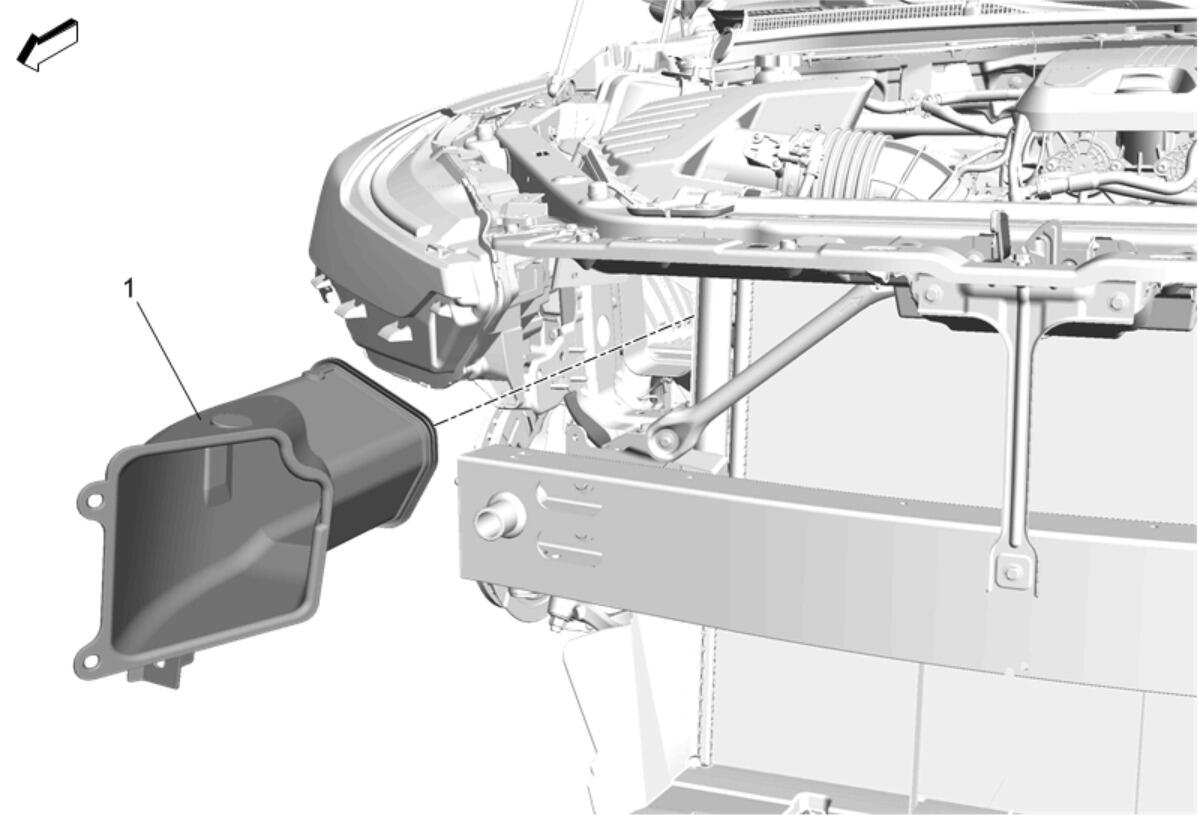

Intake Air Duct (1) - Remove - Intake Air Duct Replacement
Radiator Upper Bracket - Left Side (2) - Remove - Radiator Upper Bracket Replacement - Left Side
Radiator Upper Bracket - Right Side (3) - Remove - Radiator Upper Bracket Replacement - Right Side
Radiator Air Upper Baffle (1) - Remove - Radiator Air Upper Baffle Replacement (LSY)

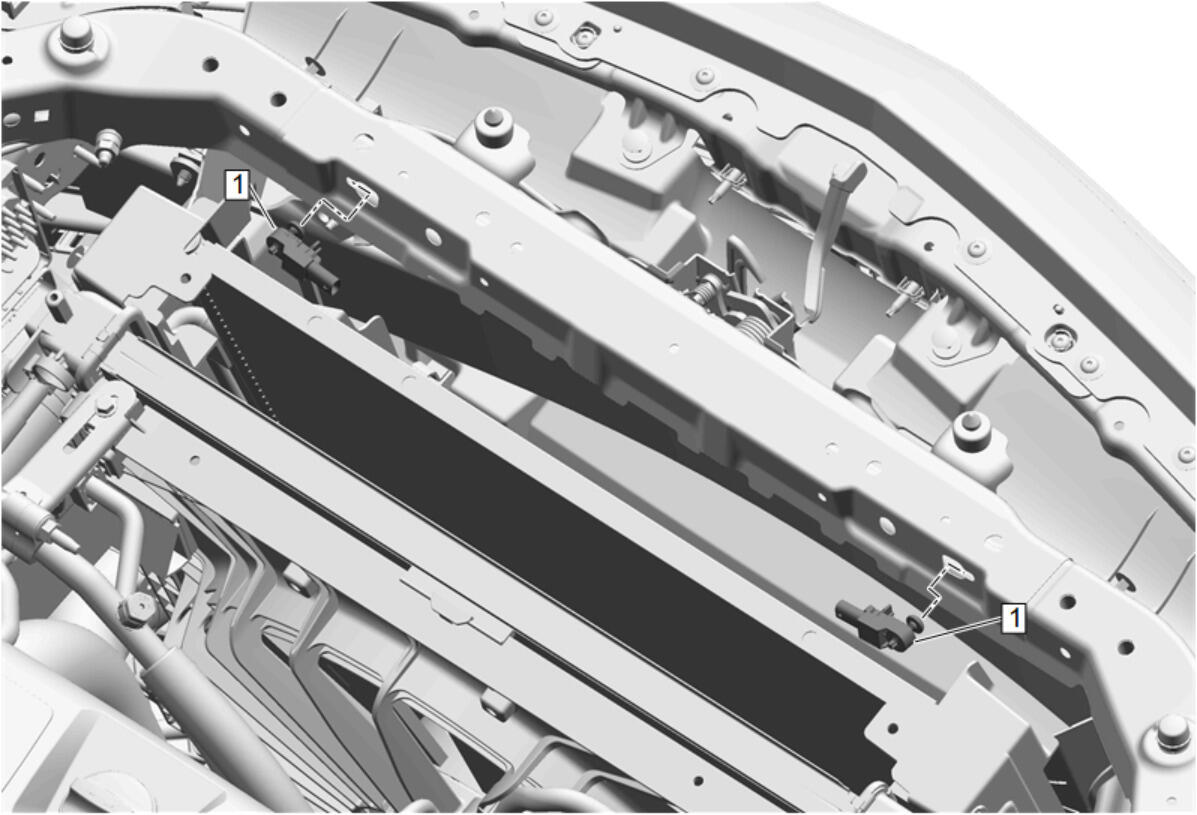

Airbag Front End Discriminating Sensor (1) - Reposition [ 2x ] - Airbag Front End Discriminating Sensor Replacement
Radiator Air Front Upper Baffle (1) - Remove - Radiator Air Front Upper Baffle Replacement (LSY)

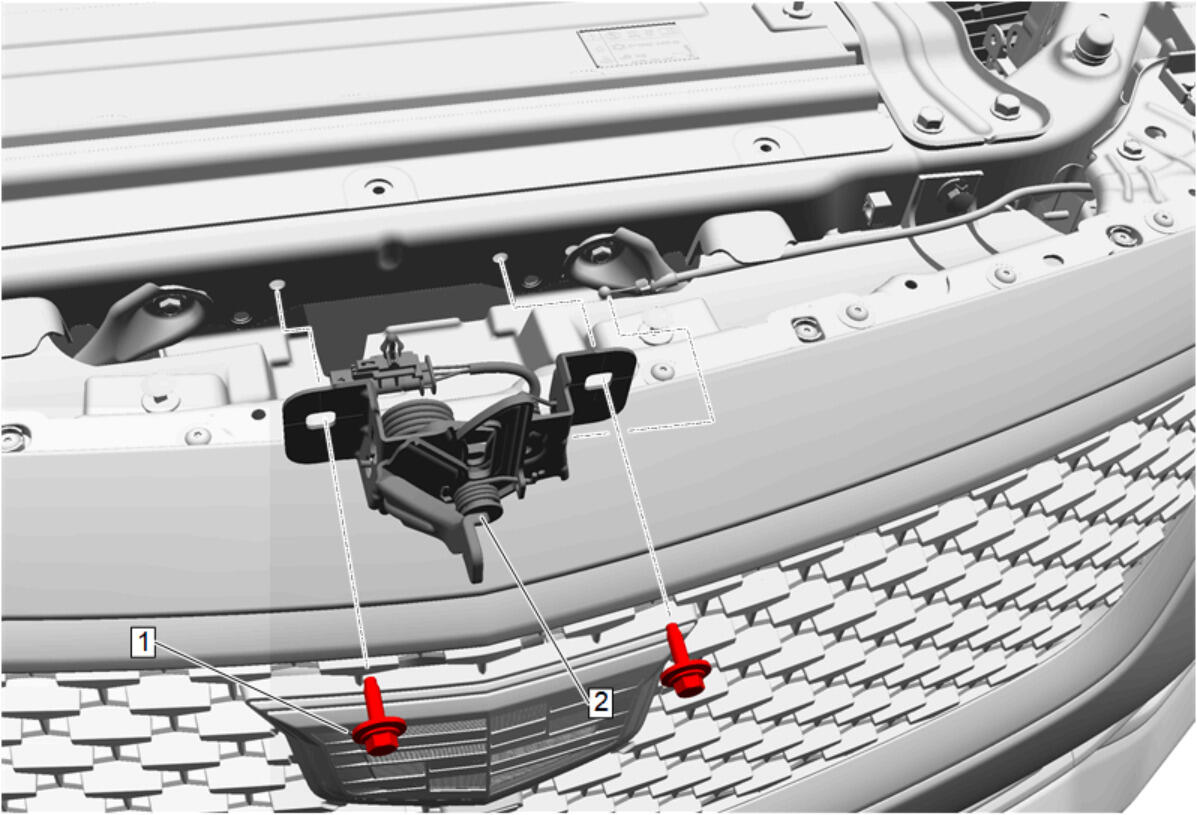

Hood Primary and Secondary Latch Bolt (1) Remove [ 2x ]
- Leaving the hood latch release cable attached, reposition the hood primary and secondary latch (2).
- Engine Wiring Harness Fuse Block Bracket - Reposition - Engine Wiring Harness Fuse Block Bracket Replacement
Engine Control Module Bracket (1) - Reposition - Engine Control Module Bracket Replacement
Transmission Control Module Bracket (2) - Reposition - Transmission Control Module Bracket Replacement
- Reposition the wiring harness.

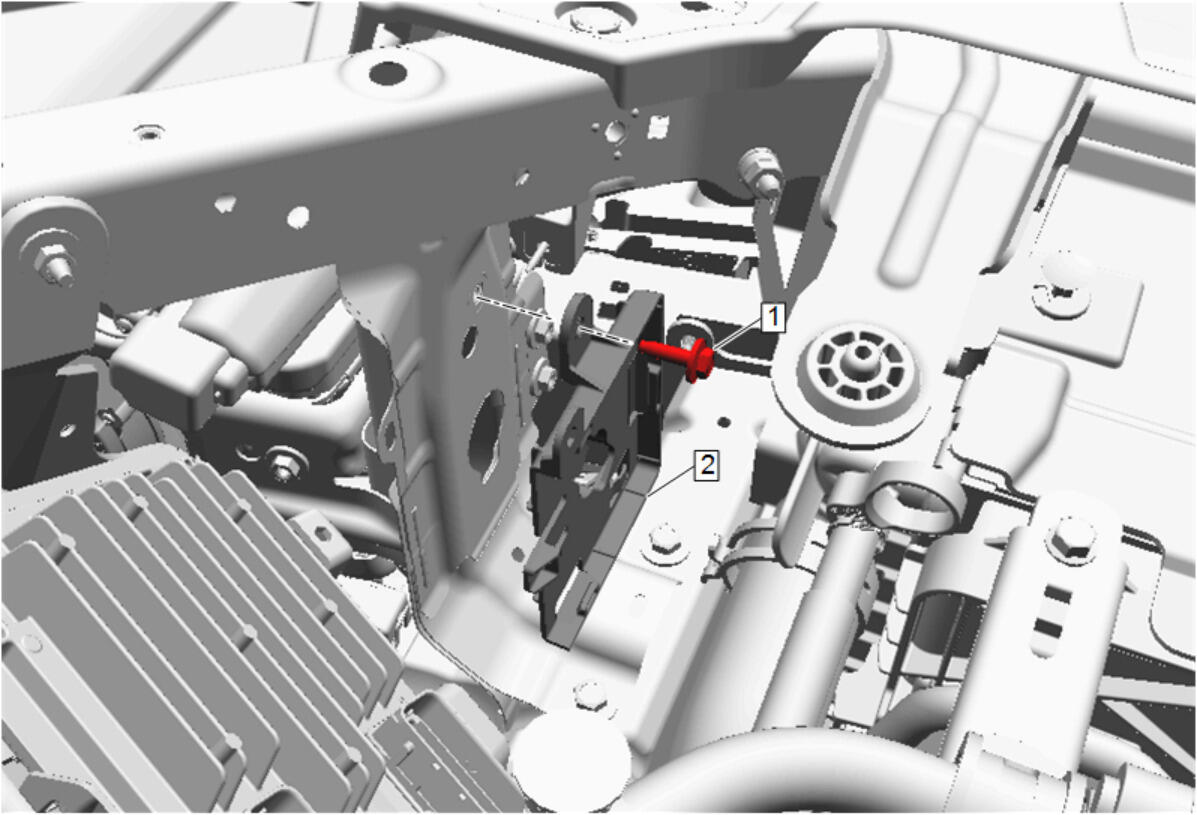

Battery Negative Cable Ground Bolt (1) - Remove
- Battery Negative Cable Ground Terminal (2) - Remove
Forward Lamp Wire Harness Ground Bolt (1) - Remove [ 2x ]
- Forward Lamp Wire Harness Ground Terminal (2) - Reposition [ 2x ]
Engine Wire Harness Ground Bolt (1) - Remove
- Engine Wire Harness Ground Terminal (2) - Reposition
Remove the 3 left side upper front compartment front panel bolt (1).
Remove the 5 left side lower front compartment front panel bolt (1).
Remove the 3 right side upper front compartment front panel bolt (1).
Remove the 5 right side lower front compartment front panel bolt (1).
Front Compartment Front Panel (1) - Remove
