Installation Procedure

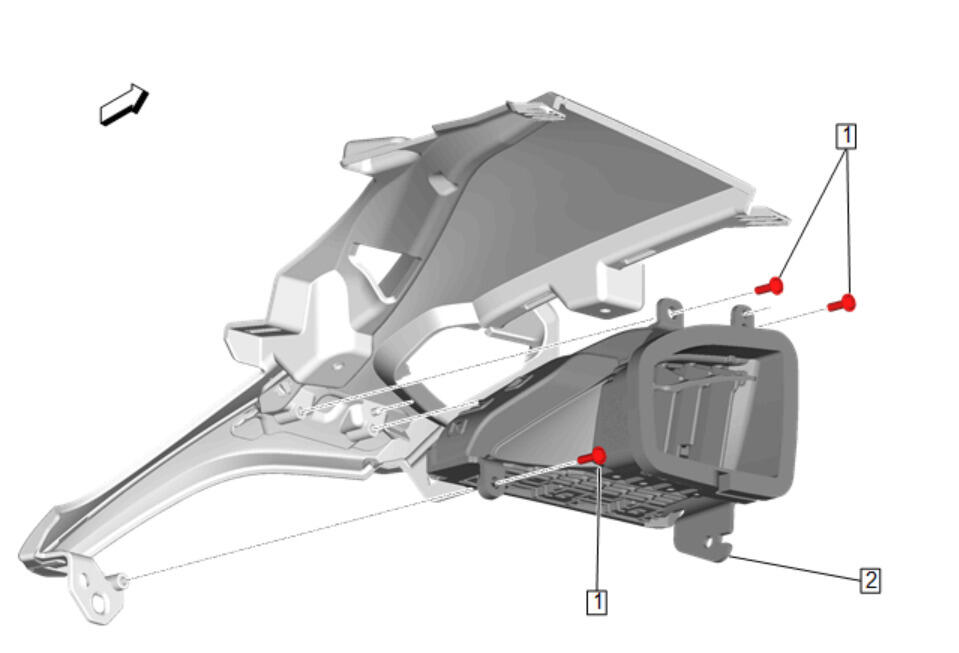

  1. GM5318306Courtesy of GENERAL MOTORS COMPANY

    Trim Accent Molding (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Instrument Panel Accessory Bezel Bolt (1) - Install and tighten [ 3x ] 2.5 N.m (22 lb in)
  3. GM5318304Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel - Left Side (3) - Install - Instrument Panel Upper Trim Panel Replacement - Left Side

  4. GM5314053Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Instrument Cluster Hood (2) - Install - Instrument Panel Instrument Cluster Hood Replacement

  5. GM5315161Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate Applique (1) - Install - Instrument Panel Cluster Trim Plate Applique Replacement

  6. GM5316068Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Grille (2) - Install - Side Window Defogger Outlet Grille Replacement

  7. GM5316863Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement

  8. GM5310879Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator - Left Side (1) - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side

  9. GM5314041Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag - Driver Side (2) - Install - Instrument Panel Lower Airbag Replacement - Driver Side

  10. GM5309230Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover (1) - Install - Instrument Panel Outer Trim Cover Replacement
