Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Upper Trim Panel - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

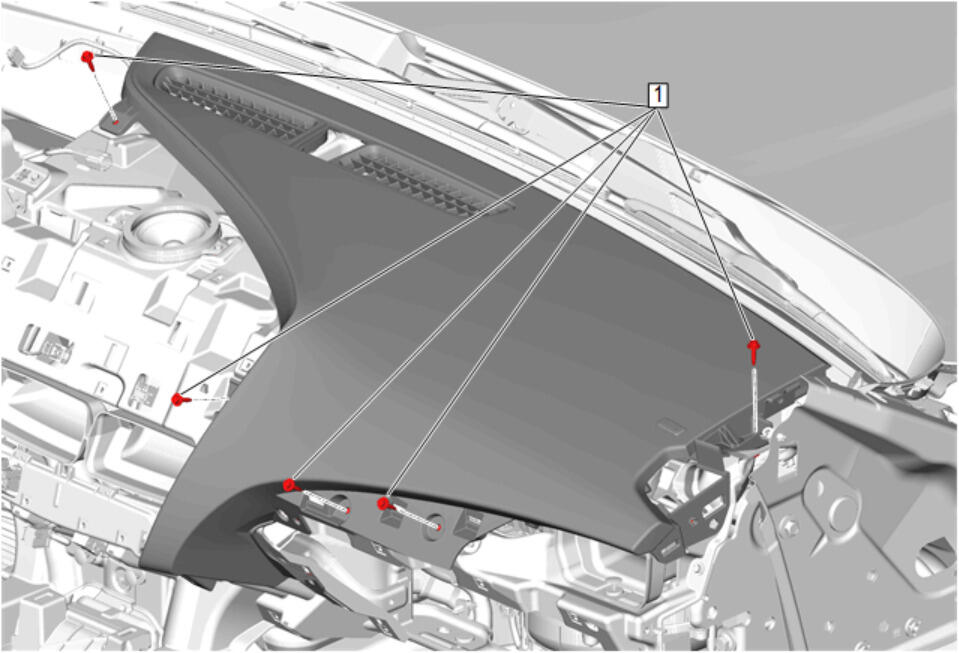

Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [ 5x ] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

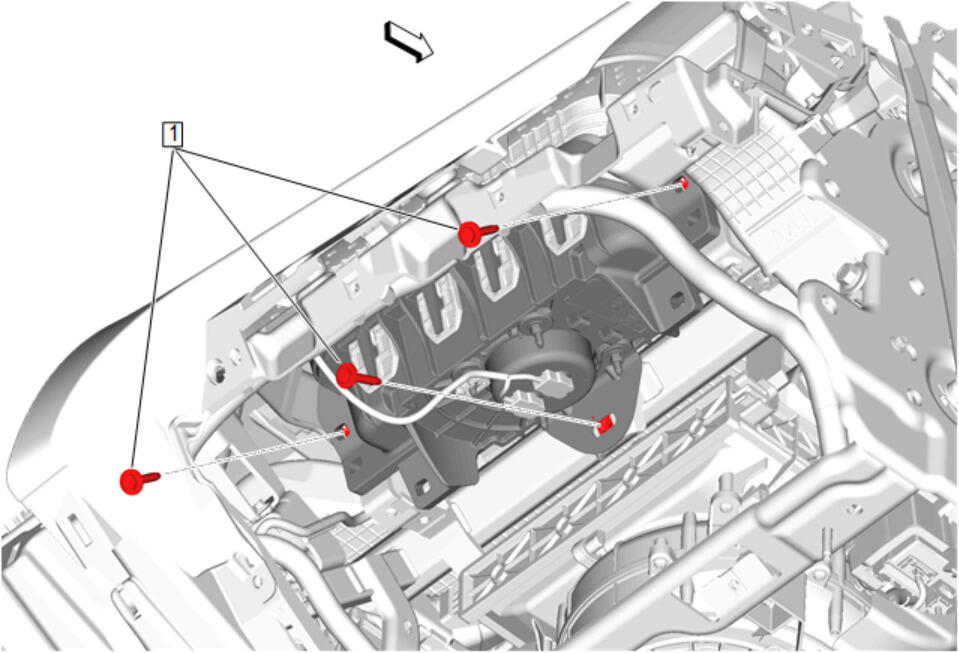

Instrument Panel Airbag Bolt (1) - Install and tighten [ 3x ] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Install the right side window defogger outlet grille. Side Window Defogger Outlet Grille Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Center Support Bracket (1) - Install - Instrument Panel Center Support Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Center Trim Panel (1) - Install - Instrument Panel Lower Center Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Trim Plate (2) - Install - Front Floor Console Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Heater and Air Conditioning User Interface Control (2) - Install - Heater and Air Conditioning User Interface Control Replacement
Hazard Warning Switch - Install - Hazard Warning Switch Replacement (3 and 5 Button) , or Hazard Warning Switch Replacement (9 Button)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Compartment (2) - Install - Instrument Panel Compartment Replacement
Install the right windshield garnish molding. Windshield Garnish Molding Replacement
