Installation Procedure

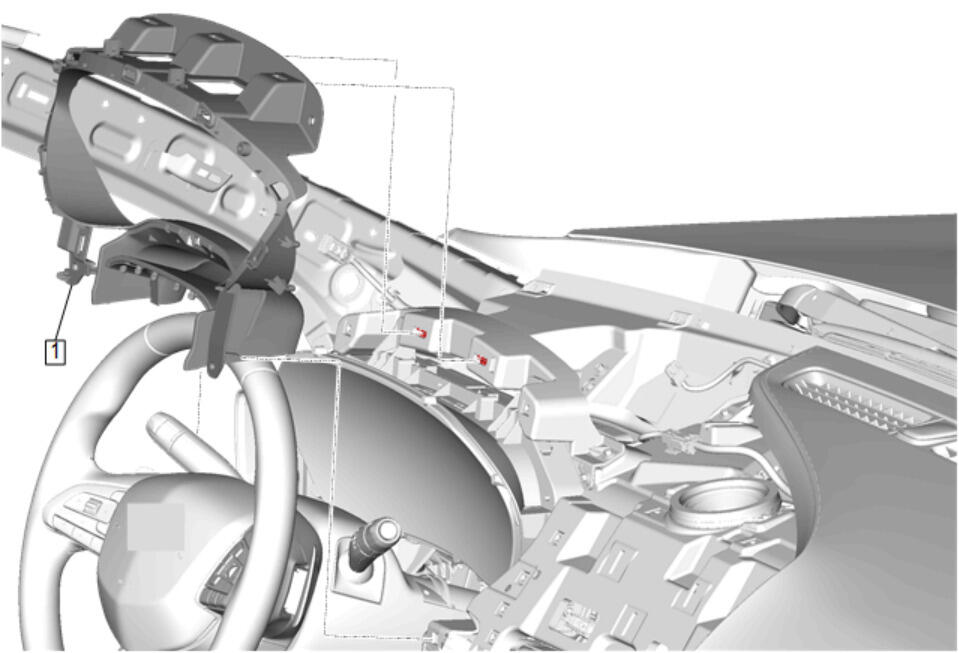

  1. GM5330445Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad (1) - Install

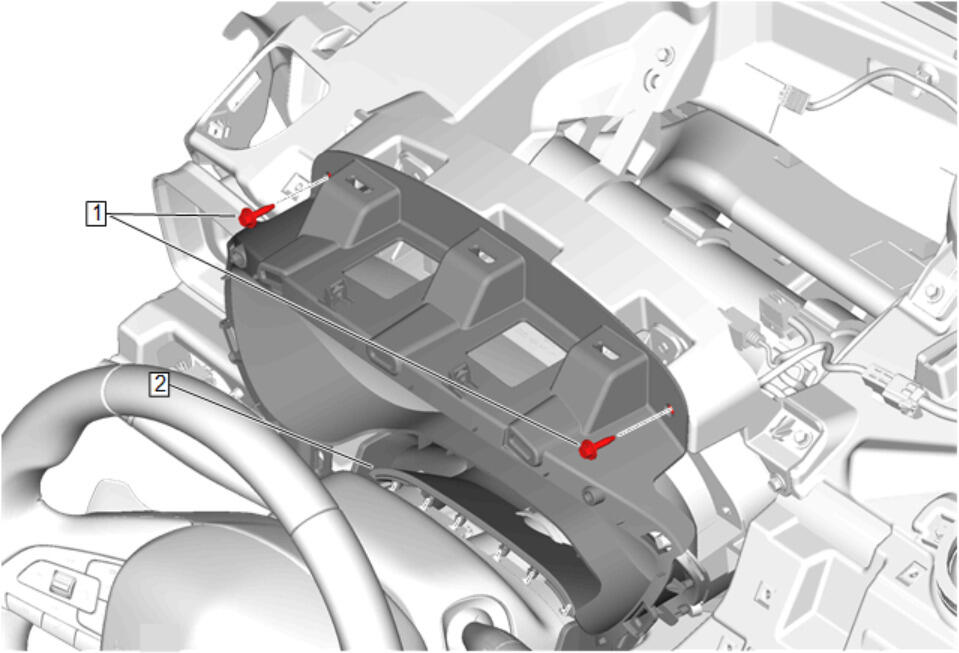

  2. GM5330443Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Trim Pad Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb in)

  3. GM5318304Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel - Left Side (3) - Install - Instrument Panel Upper Trim Panel Replacement - Left Side

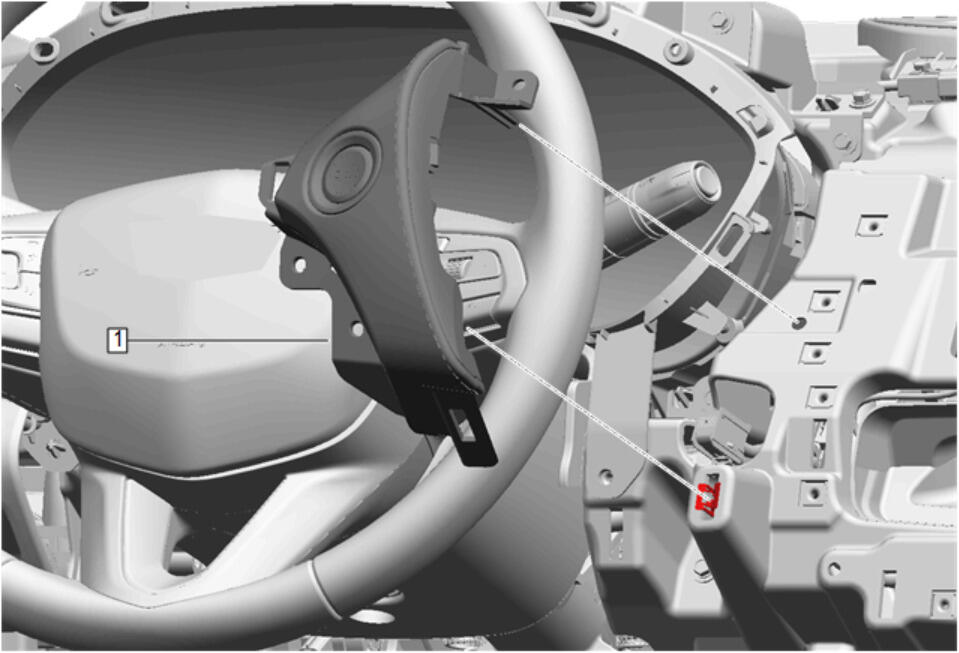

  4. GM5329132Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Pad (1) - Install - Instrument Panel Center Trim Pad Replacement - Left Side

  5. GM5315161Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate Applique (1) - Install - Instrument Panel Cluster Trim Plate Applique Replacement

  6. GM5314053Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Instrument Cluster Hood (2) - Install - Instrument Panel Instrument Cluster Hood Replacement
