Installation Procedure

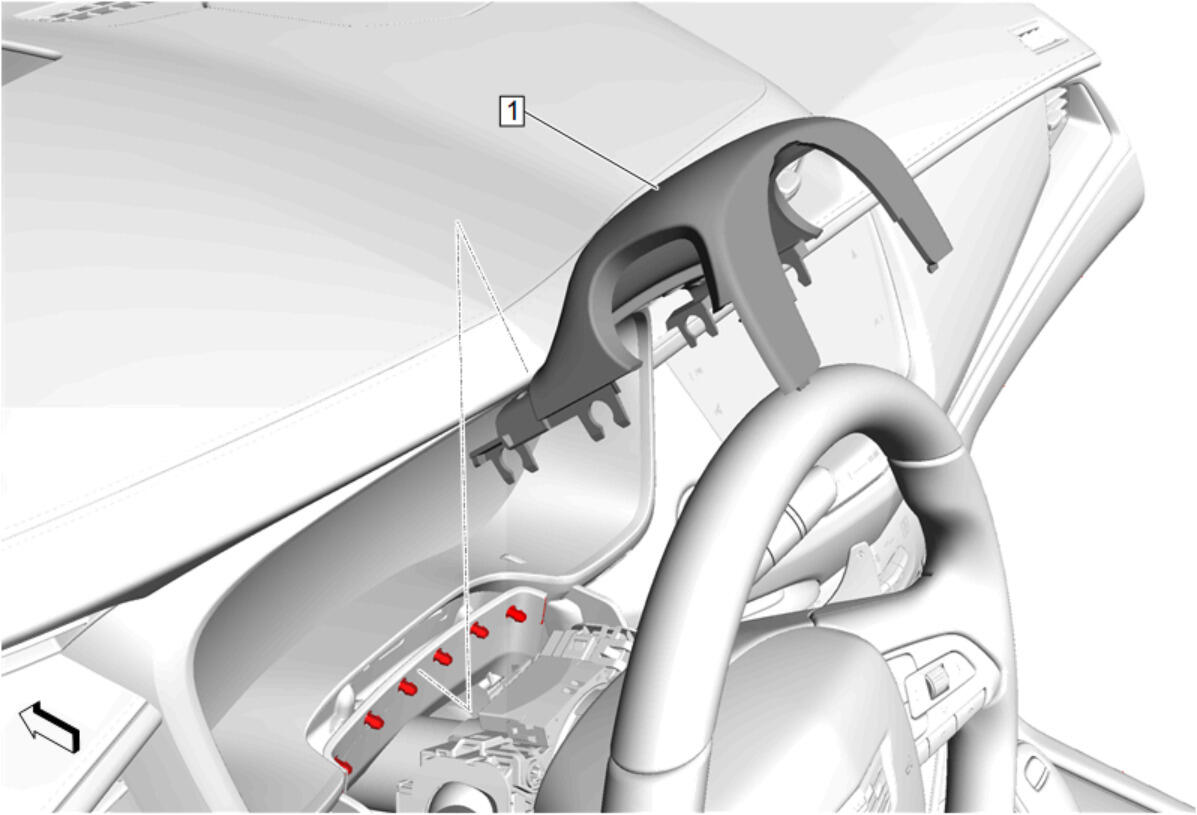

  1. GM5228029Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Upper Trim Cover (1) - Install

  2. GM5228028Courtesy of GENERAL MOTORS COMPANY

    Engage the 6 shroud retaining tabs (2) to the instrument panel steering column upper trim cover (1).

  3. Reposition the instrument panel steering column upper trim cover (1) downward and fully engage the integral tabs.
