Installation Procedure

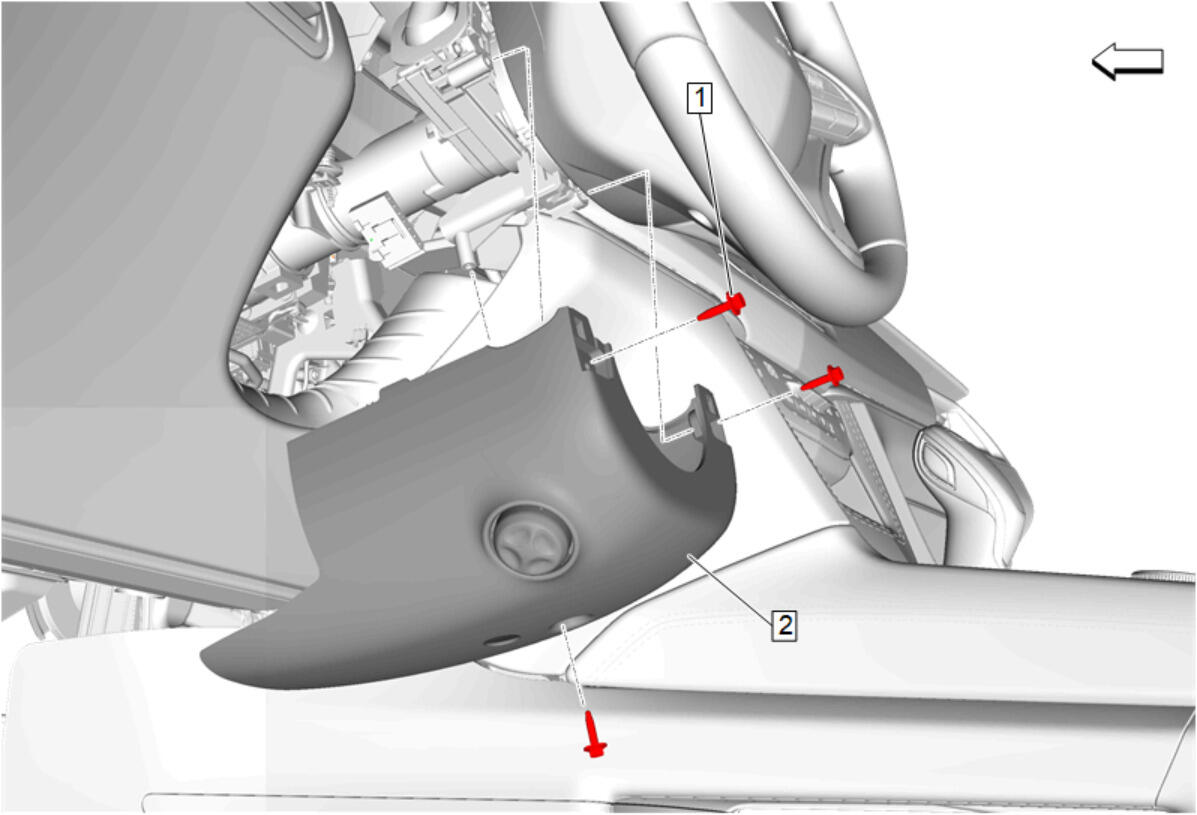

  1. GM5228072Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Instrument Panel Steering Column Lower Trim Cover (2) - Install
  3. Rotate the steering wheel left and right for access to install the instrument panel steering column lower trim cover bolts (1).
    4. CAUTION:

    Refer to Fastener Caution .

  4. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten [ 3x ] 2.5 N.m (22 lb in)

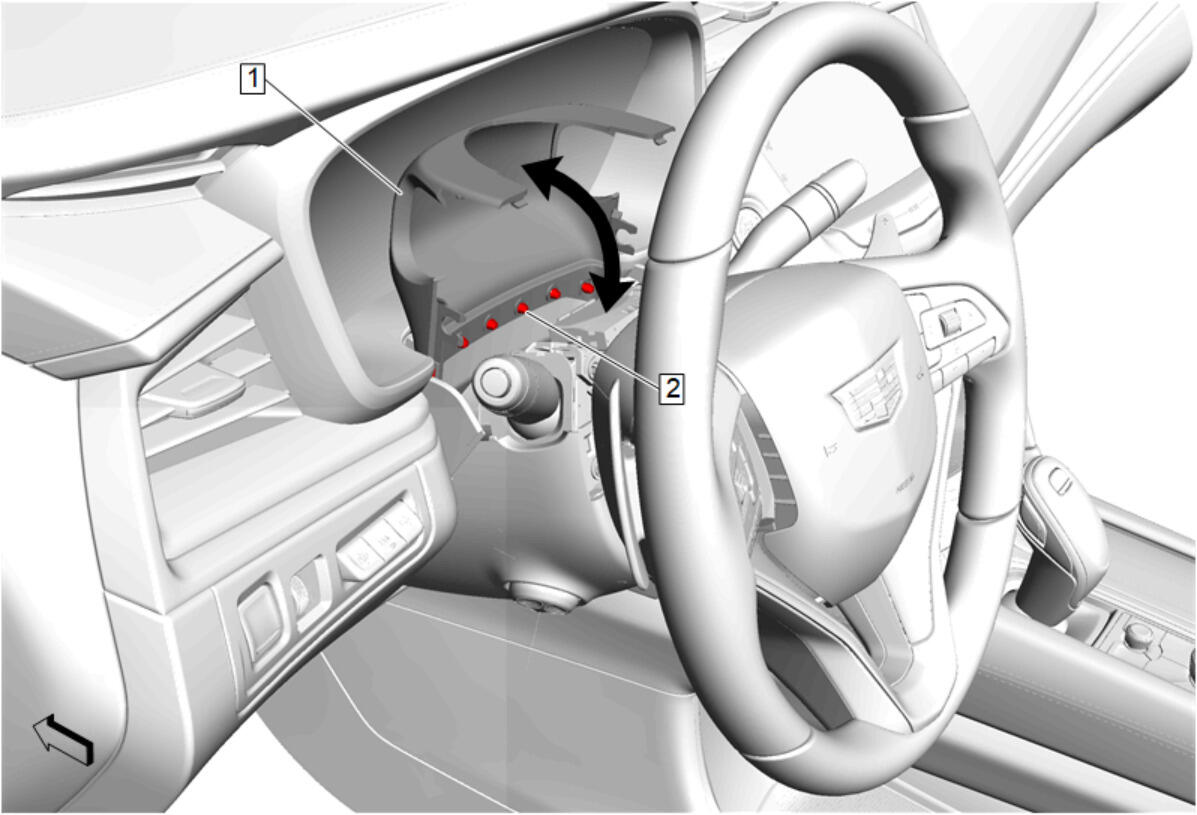

  5. GM5228028Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Upper Trim Cover (1) - Install - Instrument Panel Steering Column Upper Trim Cover Replacement (without UKL) , or Instrument Panel Steering Column Upper Trim Cover Replacement (with UKL)
