Installation Procedure

Connect and position the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

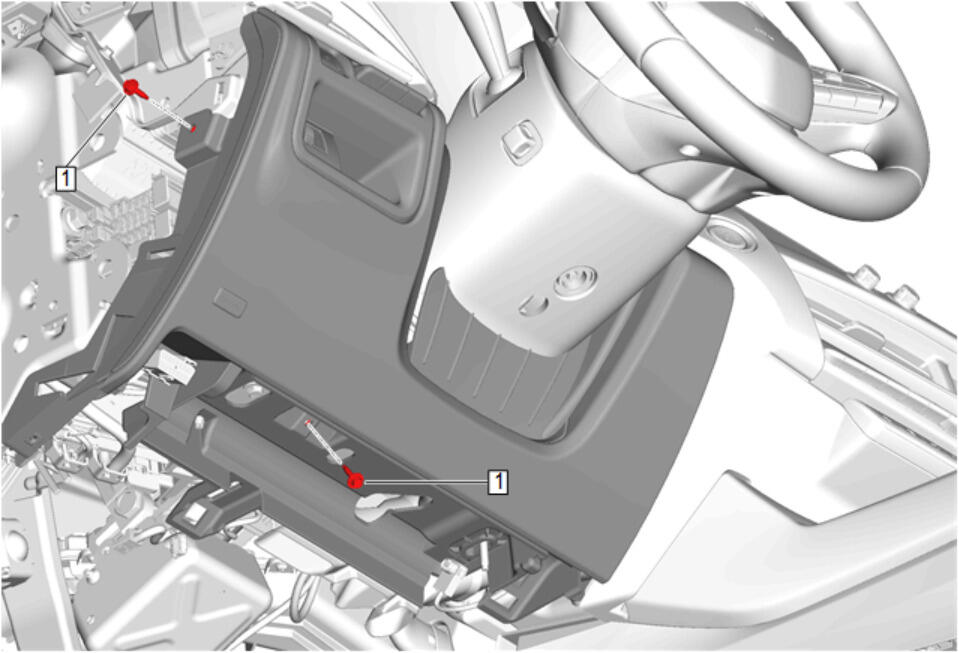

Instrument Panel Knee Bolster Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Data Link Connector Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator - Left Side (1) - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Airbag - Driver Side (2) - Install - Instrument Panel Lower Airbag Replacement - Driver Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover (1) - Install - Instrument Panel Outer Trim Cover Replacement
