Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

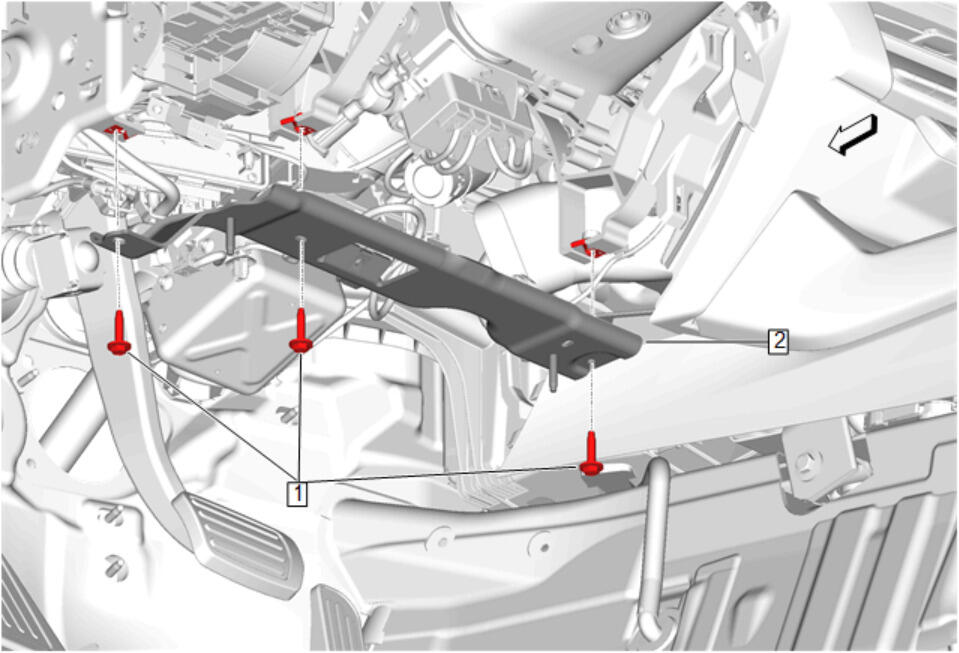

Instrument Panel Knee Bolster Deflector (2) - Install

CAUTION:

Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten [ 3x ] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator - Left Side (1) - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Airbag - Driver Side (2) - Install - Instrument Panel Lower Airbag Replacement - Driver Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover (1) - Install - Instrument Panel Outer Trim Cover Replacement
