Installation Procedure

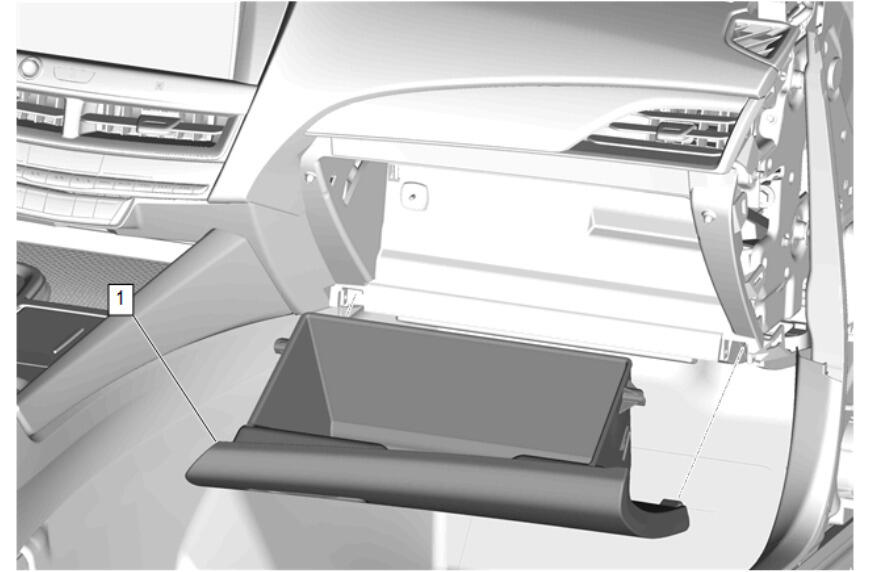

  1. GM5453445Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Install

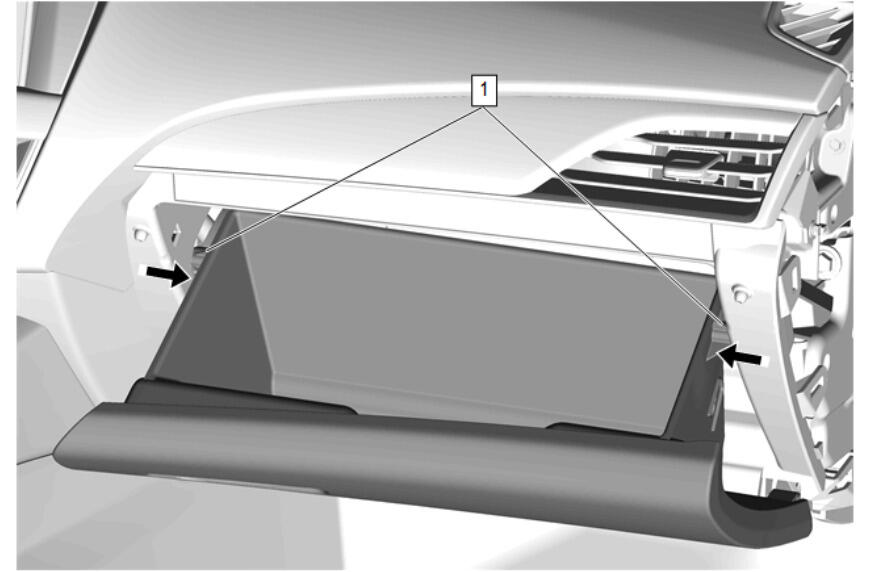

  2. GM5453444Courtesy of GENERAL MOTORS COMPANY

    Push in the instrument panel compartment door stop (1) to engage the door to the instrument panel compartment frame.

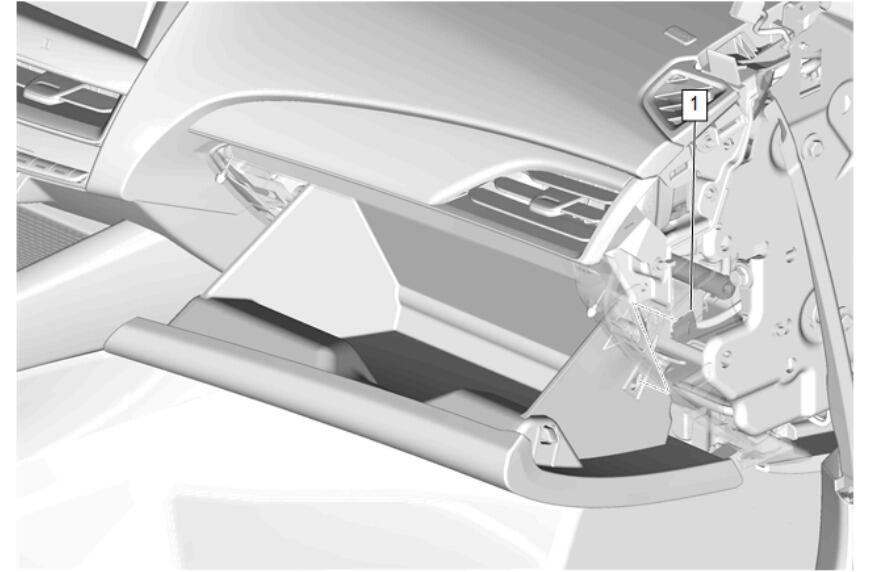

  3. GM5453443Courtesy of GENERAL MOTORS COMPANY

    Connect the instrument panel compartment door dampener clip (1) to the door.

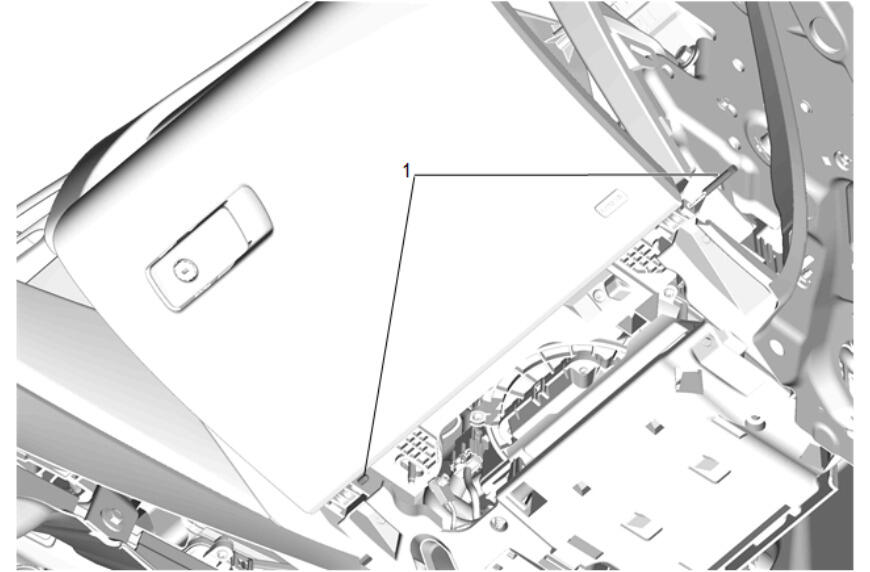

  4. GM5453446Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door Dampener Pin (1) - Install [ 2x ]

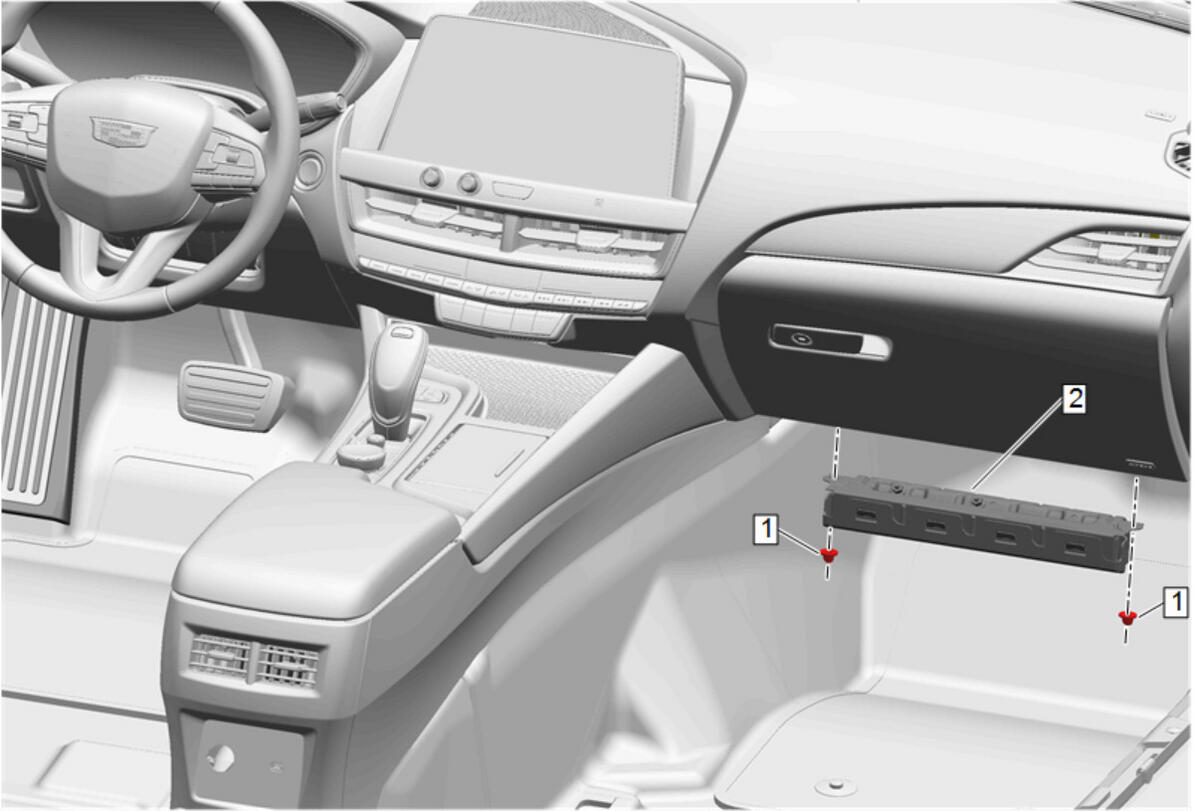

  5. GM5314084Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag - Passenger Side (2) - Install - Instrument Panel Lower Airbag Replacement - Passenger Side

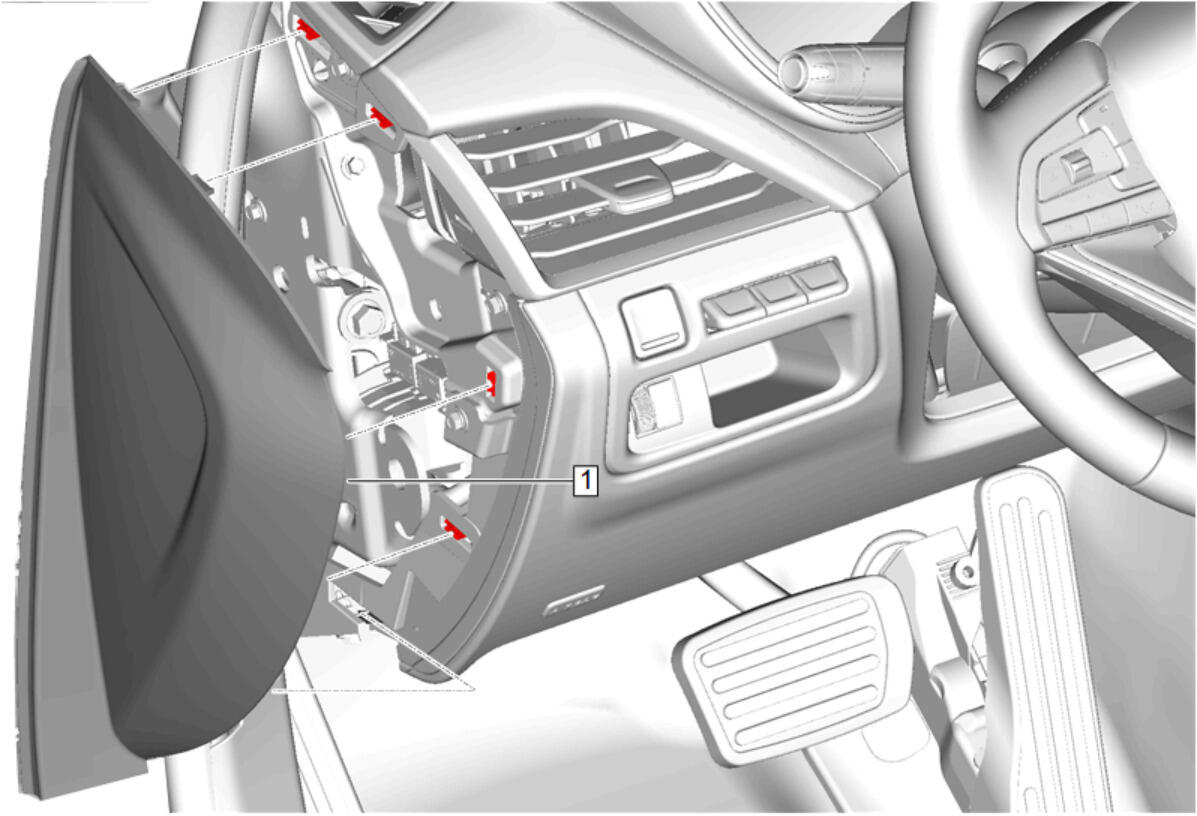

  6. GM5309230Courtesy of GENERAL MOTORS COMPANY

    Install the right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement
