Instrument Panel Cluster Trim Plate Replacement

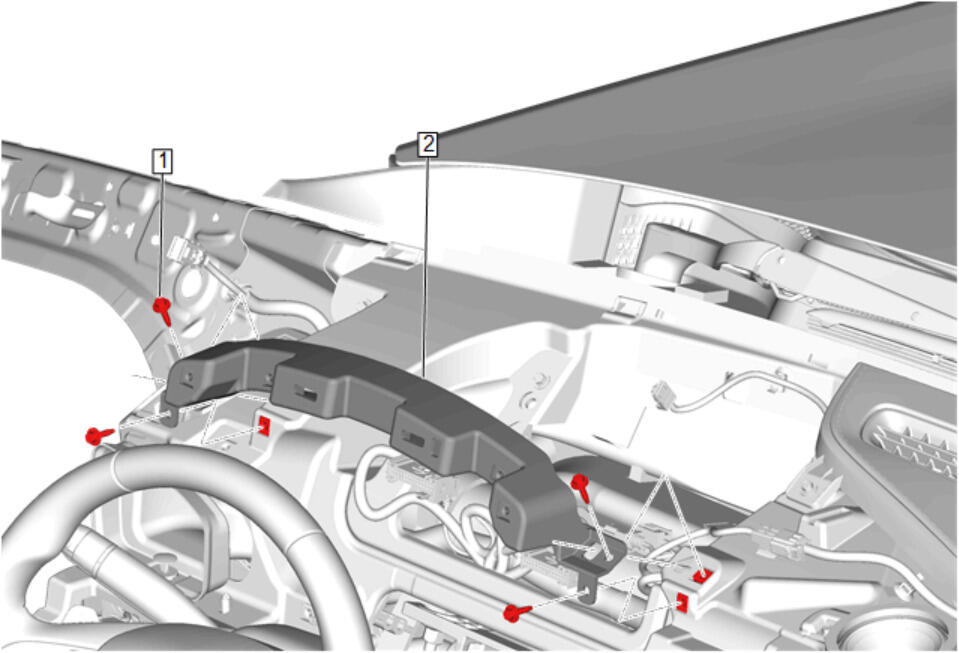

GM5330848Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Cluster Replacement
1 Instrument Panel Cluster Trim Plate Bolt [ 4x ]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Cluster Trim Plate
