Installation Procedure

Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Center Trim Pad (2) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

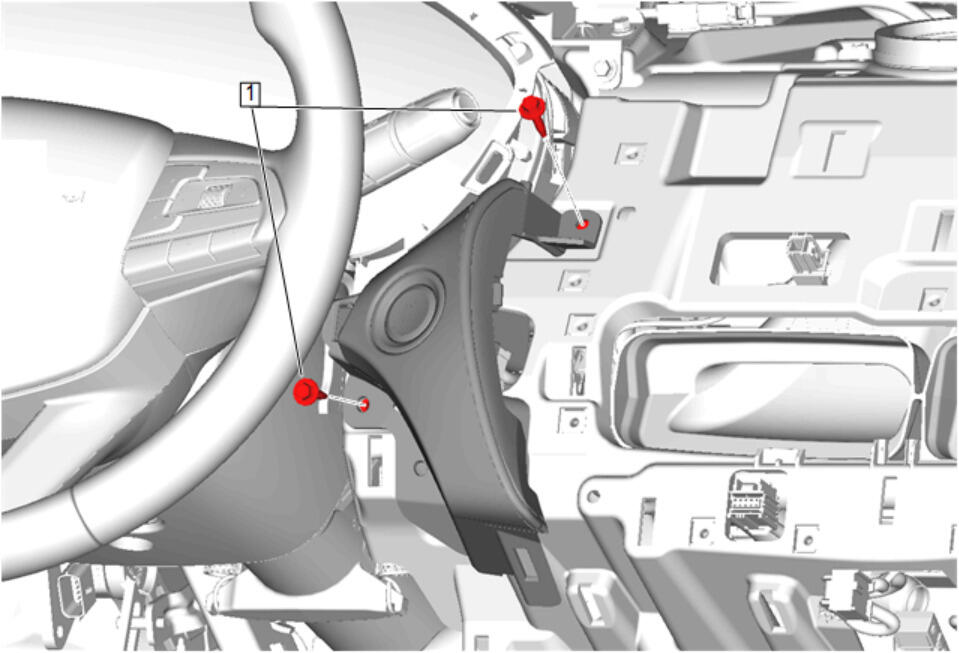

Instrument Panel Center Trim Pad Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Center Trim Panel (1) - Install - Instrument Panel Lower Center Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Trim Plate (2) - Install - Front Floor Console Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Heater and Air Conditioning User Interface Control (2) - Install - Heater and Air Conditioning User Interface Control Replacement
Hazard Warning Switch - Install - Hazard Warning Switch Replacement (3 and 5 Button) , or Hazard Warning Switch Replacement (9 Button)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Compartment (2) - Install - Instrument Panel Compartment Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (2) - Install - Instrument Panel Knee Bolster Replacement
