Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

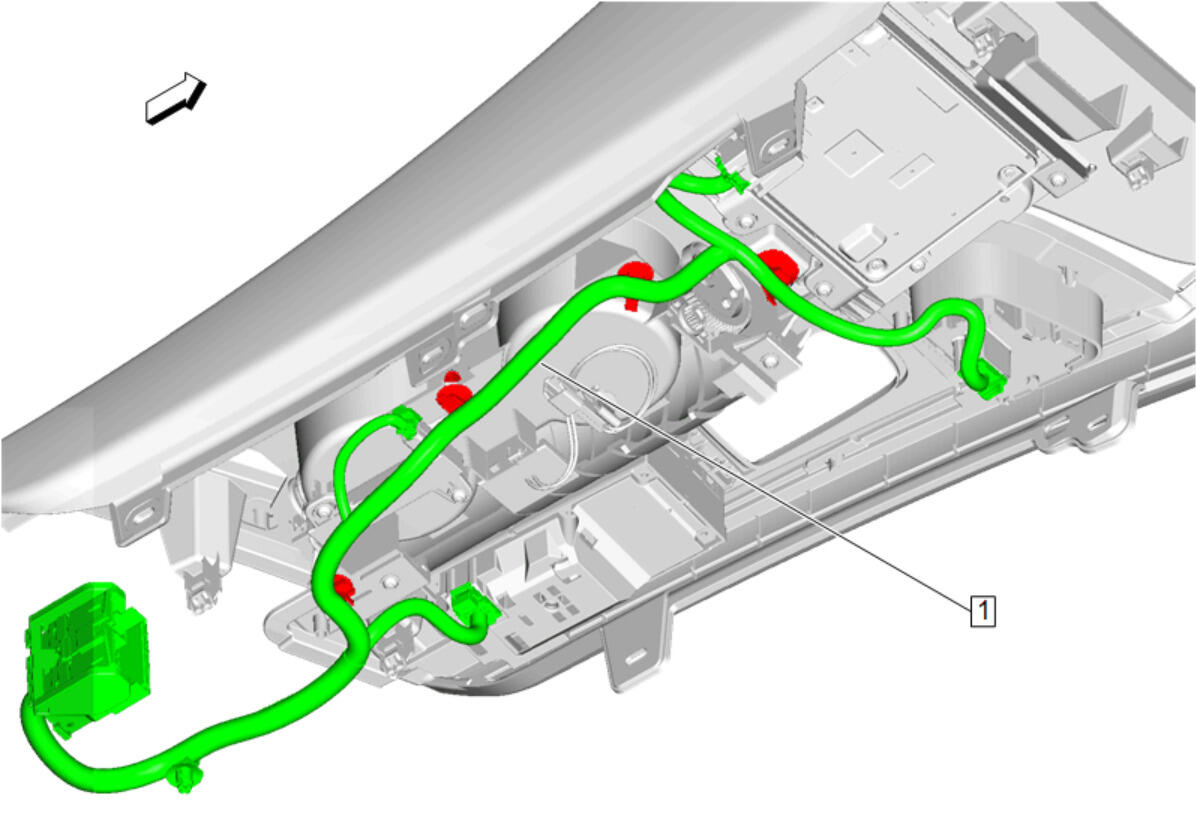

Front Floor Console Wiring Harness Extension Harness (1) - Install
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Trim Plate (2) - Install - Front Floor Console Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Armrest (2) - Install - Front Floor Console Armrest Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Trim Panel (2) - Install - Front Floor Console Rear Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side
