Removal Procedure

  1. GM5313279Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Remove - Front Floor Console Extension Panel Replacement - Right Side

  2. GM5313277Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Remove - Front Floor Console Extension Panel Replacement - Left Side

  3. GM5313390Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Panel (2) - Remove - Front Floor Console Rear Trim Panel Replacement

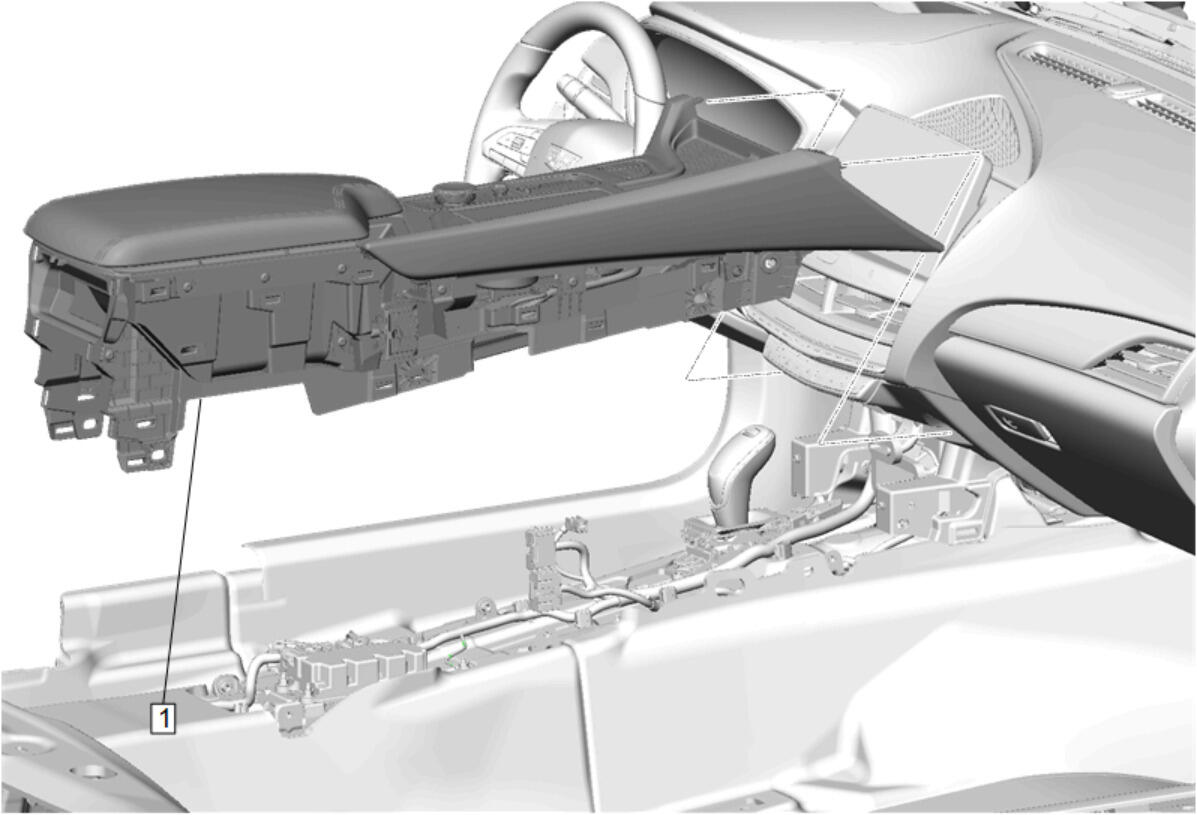

  4. GM5332796Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    It is only necessary to slide the front floor console back to clear the front floor console trim plate guide pins.

    Front Floor Console (1) - Reposition - Front Floor Console Removal and Installation

  5. GM5323462Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest (2) - Remove - Front Floor Console Armrest Replacement

  6. GM5324500Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate Bolt (1) - Remove [ 5x ]

  7. Disconnect the electrical connectors.
  8. Front Floor Console Trim Plate (2) - Remove
  9. Transfer components as necessary.
