Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

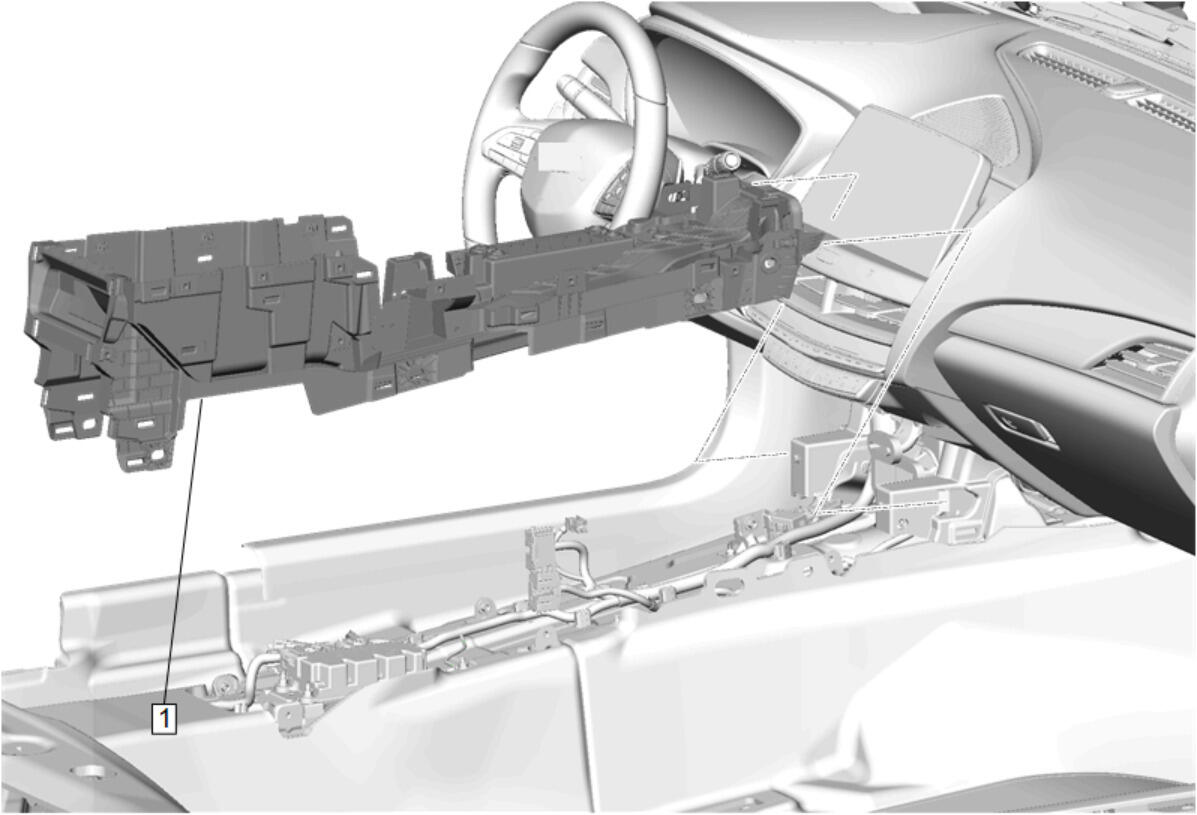

With the aid of an assistant, linstall the front floor console retainer (1).
Courtesy of GENERAL MOTORS COMPANY

Connect the instrument panel wiring harness to the retainer.

CAUTION:

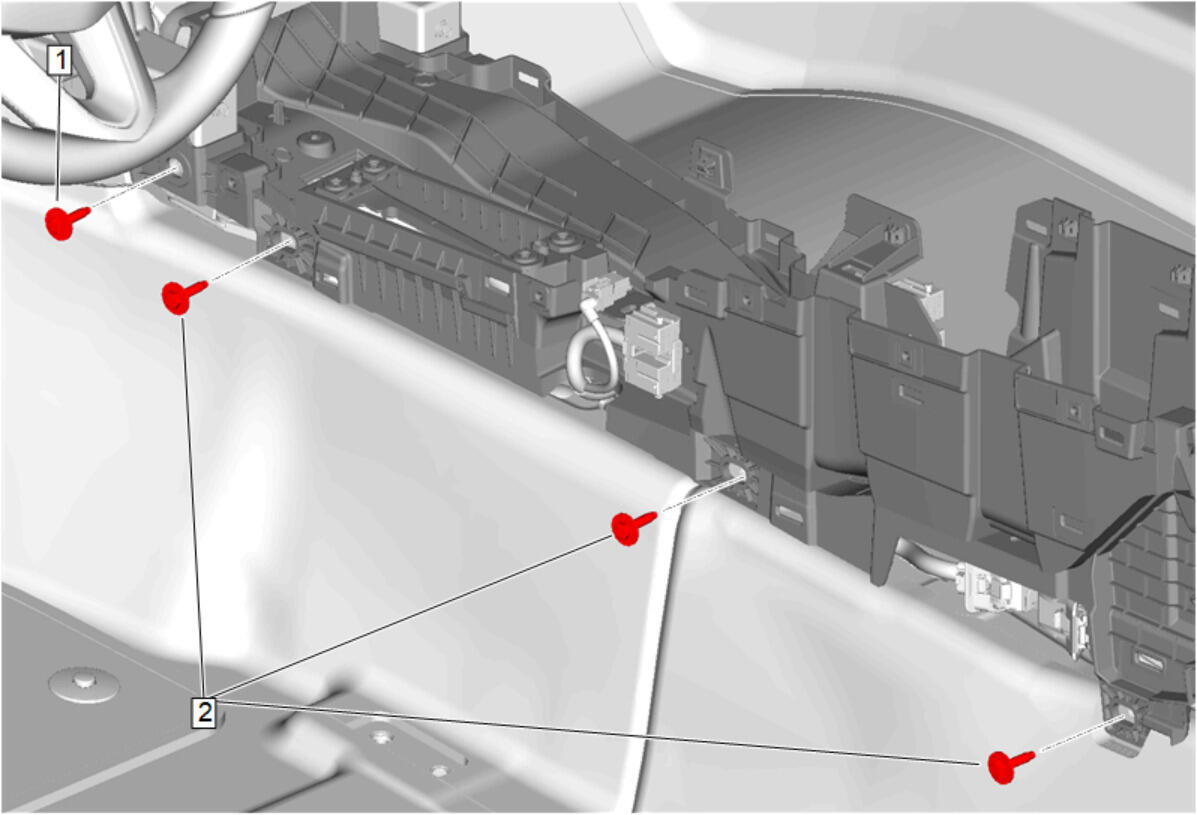

Front Floor Console Bracket Bolt (1) - Install and tighten 7 N.m (62 lb in)
Front Floor Console Bolt (2) - Install and tighten [ 3x ] 7 N.m (62 lb in)
Courtesy of GENERAL MOTORS COMPANY

Connect the instrument panel wiring harness to the retainer.

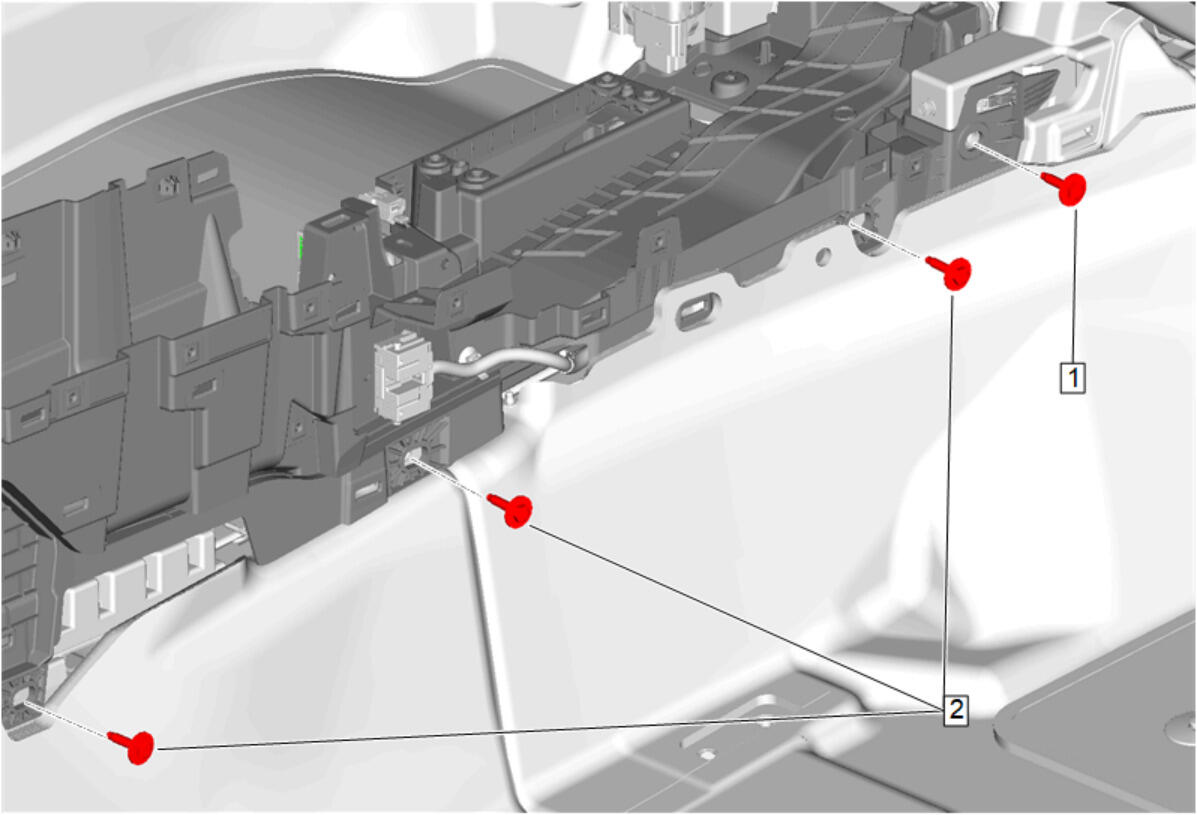

Front Floor Console Bracket Bolt (1) - Install and tighten 7 N.m (62 lb in)
Front Floor Console Bolt (2) - Install and tighten [ 3x ] 7 N.m (62 lb in)
Courtesy of GENERAL MOTORS COMPANY

Automatic Transmission Control (2) - Install - Automatic Transmission Control Replacement
Courtesy of GENERAL MOTORS COMPANY

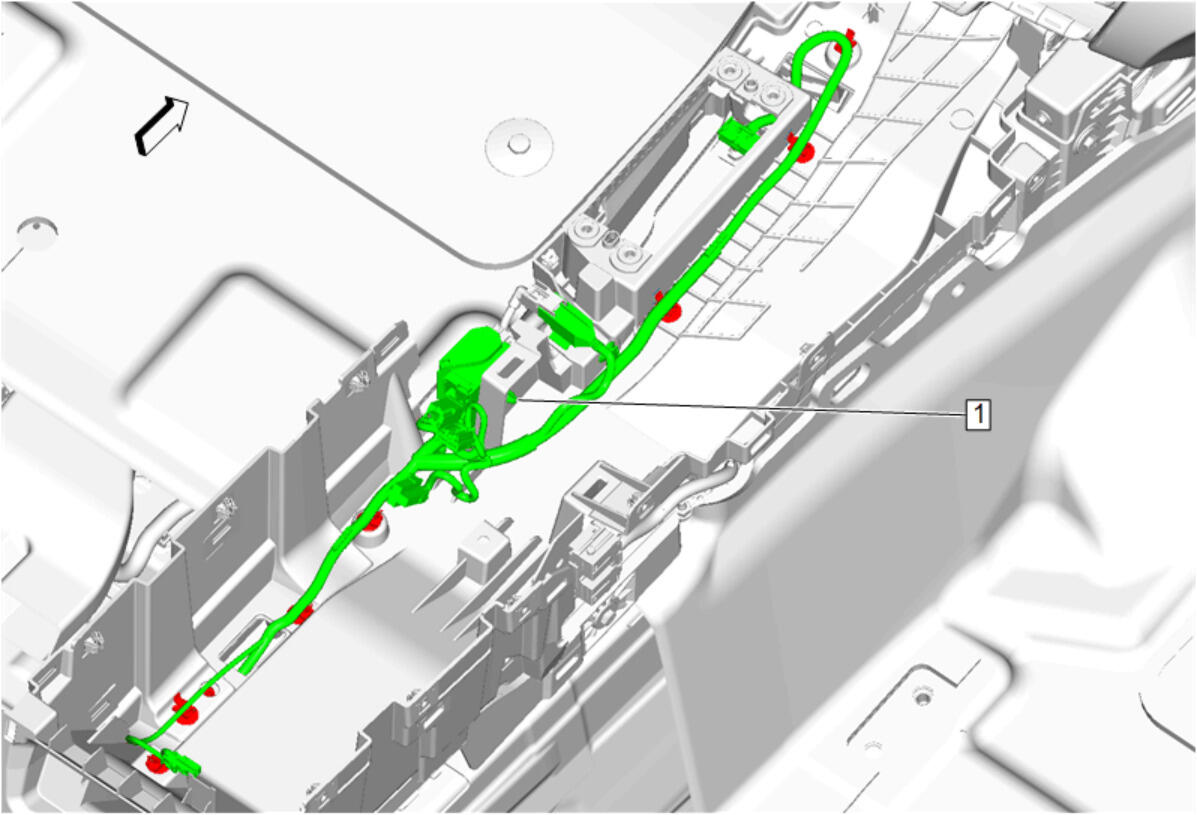

Front Floor Console Wiring Harness (1) - Install - Front Floor Console Wiring Harness Replacement
Courtesy of GENERAL MOTORS COMPANY

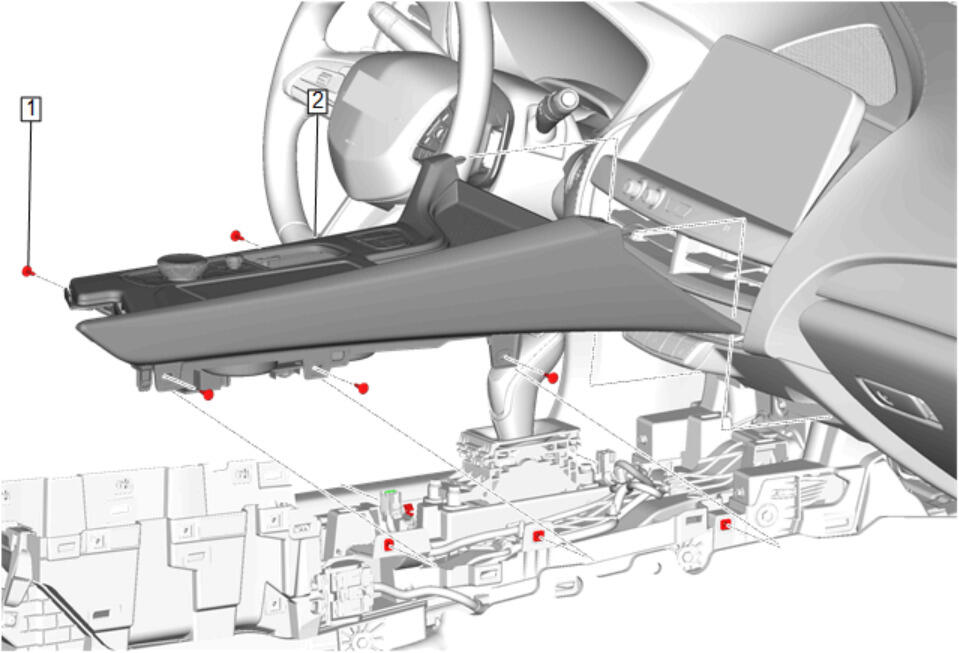

Front Floor Console Trim Plate (2) - Install - Front Floor Console Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

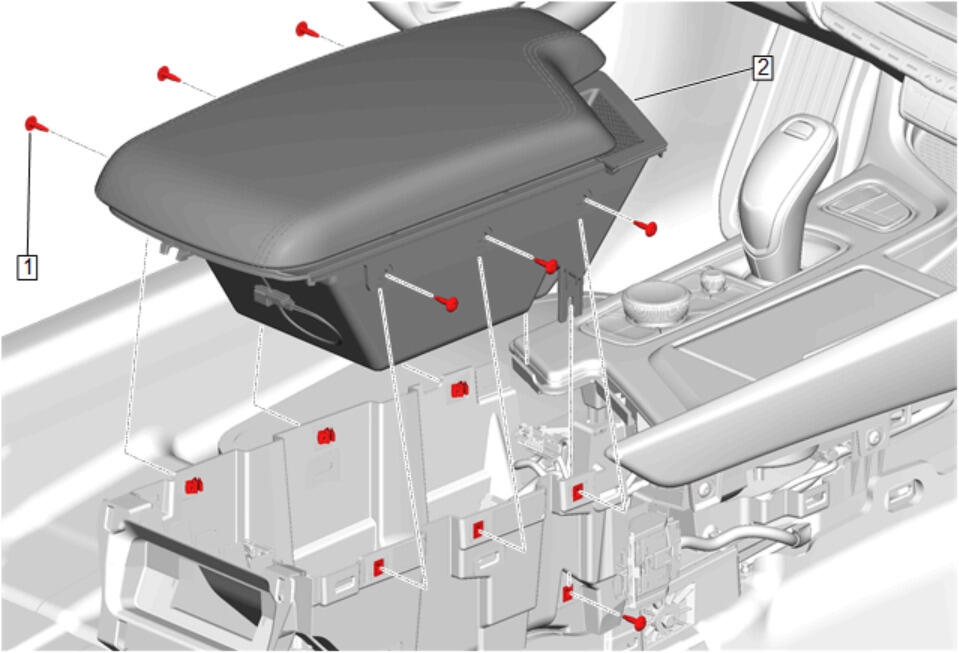

Front Floor Console Armrest (2) - Install - Front Floor Console Armrest Replacement
Courtesy of GENERAL MOTORS COMPANY

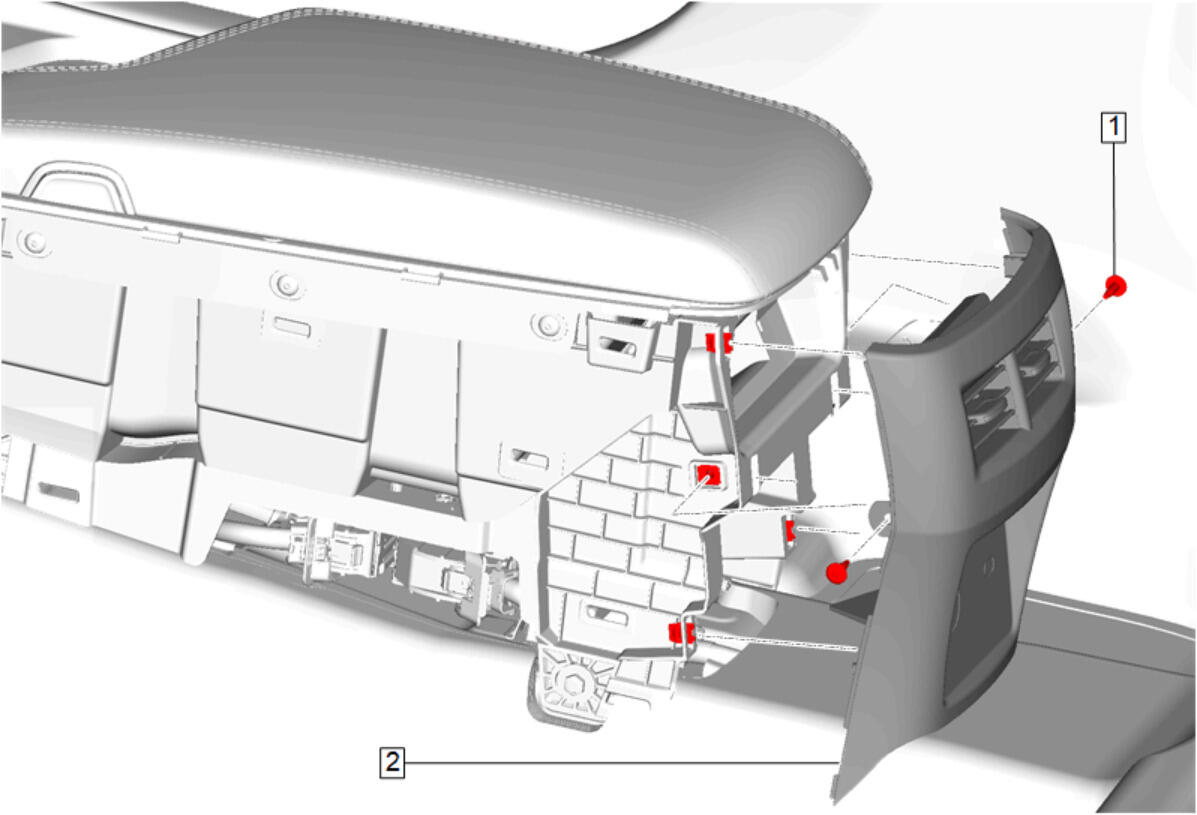

Front Floor Console Rear Trim Panel (2) - Install - Front Floor Console Rear Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

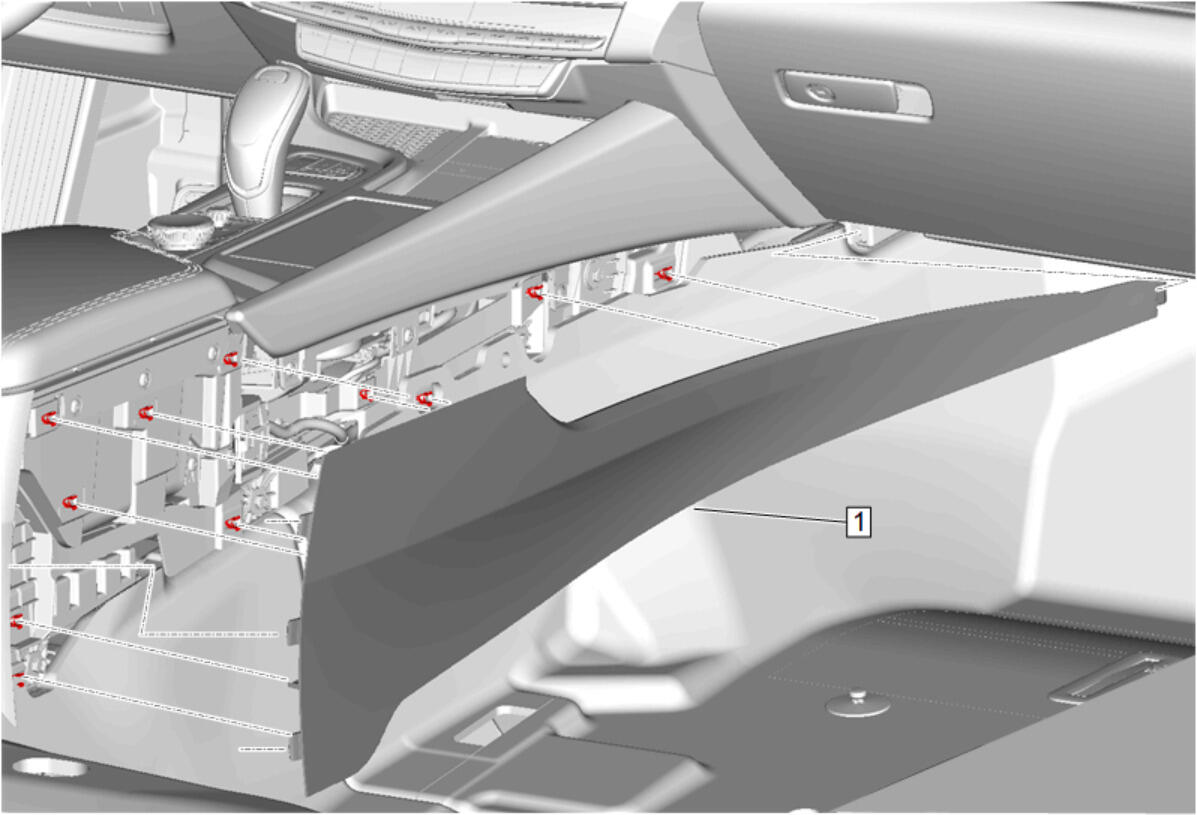

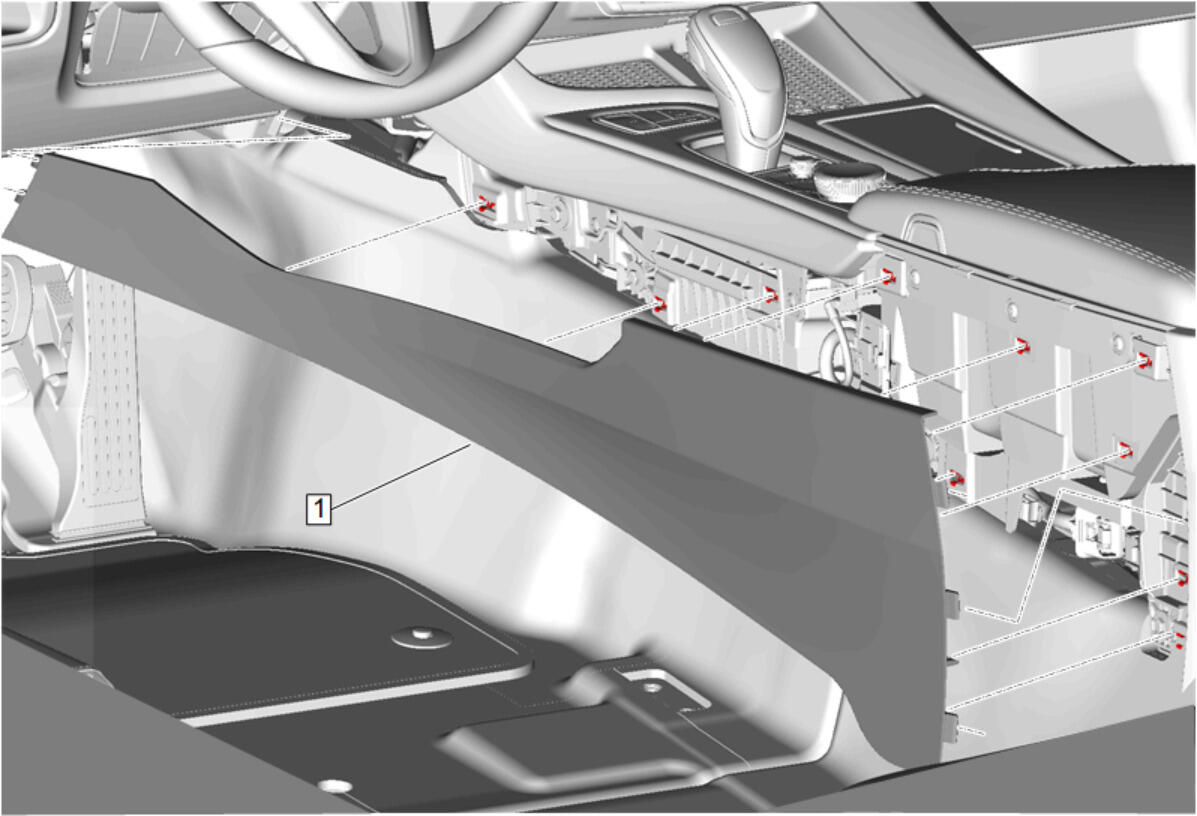

Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side
