Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, install the console to the vehicle. (1)
Courtesy of GENERAL MOTORS COMPANY

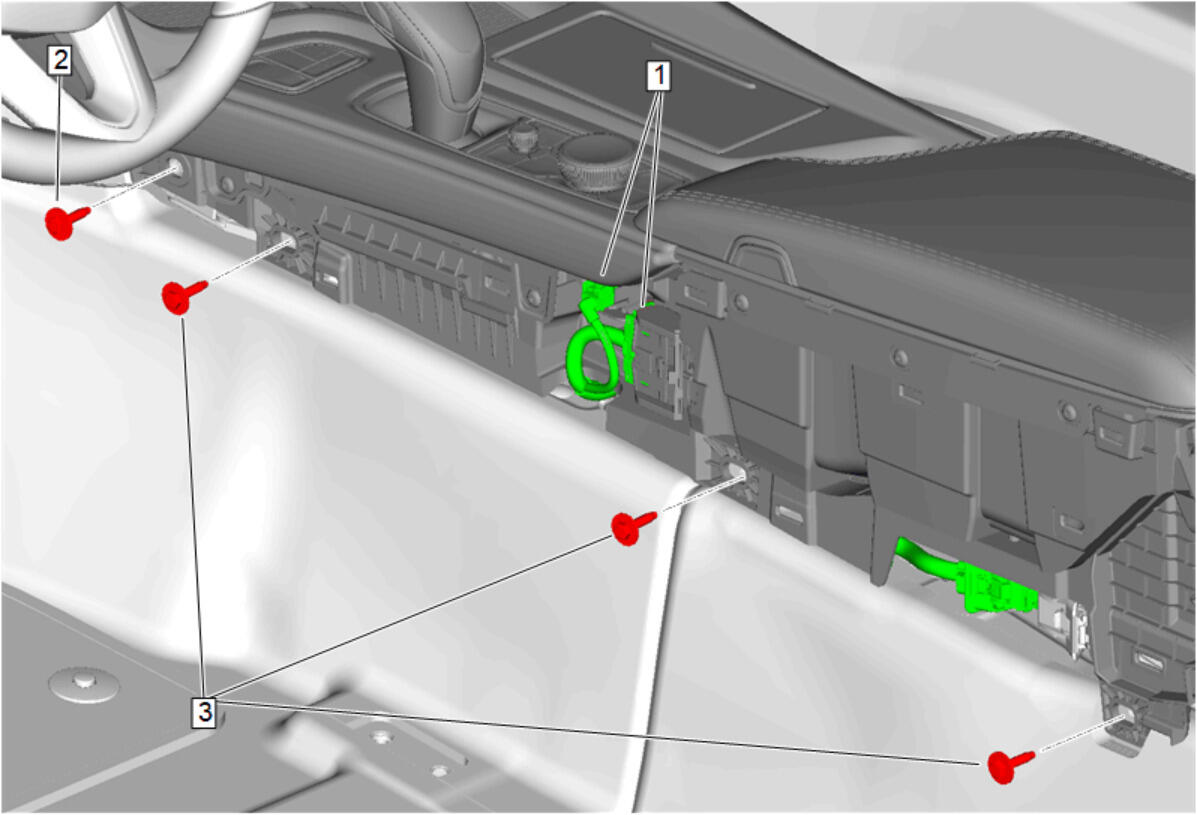

Connect the electrical connectors (1) to the front floor console wiring harness.

CAUTION:

Front Floor Console Bracket Bolt (2) - Install and tighten 7 N.m (62 lb in)
Front Floor Console Bolt (3) - Install and tighten [ 3x ] 7 N.m (62 lb in)
Courtesy of GENERAL MOTORS COMPANY

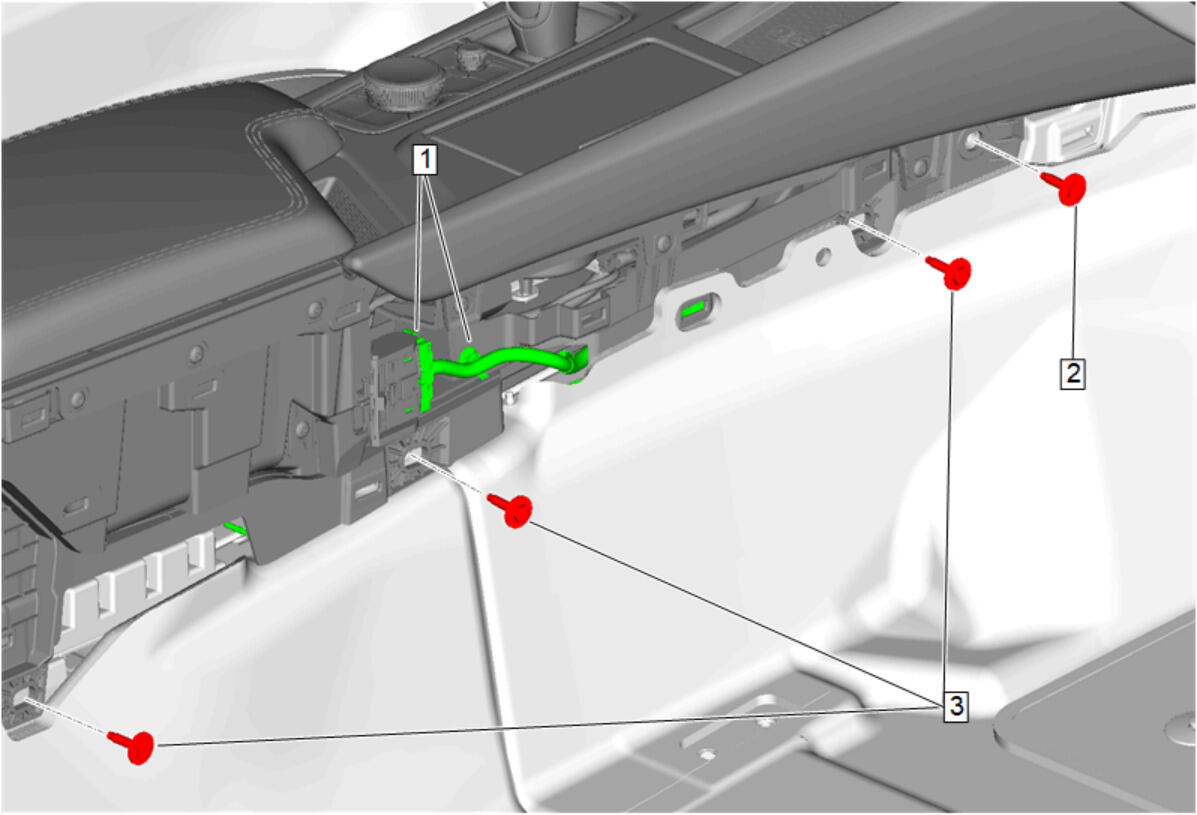

Connect the electrical connectors (1) to the front floor console wiring harness and automatic transmission electronic control.
Front Floor Console Bracket Bolt (2) - Install and tighten 7 N.m (62 lb in)
Front Floor Console Bolt (3) - Install and tighten [ 3x ] 7 N.m (62 lb in)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Trim Panel (2) - Install - Front Floor Console Rear Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side
