Front Floor Console Armrest Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

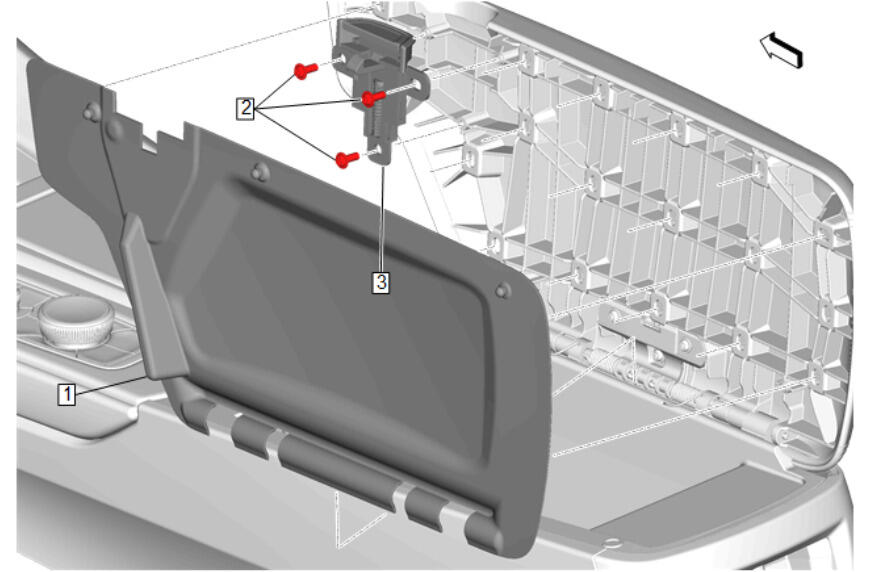

Callout	Component Name
1	Front Floor Console Inner Armrest NOTE: When replacing the front floor console inner armrest, ensure that it is fully seated and flush to the outer armrest. Procedure Using a suitable plastic trim tool, release the retaining tabs. Lift the front floor console inner armrest up and out.
2	Front Floor Console Armrest Latch Bolt [ 3x ] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Front Floor Console Armrest Latch

Callout

Component Name

Front Floor Console Inner Armrest

NOTE:

When replacing the front floor console inner armrest, ensure that it is fully seated and flush to the outer armrest.

Procedure

Front Floor Console Armrest Latch Bolt [ 3x ]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Floor Console Armrest Latch
