Rear Side Door Water Deflector Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Side Door Trim Replacement |
|

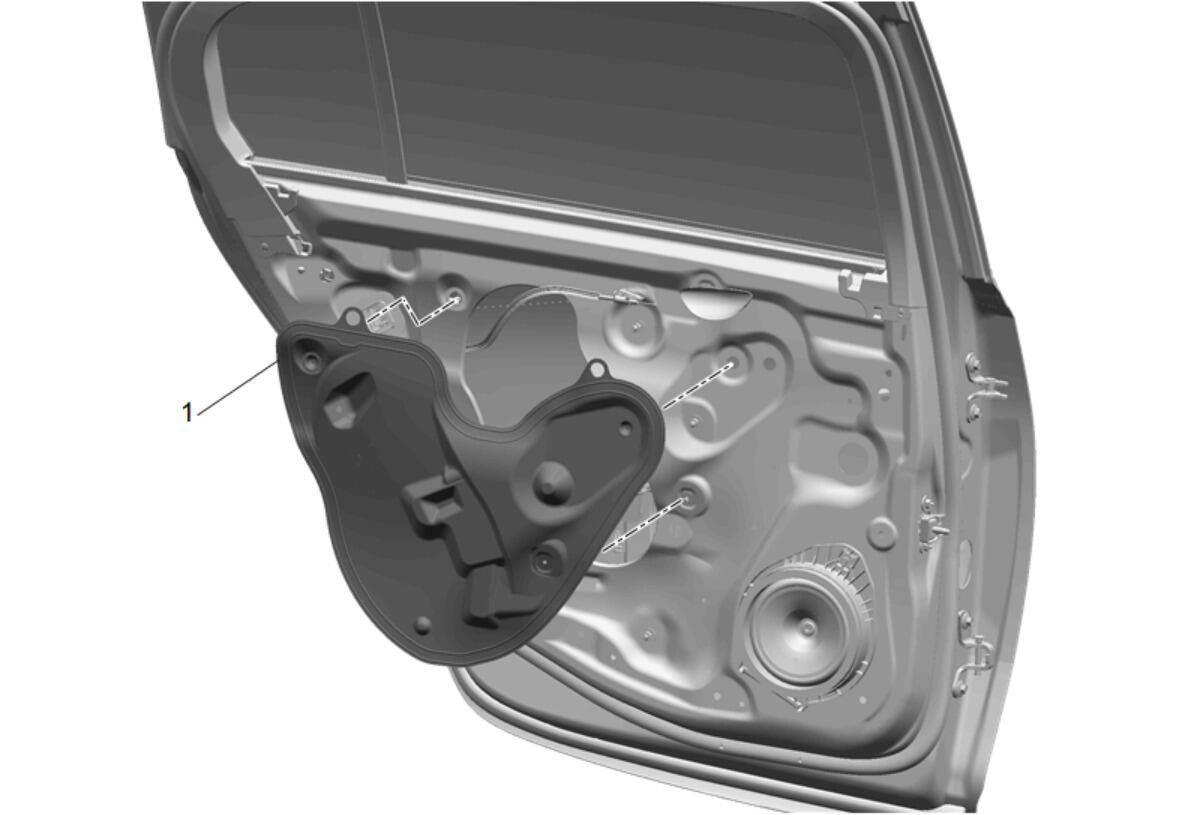

| 1 | Rear Side Door Water Deflector
NOTE:
When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof. Procedure Route rear side door inside handle cable through hole in deflector assembly while removing it from the door. |
