Hood Insulator Replacement

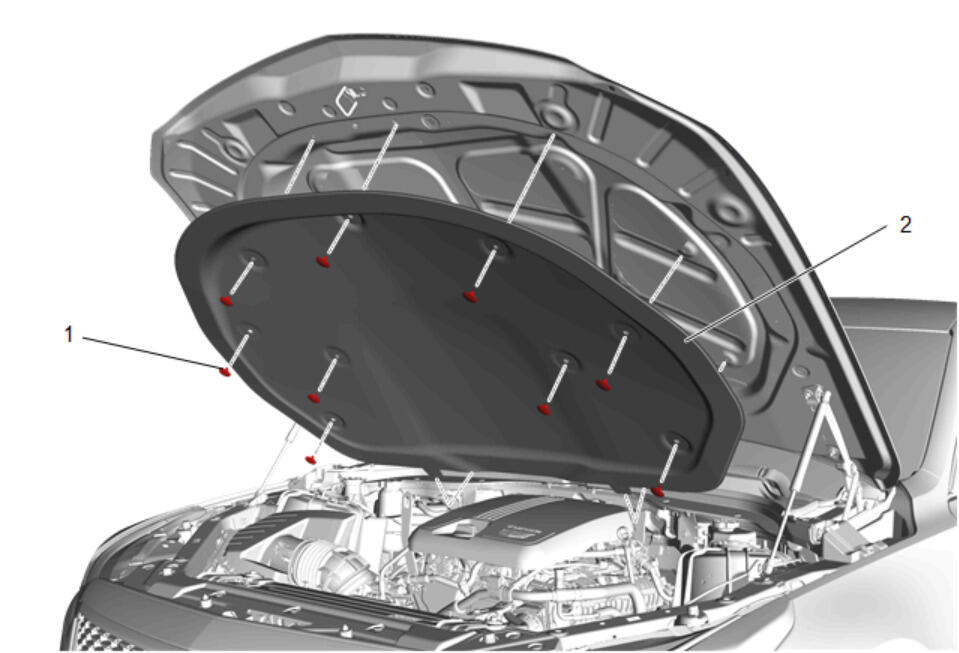

GM5300352Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Hood Insulator Retainer [ 9x ]
2 Hood Insulator
NOTE:

Ensure the three lower integral tabs are secure to the hood.
