Hazard Warning Switch Replacement (3 and 5 Button)

Courtesy of GENERAL MOTORS COMPANY

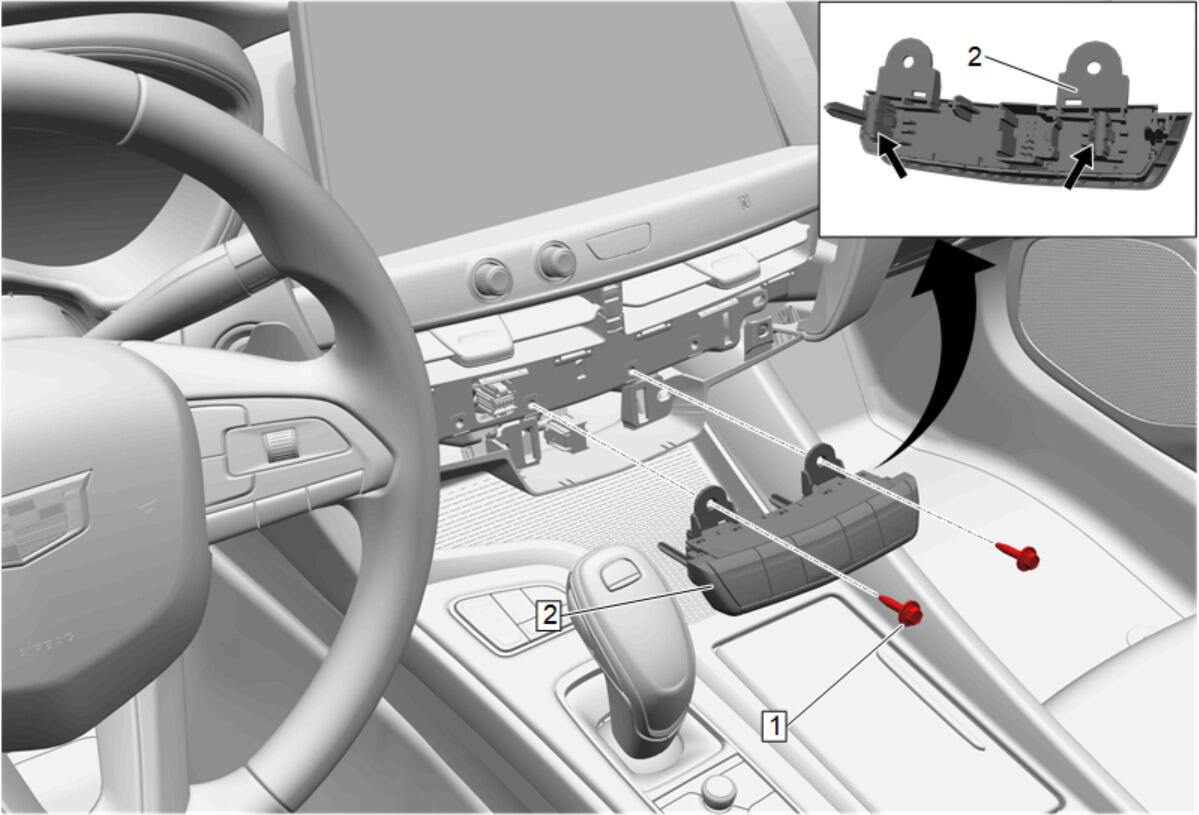

Callout	Component Name
Preliminary Procedure Heater and Air Conditioning User Interface Control Replacement
1	Hazard Warning Switch Bolt [ 2x ] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Hazard Warning Switch Procedure Pull straight back to release the hazard warning switch. Disconnect the electrical connector.

Callout

Component Name

Hazard Warning Switch Bolt [ 2x ]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Hazard Warning Switch

Procedure
