Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

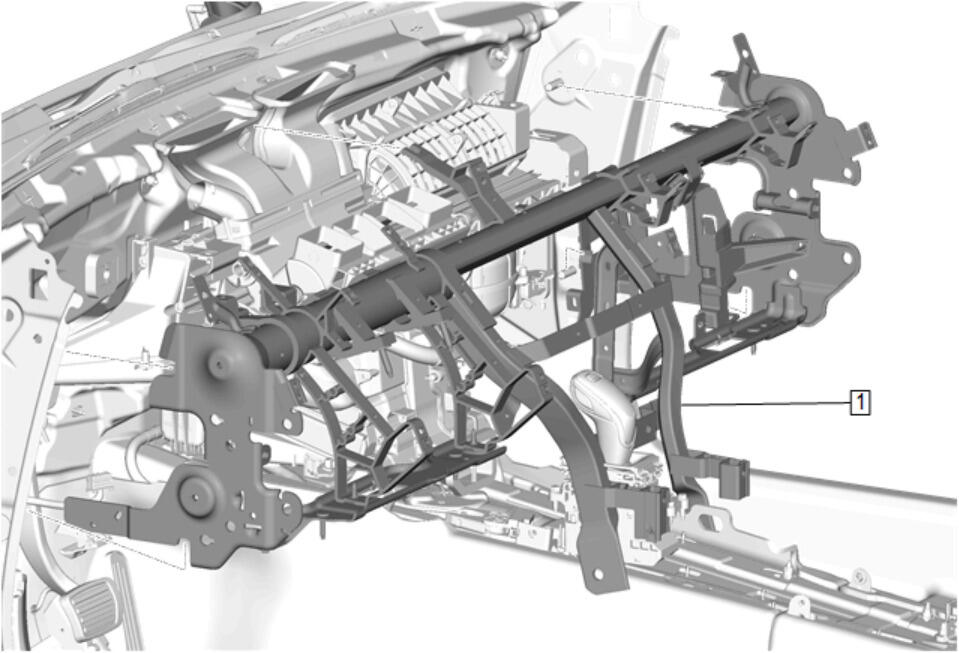

With the aid of an assistant, position the instrument panel tie bar assembly into the vehicle. (1)
Install the instrument panel wiring harness to the position noted in the removal procedure.
Connect and position the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

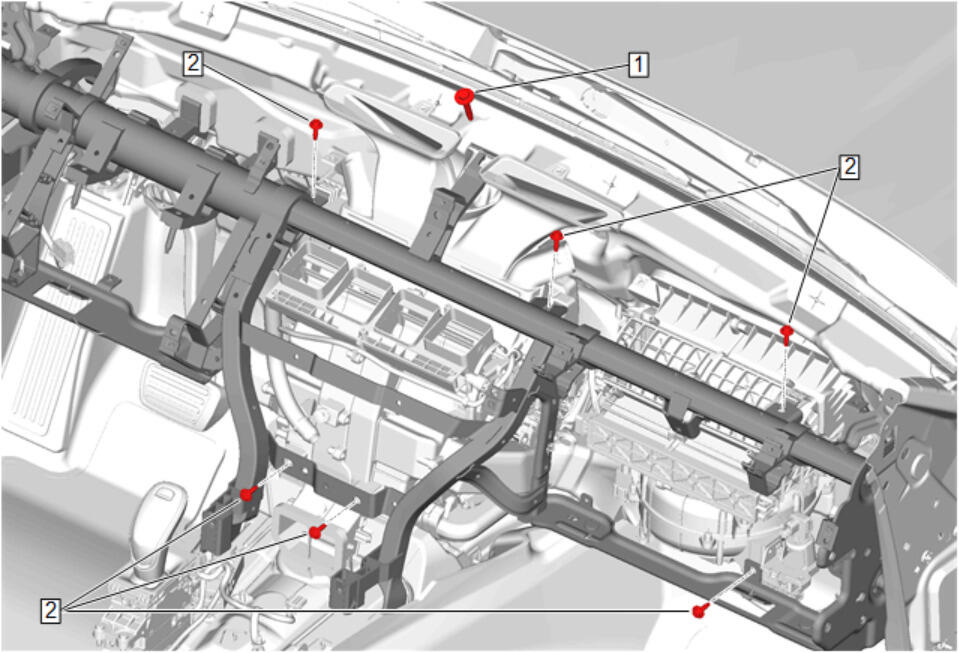

Instrument Panel Tie Bar Bolt (1) - Install and tighten 22 N.m (16 lb ft)
Heater and Air Conditioning Evaporator and Blower Module Bolt (2) - Install and tighten [ 6x ] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

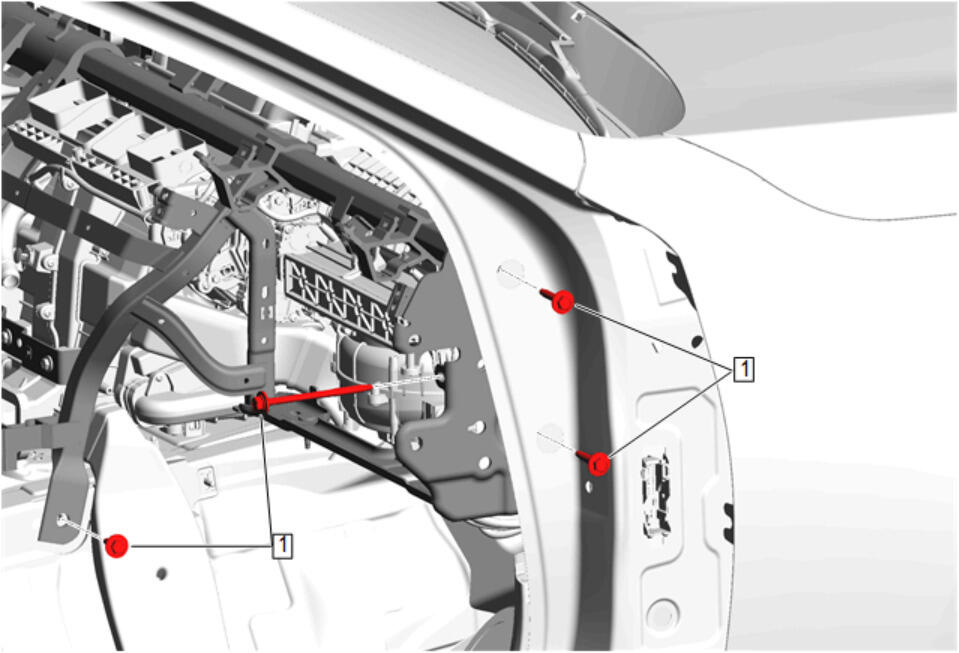

Instrument Panel Tie Bar Bolt (1) - Install and tighten [ 4x ] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

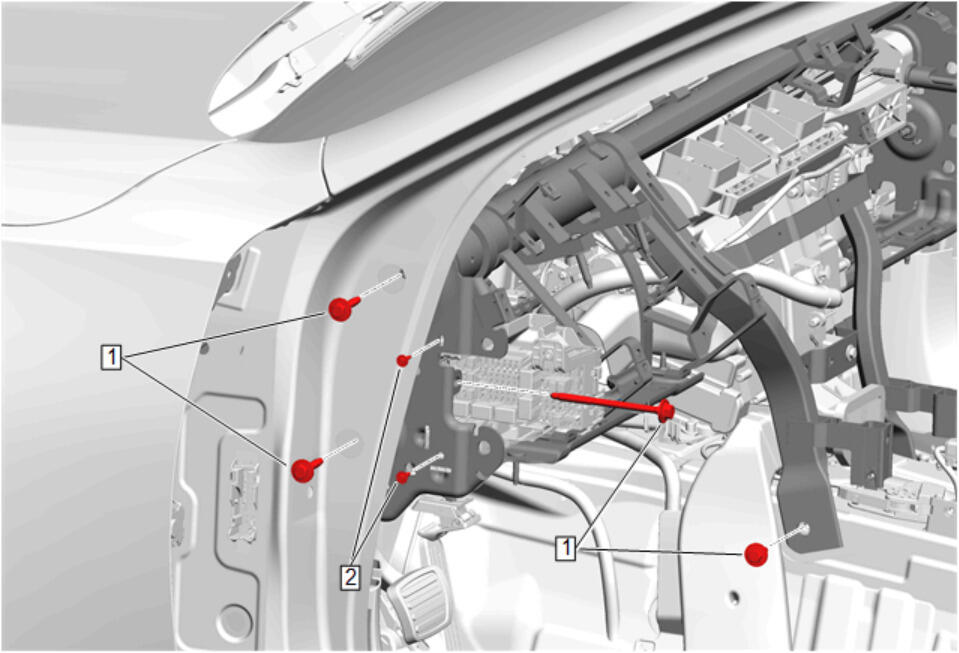

Instrument Panel Tie Bar Bolt (1) - Install and tighten [ 4x ] 22 N.m (16 lb ft)
Front Compartment Fuse Block Bolt (2) - Install and tighten [ 2x ] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

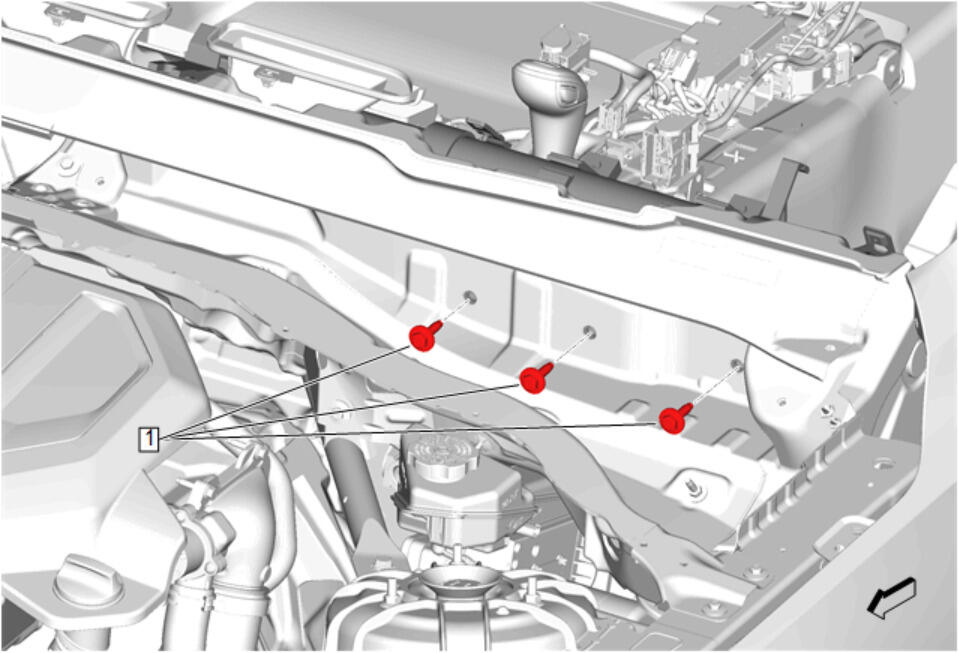

Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten [ 3x ] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Windshield Wiper Transmission (2) - Install - Windshield Wiper Transmission Replacement
Courtesy of GENERAL MOTORS COMPANY

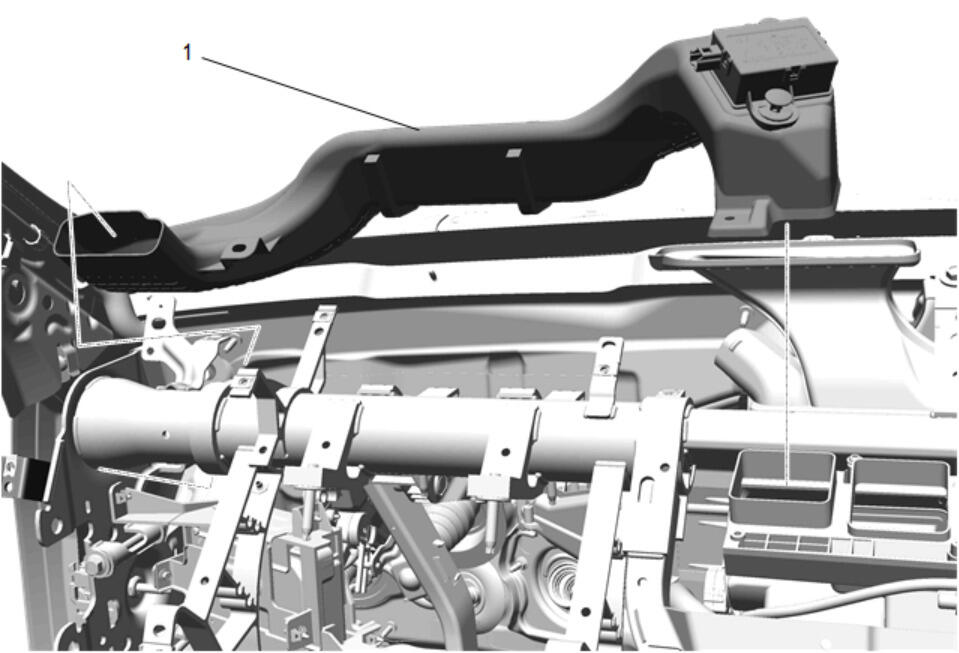

Instrument Panel Outer Air Outlet Inner Duct - Right Side (1) - Install - Instrument Panel Outer Air Outlet Inner Duct Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

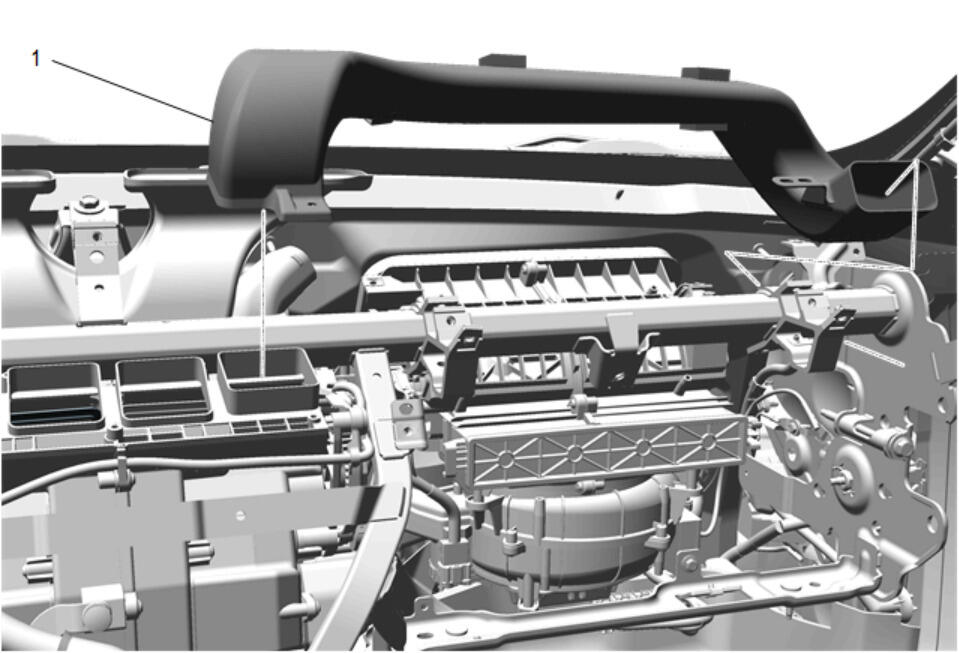

Instrument Panel Outer Air Outlet Inner Duct - Left Side (1) - Install - Instrument Panel Outer Air Outlet Inner Duct Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

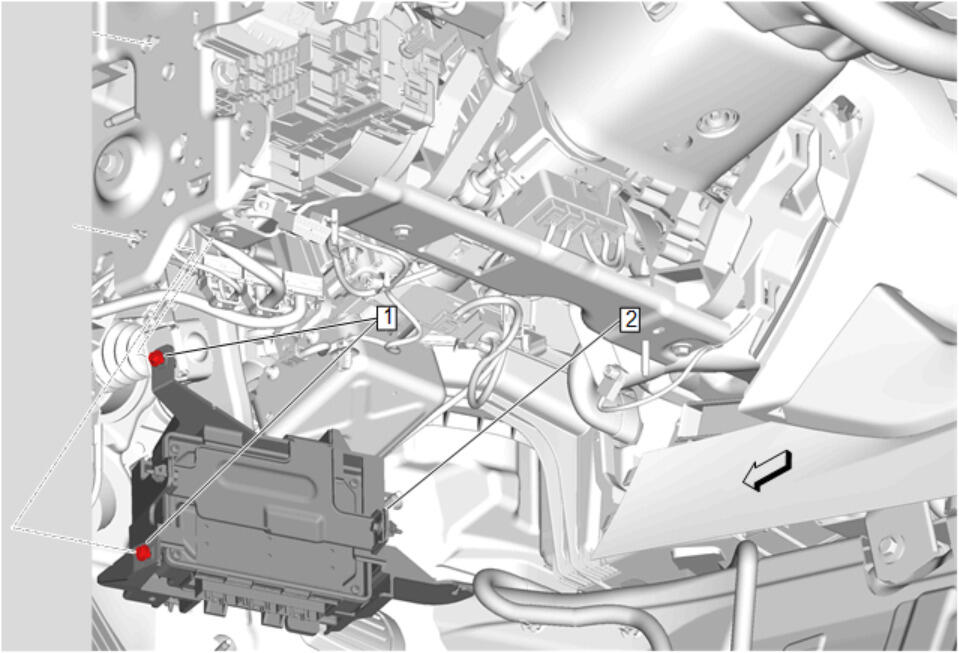

Serial Data Gateway Bracket (2) - Install - Serial Data Gateway Bracket Replacement
