Front Floor Console Front Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

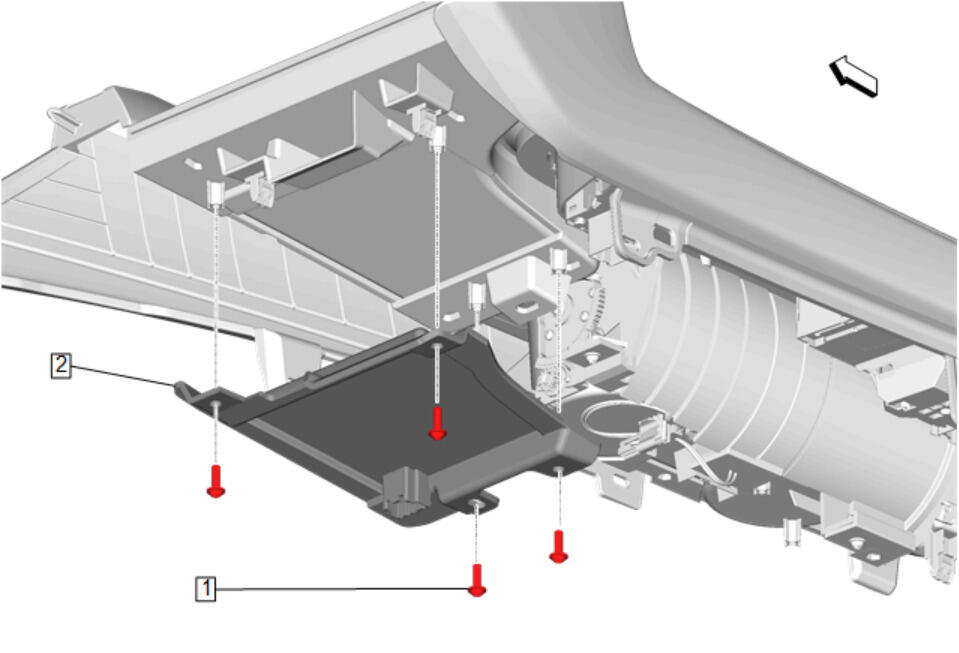

Callout	Component Name
Preliminary Procedure  Front Floor Console Trim Plate Replacement
1	Front Floor Console Trim Plate Bolt [ 4x ] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Floor Console Front Cover
