Air Conditioning Refrigerant Pressure Sensor Replacement - High Pressure (LSY)

Courtesy of GENERAL MOTORS COMPANY

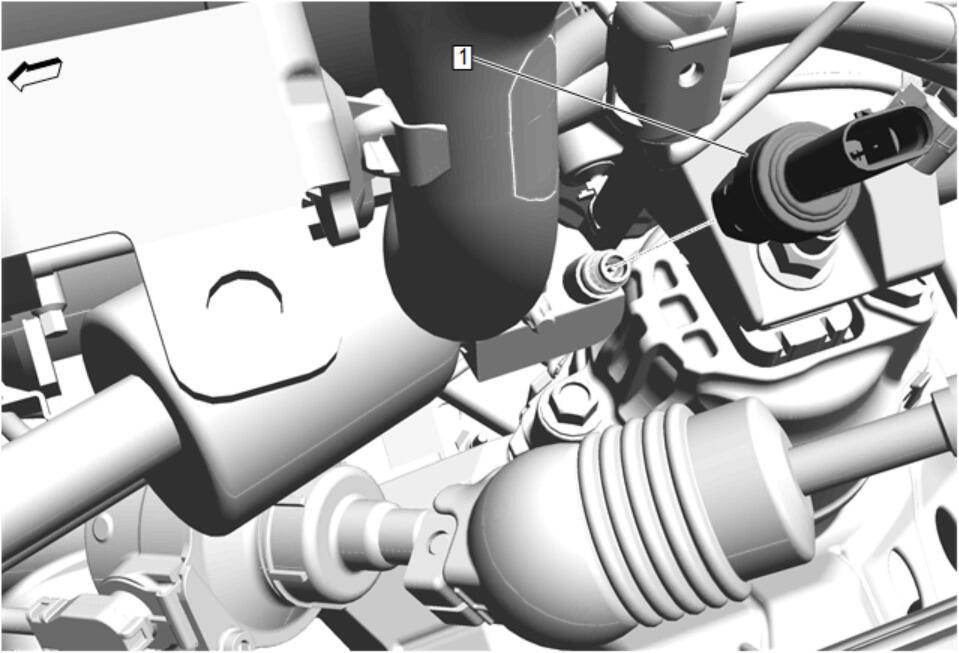

Callout	Component Name
Preliminary Procedure Unfasten the radiator inlet hose clip, and position the radiator inlet hose out of the way.
1	Air Conditioning Refrigerant Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector. Replace the O-ring seal. Position the radiator inlet hose back to original routing, and fasten the radiator inlet hose clip. Tighten 7.5 N.m (66 lb/in)

Callout

Component Name

Preliminary Procedure
Unfasten the radiator inlet hose clip, and position the radiator inlet hose out of the way.

Air Conditioning Refrigerant Pressure Sensor

CAUTION:

Procedure

Disconnect the electrical connector.
Replace the O-ring seal.
Position the radiator inlet hose back to original routing, and fasten the radiator inlet hose clip.

Tighten
7.5 N.m (66 lb/in)
