Throttle Body Assembly Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

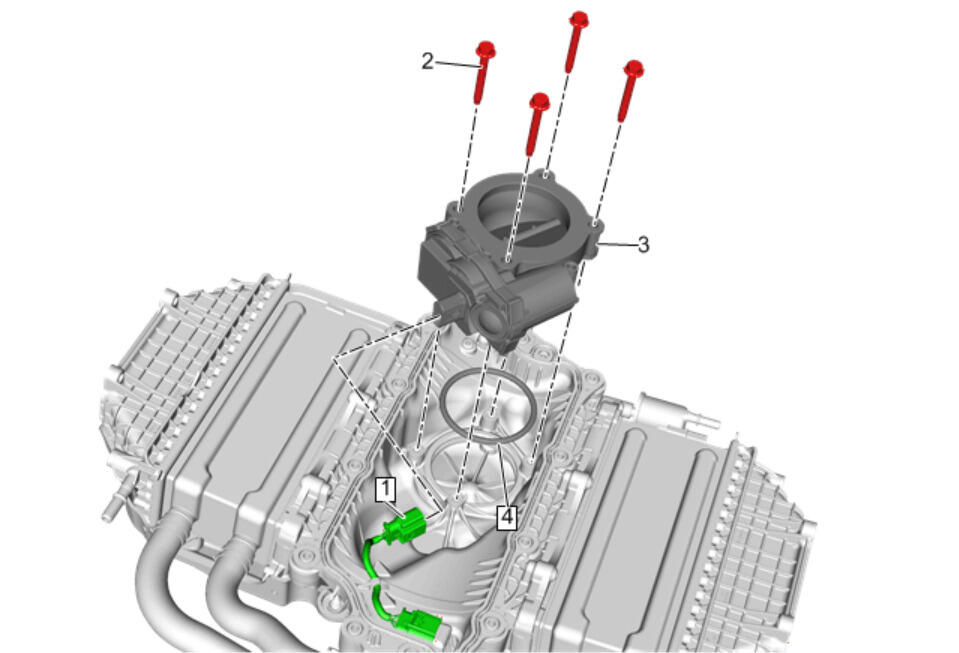

Callout	Component Name
Preliminary Procedure Charge Air Cooler Cover Replacement
1	Electrical Connector
2	Throttle Body Bolt [ 4x ] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb/in)
3	Throttle Body Procedure Perform the intake system learned values reset. Intake System Learned Values Reset Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset NOTE: Clean any debris prior to removing the throttle body. Cover any openings to prevent debris from entering into the intake manifold.
4	Throttle Body Gasket Procedure Install a NEW throttle body gasket.
